Looking at this drawing set as a whole, it’s clear that this is a fairly large-scale residential design, organized more like a family villa. The layout feels practical, prioritizing long-term usability rather than purely visual impact.

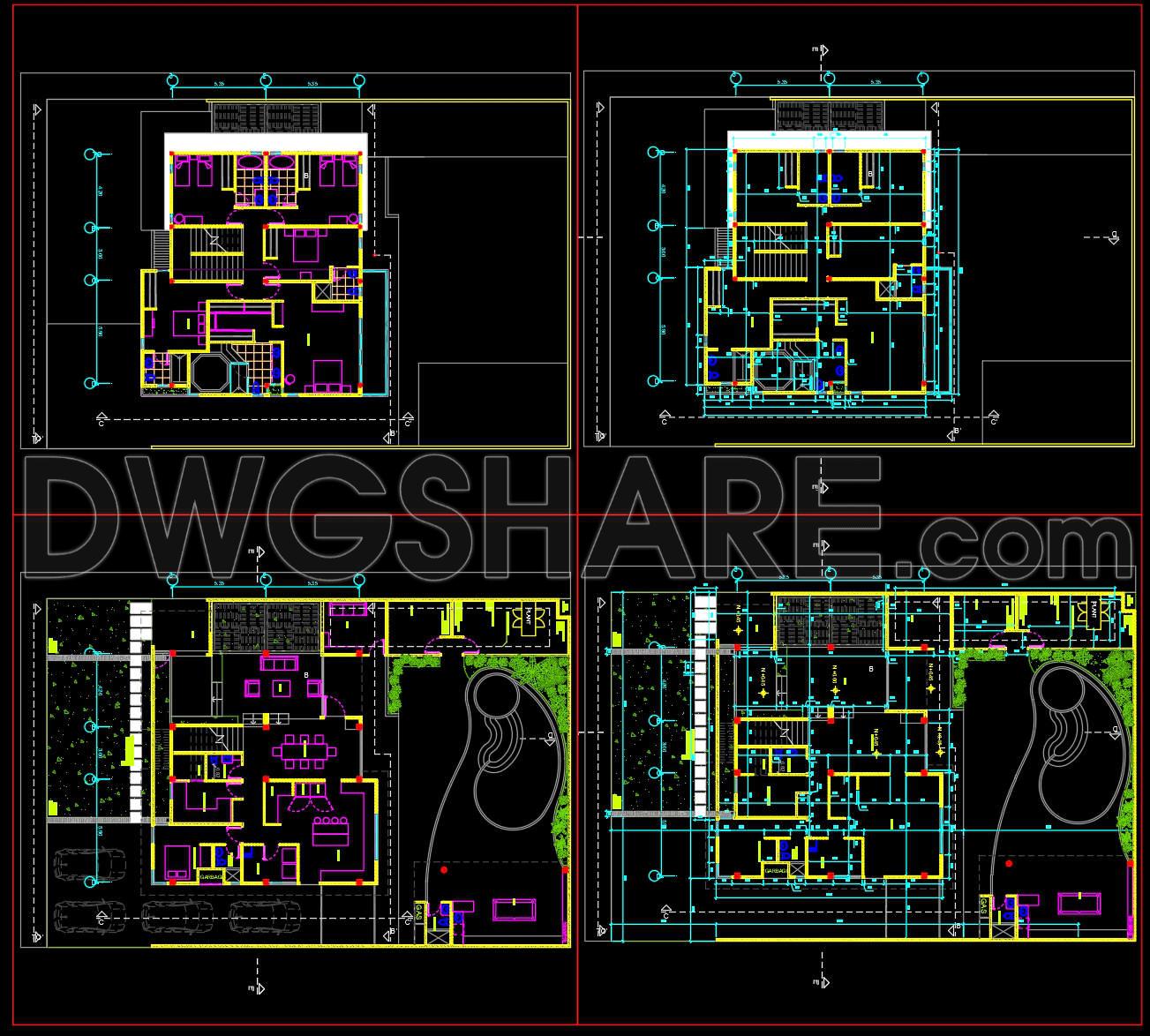

The floor plans are clean and easy to follow. The ground floor functions as the main living area, with the living room placed centrally and directly connected to the dining and kitchen spaces at the rear. One detail that stands out is how the garden and pool are positioned to one side of the plot instead of being pushed to the edges, as often seen in typical townhouses. This creates breathing space for the house and allows key areas like the living and dining rooms to benefit from better light and views.

The vertical circulation core—mainly the staircase—is placed near the center, dividing the layout into clear functional zones. Bedrooms are distributed across the upper floors with a relatively high density, suitable for larger families. Despite the number of rooms, private and shared spaces are reasonably well separated.

From a technical standpoint, the drawings are quite complete. Architectural layouts, structural plans, and MEP systems are all clearly presented. Grid lines, dimensions, and elevation markers are detailed enough for construction without requiring significant revisions.

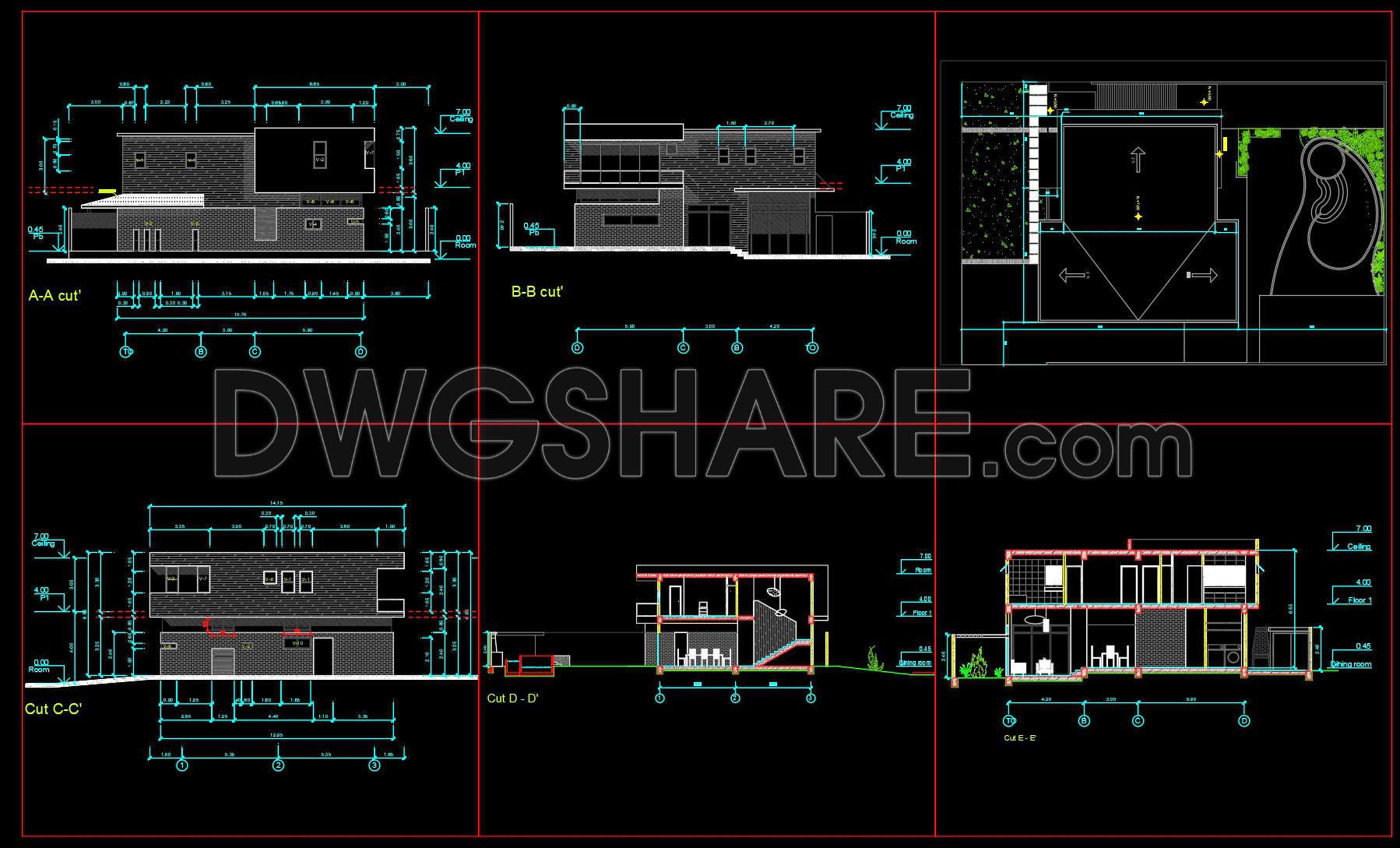

The sectional drawings (A-A, B-B, C-C, D-D) show comfortable floor-to-floor heights, allowing for ceiling finishes and service systems above. Structural elements such as slabs and beams are handled in a straightforward, reliable manner—nothing overly complex, but solid.

The electrical and lighting plans are particularly well developed. Symbols for switches, outlets, lighting fixtures, and data points are clearly defined with a comprehensive legend. Cable routing and equipment placement are logically arranged, making on-site implementation much easier.

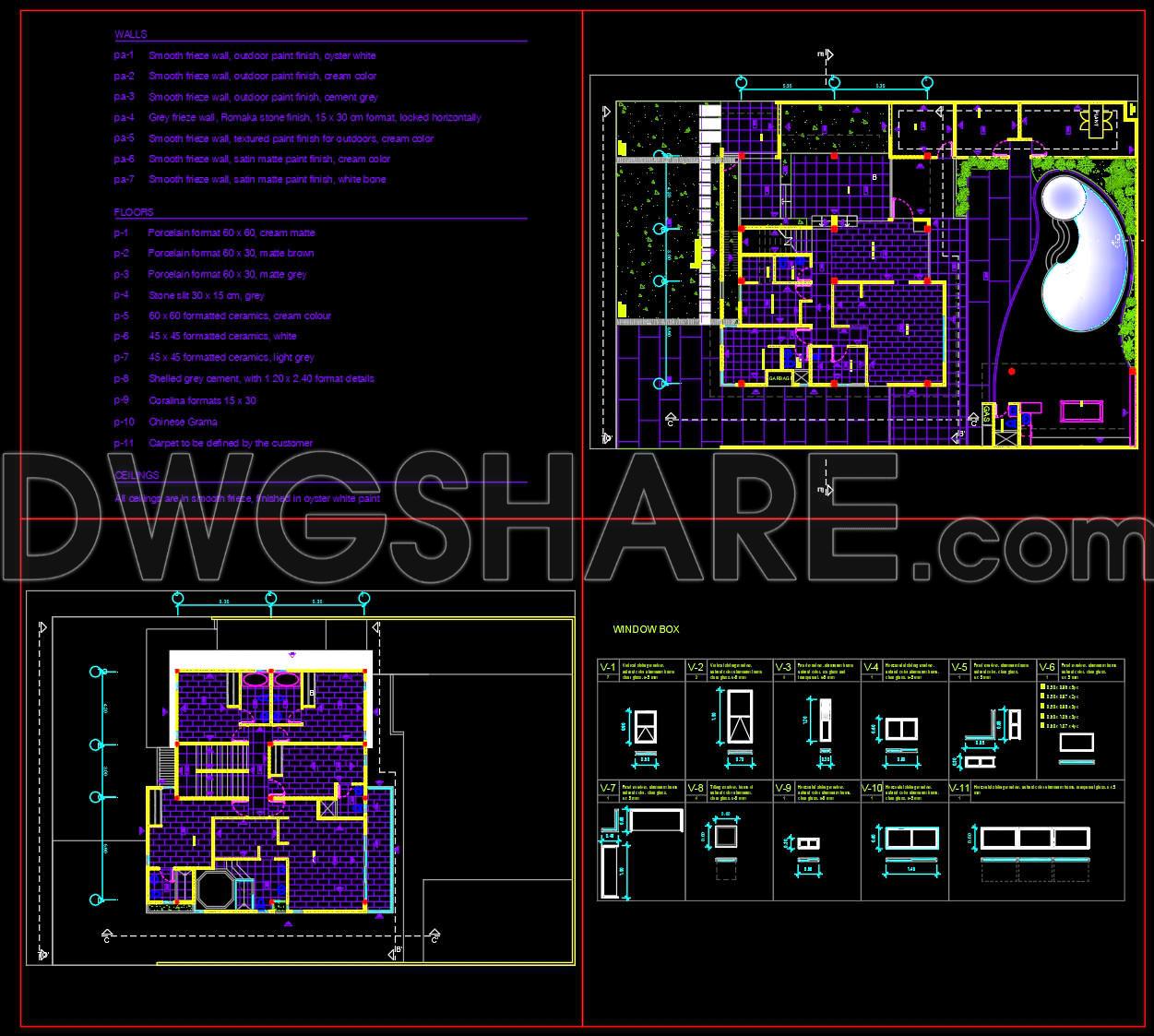

There is also a finishing materials schedule covering walls, floors, and ceilings. The approach leans toward a modern, cost-effective palette—porcelain tiles, painted walls, and gypsum ceilings—practical choices that are easy to execute.

Window details are organized into a separate schedule, which helps manage dimensions and types efficiently. This is a small but important detail in a well-prepared construction set.

What stands out most about this project is its practicality. It doesn’t try too hard to impress with excessive detailing, but it delivers everything needed for real-world construction. For anyone looking for a solid reference—especially for a multi-bedroom house—this is a useful and realistic example.

That said, from a design perspective, it’s not a highly optimized solution in terms of aesthetics or natural ventilation. Some areas still rely on mechanical systems, and daylighting could be improved. However, the clarity and usability of the layout make it a strong, buildable design.

In short, this is a working set of drawings. Not flashy, not overly complex—but reliable. And in construction, that often matters more than anything else.
