415. Free Download Residential Architectural CAD Details Balconies
These CAD drawings provide architectural details for two different types of residential balconies.

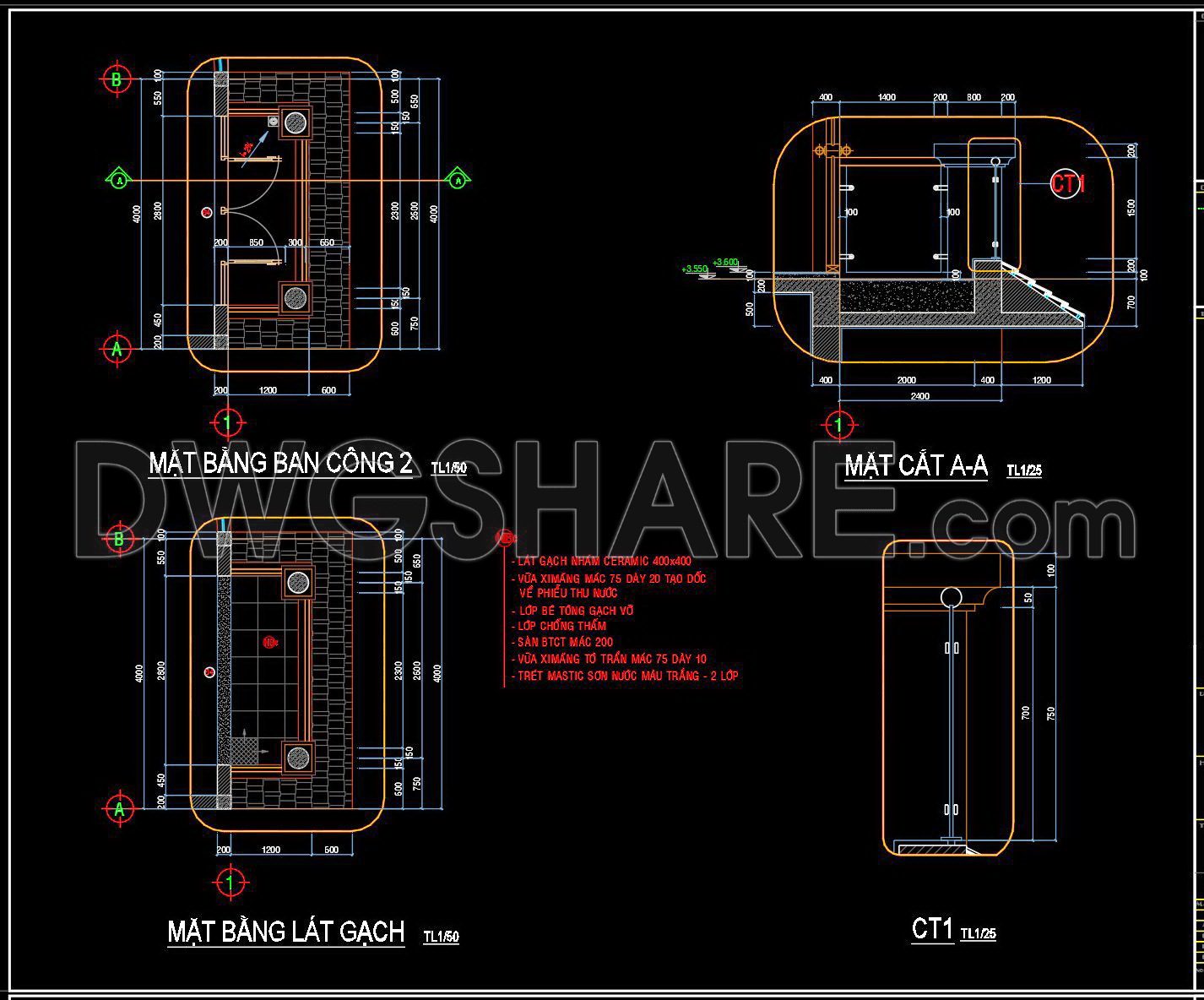

Balcony 2:
- MẶT BẰNG BAN CÔNG 2 (BALCONY 2 PLAN – Scale 1:50): Presents a rectangular layout with dimensions of 1500x2900mm, including a floor drainage system.
- MẶT CẮT A-A (SECTION A-A – Scale 1:25): Details the floor structure, comprising a 400x400mm ceramic tile layer, a sloping mortar layer, a crushed brick concrete layer, a waterproofing layer, a leveling mortar layer, and two layers of white mastic paint. The railing height is approximately 1000mm.
- MẶT BẰNG LÁT GẠCH (TILE LAYOUT PLAN – Scale 1:50): Illustrates the tile arrangement for the balcony floor.
- CT1 (DETAIL 1 – Scale 1:25): Details the balcony column/edge.

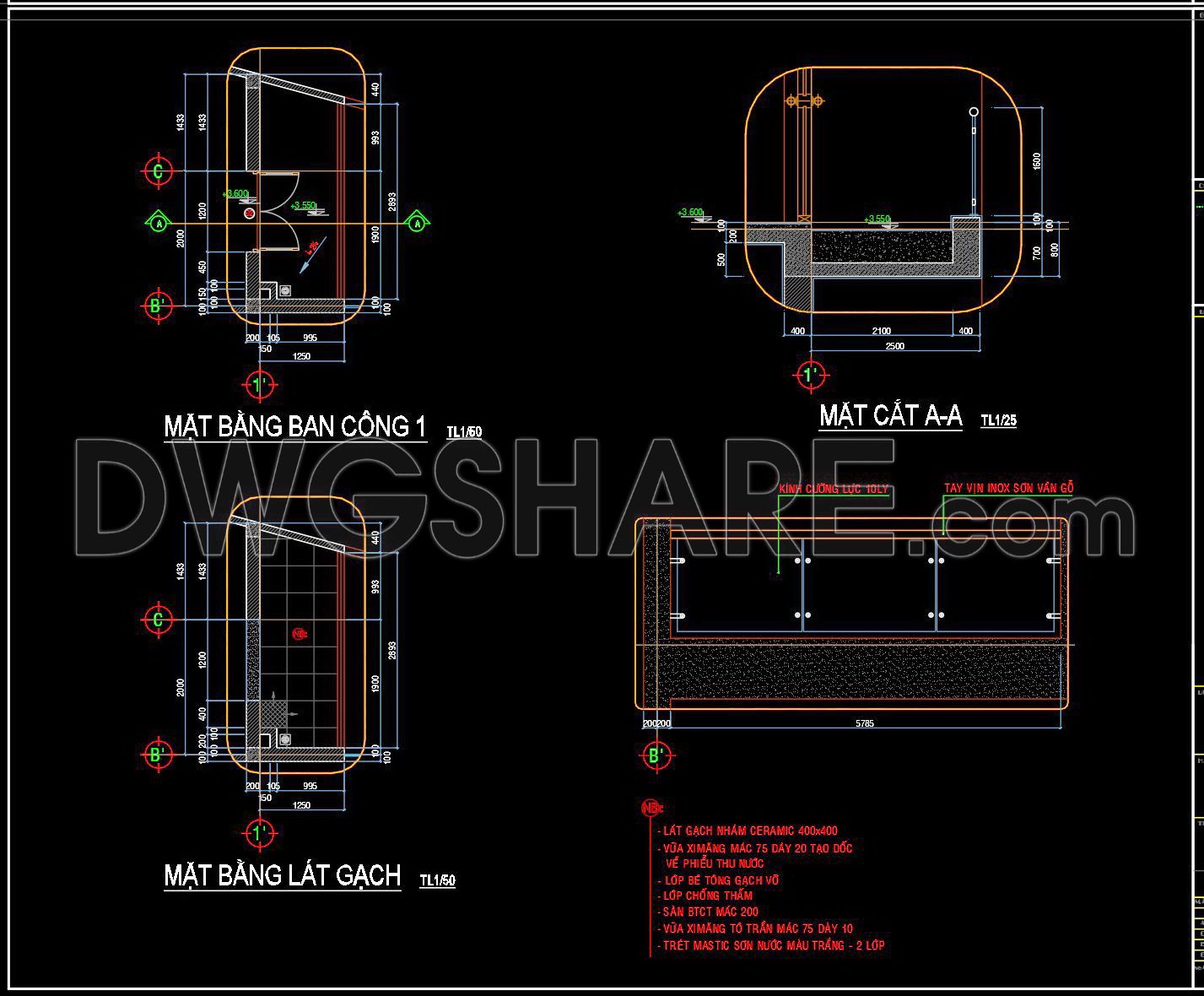

Balcony 1:
- MẶT BẰNG BAN CÔNG 1 (BALCONY 1 PLAN – Scale 1:50): Features a different shape with dimensions of 1750x2950mm, including space for a doorway.
- MẶT CẮT A-A (SECTION A-A – Scale 1:25): The floor structure details are similar to Balcony 2, but the railing uses 10mm tempered glass and a wood-grain painted stainless steel handrail, with a railing height of approximately 1000mm.
- MẶT BẰNG LÁT GẠCH (TILE LAYOUT PLAN – Scale 1:50): Details the tile layout for this balcony.
Overall, the drawings provide comprehensive technical information, detailed dimensions, and material layers for both the floor and railings, making them highly useful for balcony design and construction in residential architecture.
In addition, you can download many more free detailed architectural CAD drawings here.
- File format: .DWG
- Size: 257 KB
- Source: Collect
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
