208. Free Download CNC Partition Panel CAD Drawing – Detailed Design with Dimensions

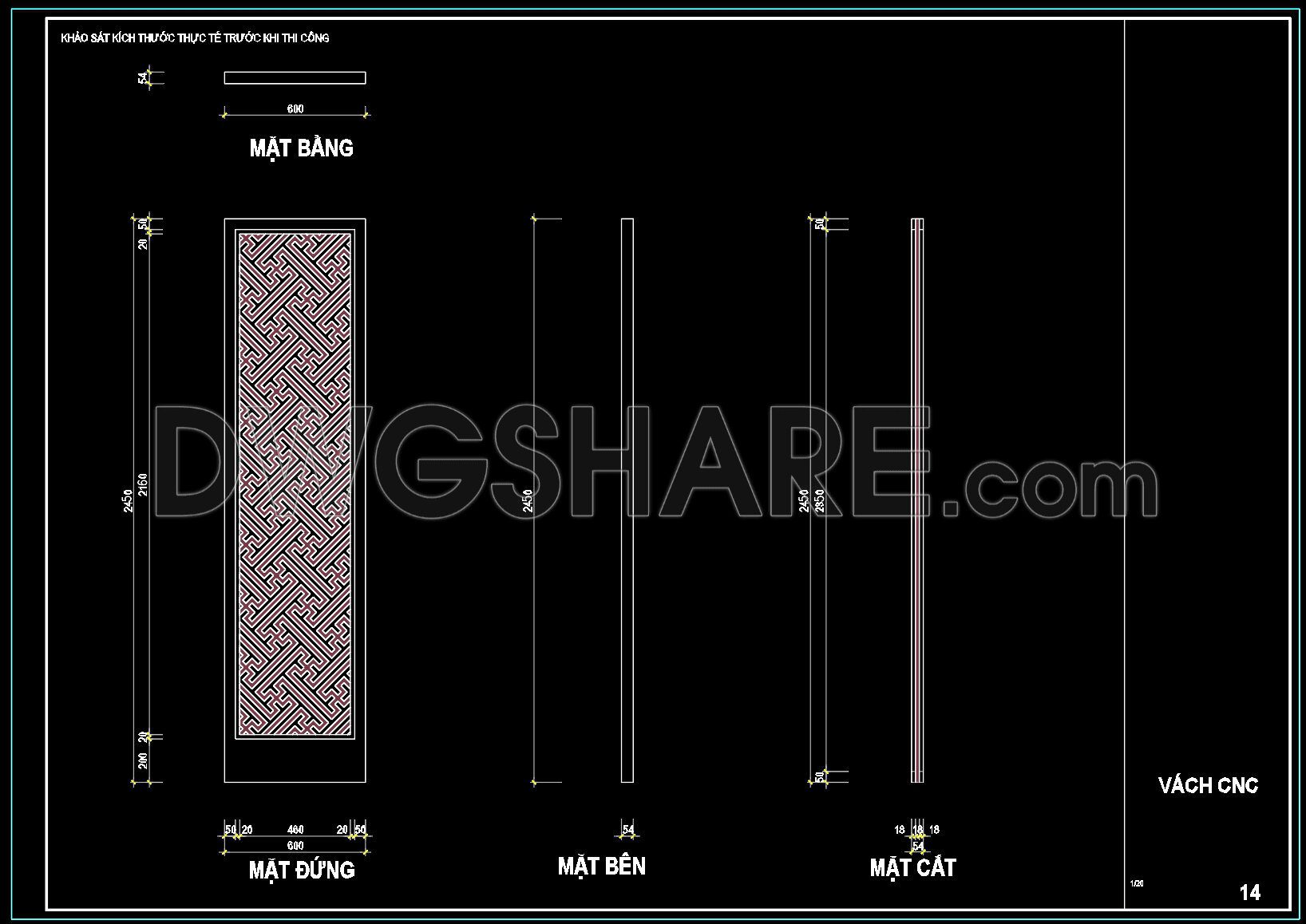

This CAD drawing illustrates the detailed design of a decorative CNC partition panel, presented with multiple views including plan, elevation, side, and section.

Plan View: The partition has a total width of 600mm with a geometric CNC pattern, evenly distributed for aesthetic balance.
Elevation View: The overall height reaches 2540mm, with a surrounding frame thickness of 20mm, ensuring both durability and visual appeal.
Side View: Displays the total depth of 54mm.
Section View: Highlights the structural layers, each 18mm thick, providing strength and stability for installation.

The drawing provides precise measurements for accurate surveying and construction, ensuring the final product matches the design requirements. This CNC partition serves not only as a functional space divider but also as an elegant interior decoration element, adding style and sophistication to modern spaces.

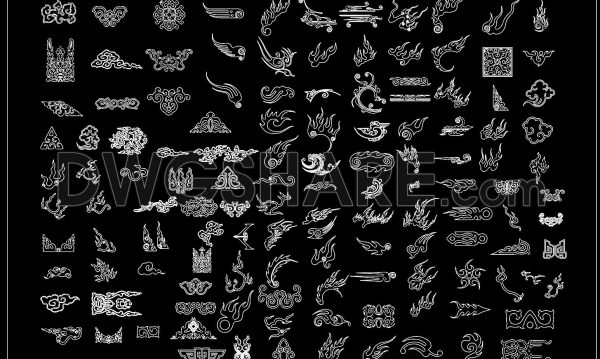

I also suggest downloading Free decorative pattern Cad Blocks download.

File format: .DWG
Size: 236 KB
Source: Collect
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
