307. CAD drawings for detailed electrical designs for a 7-story townhouse

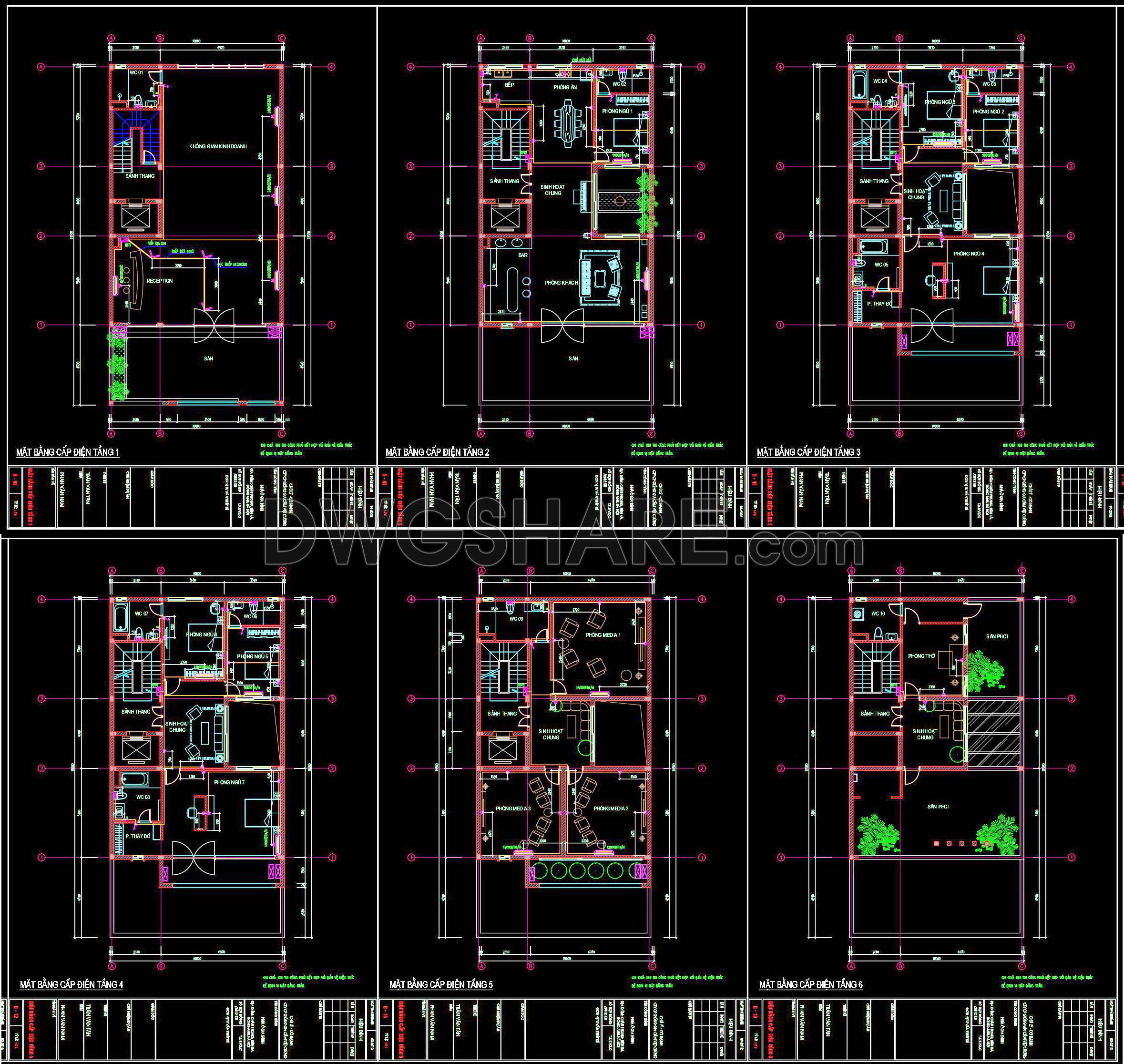

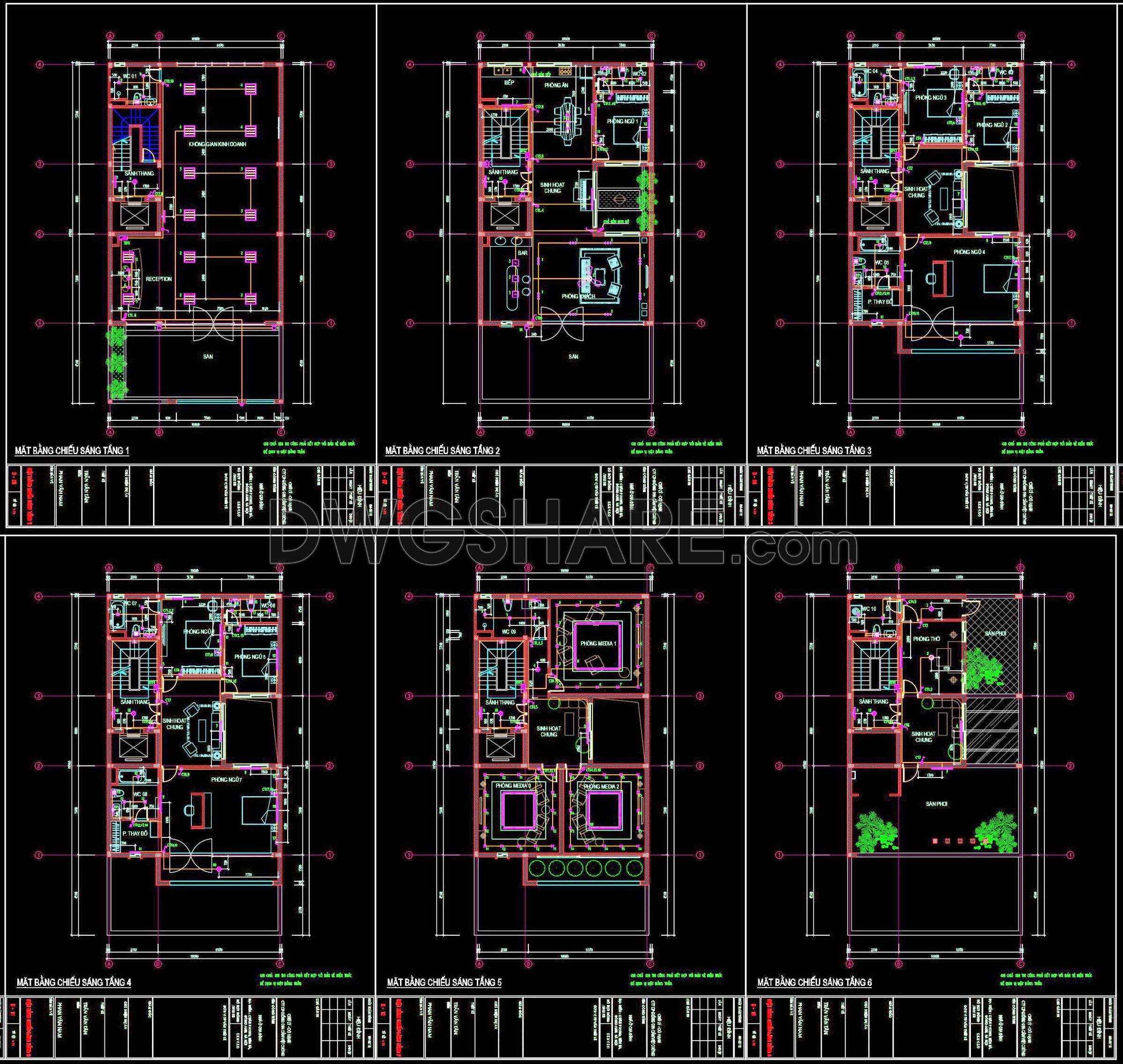

Explore the intricacies of detailed electrical designs for a 7-story townhouse with these comprehensive CAD drawings. The presented files include multiple views, offering meticulous insights into the architectural planning process. These drawings serve several critical functions:
- Electric layouts
- Fixture placements
- Wiring diagrams
Each layer is precisely dimensioned, optimizing space utilization and ensuring compliance with construction standards. The clarity of these CAD files enhances accuracy, allowing architects and designers to visualize intricate components effortlessly. Additionally, the platform’s user-friendly interface enables easy editing, making modifications swift and efficient.
The use of these drawings benefits several stakeholders:
- Architects and engineers benefit from precise blueprints that streamline the drafting process.
- Interior designers enhance layout planning, achieving seamless room functionality.
- Construction teams gain from improved coordination, reducing project delays and unforeseen costs.
These high-quality CAD DWG files are available for free download, offering unparalleled support for industry professionals seeking to enhance their projects. Delve into these resources to boost project quality and cost optimization, ensuring superior results with every build.
I also recommend downloading other Mechanical, Electrical CAD drawings for your project reference.
- File format: .DWG
- Size: 1 MB
- Source: DWGshare
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
If you find our work useful, your support would mean a lot and help us grow even better.DONATE
