396. Free Download CAD DWG – Detailed Stairs for Townhouse Design

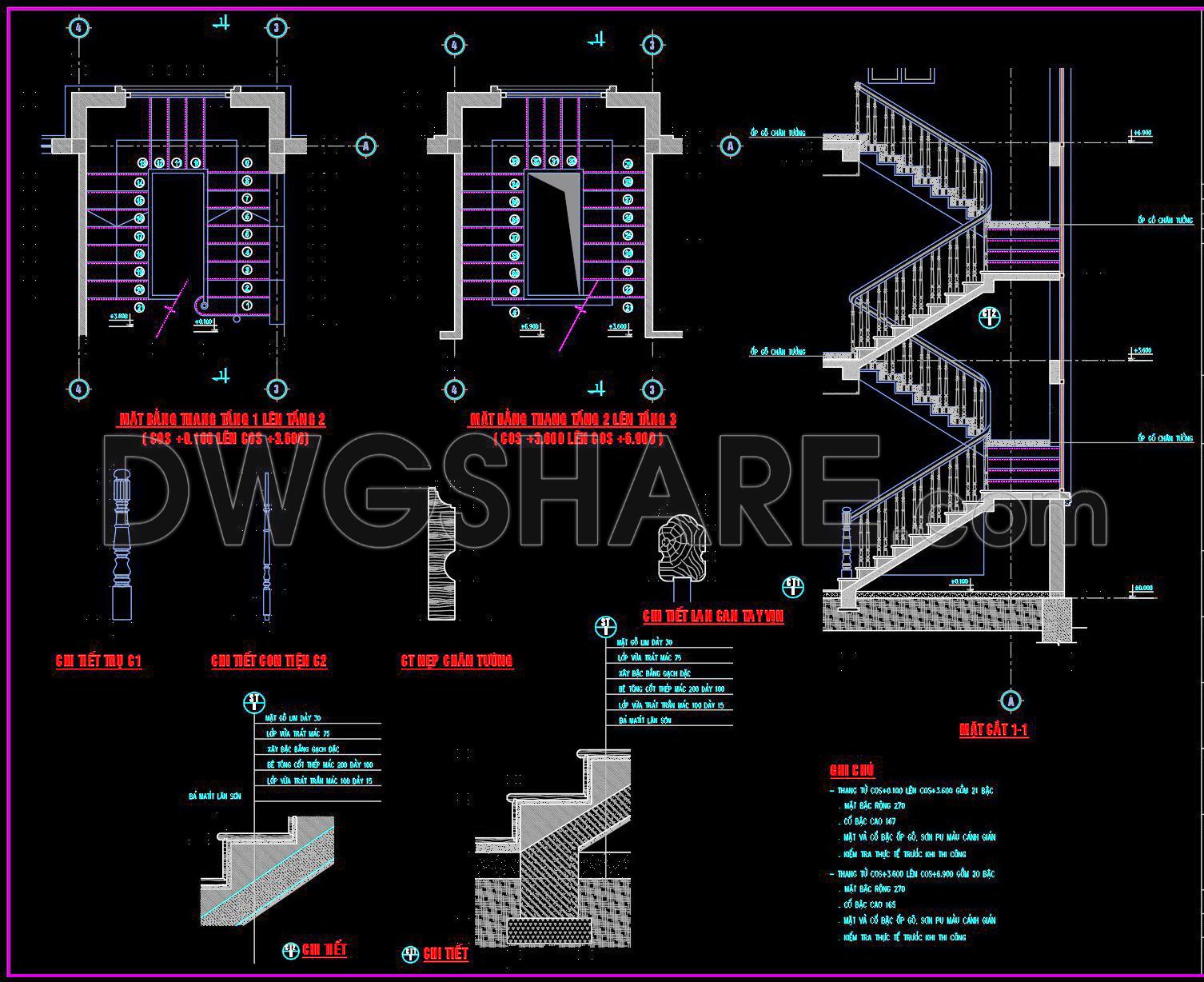

The Detailed Stairs for Townhouse Design CAD DWG drawings offer a comprehensive set of architectural plans that showcase high precision and clarity. These drawings cater to architects, interior designers, and construction teams, providing essential information for the design and construction of staircases within townhouses. The package includes a variety of drawing types that are crucial for an effective design and execution process.

At the forefront, the architectural floor plans illustrate the staircase layout across different levels. These plans highlight the functional flow within a townhouse setting, ensuring that spaces are utilized efficiently. With clear grid lines, dimensions, and level markers, these drawings precisely guide during the design development phase.

The elevations and sections are meticulously detailed, capturing the vertical structure of the staircase. These sections reveal the alignment and height differentials, providing crucial data for construction alignment and helping interior designers to envisage the spatial dynamics. The elevations aid in visualizing the aesthetic elements and are instrumental in client presentations, aligning with design aspirations.

Incorporated within the drawings are construction detail drawings, pivotal for conveying technical specifications. These details cover essential components like railing systems and tread configurations, ensuring that each element is constructed to meet both safety standards and design aesthetics. This level of detail is invaluable during construction, facilitating the accurate assembly of components and ultimately reducing potential errors.

The practicality of these CAD drawings is enhanced by their high technical accuracy, making them ideal for modifications and reuse in AutoCAD. This adaptability leads to improved coordination between design and construction teams, streamlining workflows and optimizing costs.

Available for free download, these detailed drawings serve as an excellent resource for design reference, study, and as a foundational template for developing specific technical drawings. By accessing these free resources, professionals can leverage an accurate base for innovation while maintaining a consistent design quality across projects.

I also recommend downloading other Stairs CAD drawings for your project reference.

File format: .DWG
Size: 402 KB
Source: DWGshare
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process

💡Remark: You’re welcome to contribute resources to DWGshare.com by sending us your PDF, DWG, or ZIP files via email at [email protected]. Thank you — we truly hope that each of your contributions will help build a stronger and more connected CAD community. If you find our work useful, your support would mean a lot and help us grow even better.DONATE
