47. Free CAD Files of Pool Equipment Layout and Section A-A, B-B Details

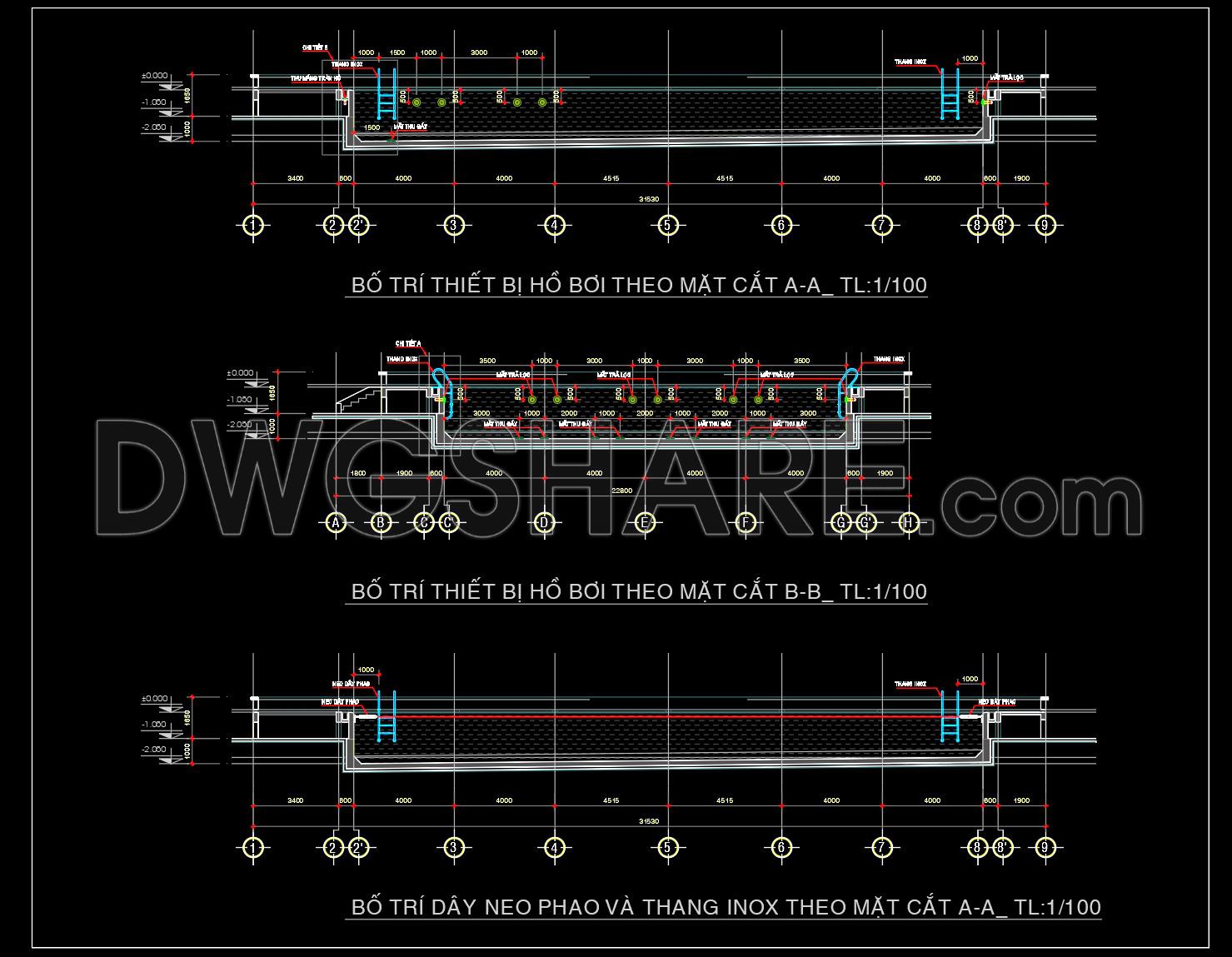

This CAD drawing presents the technical layout of swimming pool equipment based on sectional views A-A and B-B at a 1:100 scale. The drawings clearly show the pool structure, elevation levels (±0.000, -1.000, -2.000), and internal configuration.

Section A-A illustrates the longitudinal structure of the pool, including wall and floor construction, stainless steel ladders at both ends, and pipeline routing along the pool walls. Section B-B provides a more detailed view of the equipment arrangement inside the pool, featuring multiple water inlets, outlets, and drainage points, along with a denser pipe system and step access area.

An additional section highlights the lane divider anchoring system and ladder positions, ensuring functional operation. The drawing also includes dimension grids and axis references, with an overall length of approximately 22,800 mm.

This CAD file is suitable for MEP engineers, architects, and construction teams working on swimming pool design and technical implementation.

I also recommend downloading other Pools CAD drawings for your project reference.

• File format: .DWG
• Size: 125 KB
• Source: DWGshare
• AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process

In addition, you can download the complete set of drawings for this design documentation here.

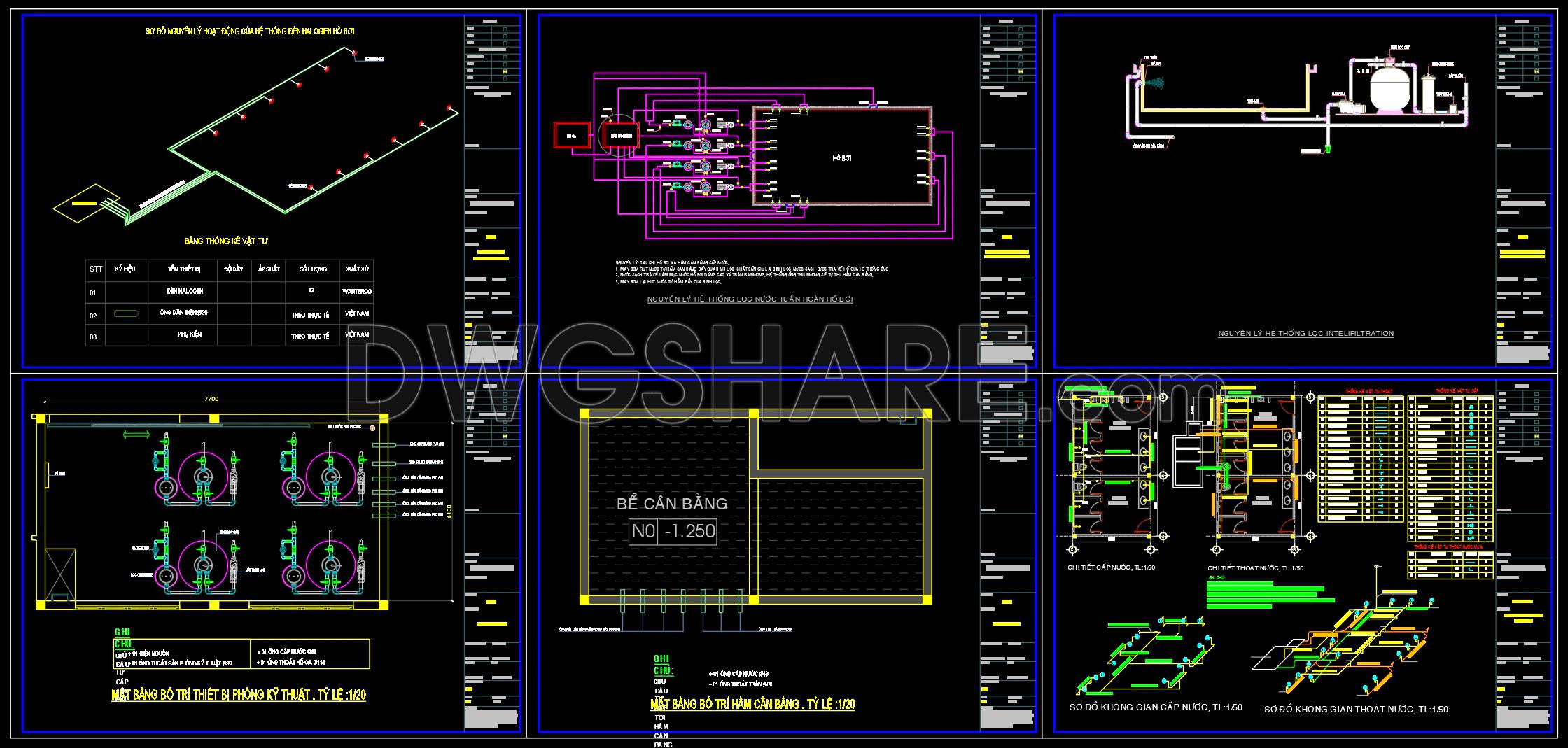

The components included in this design drawing set are:

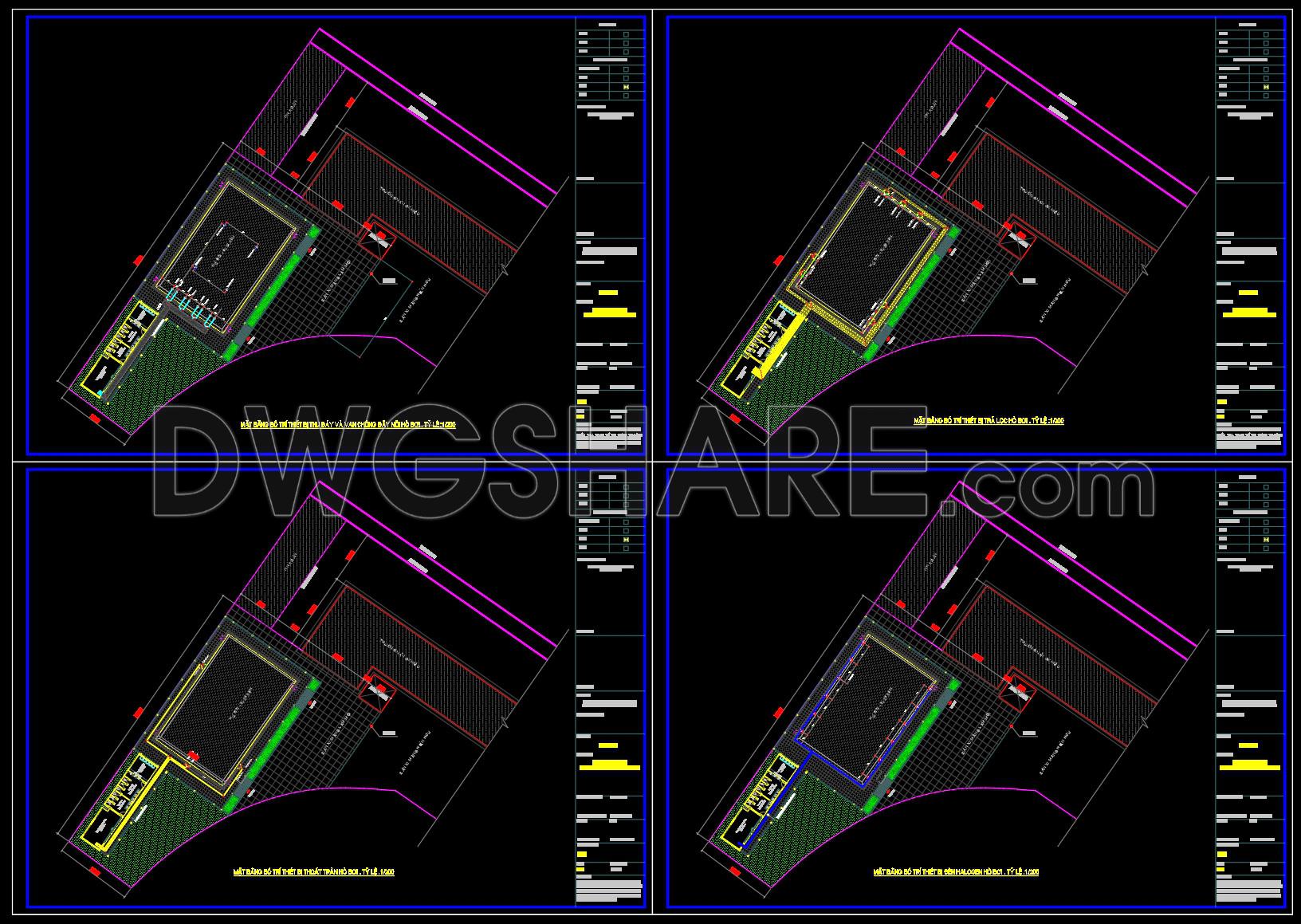

• Floor plan drawings
• Elevation drawings

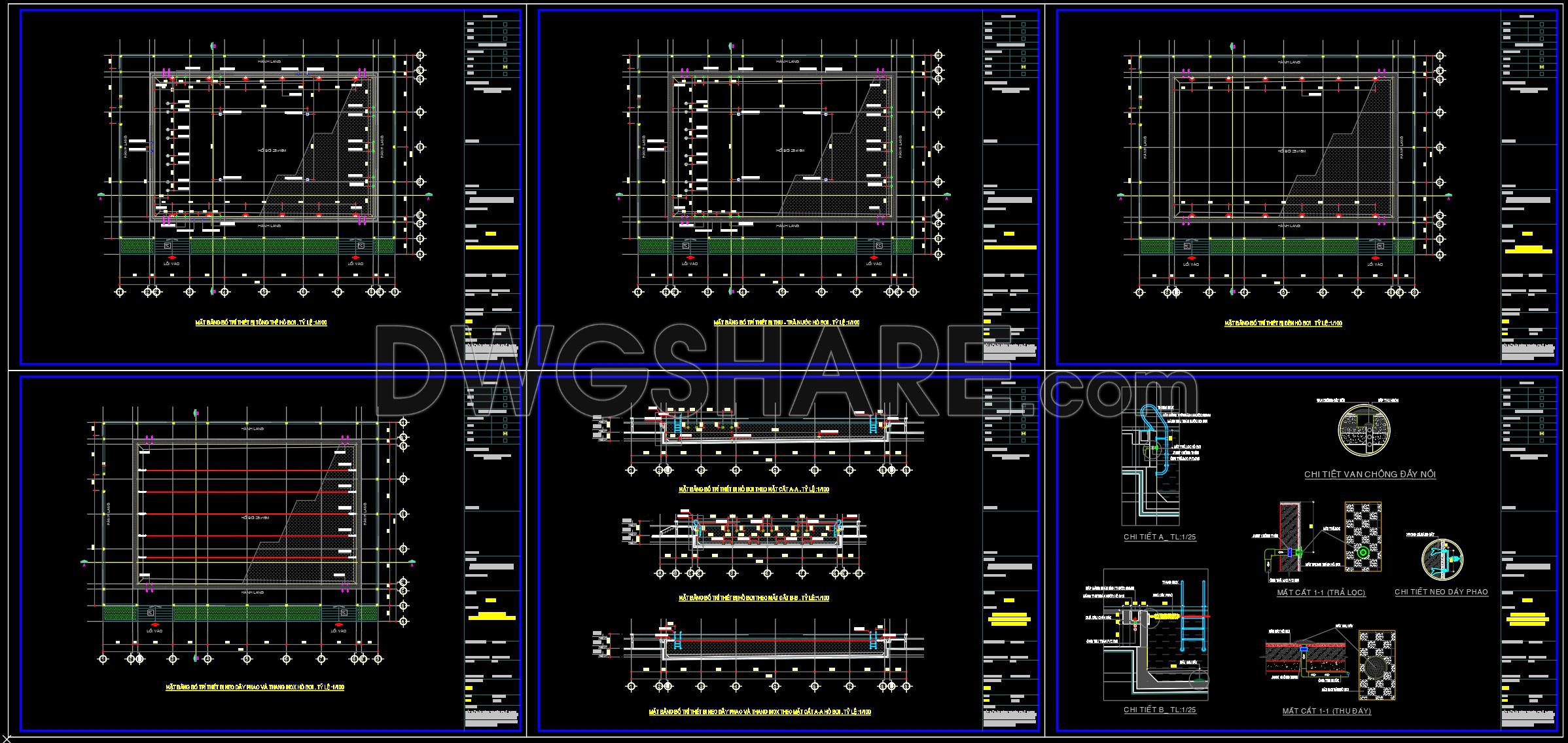

• Section drawings
• Technical Drawings

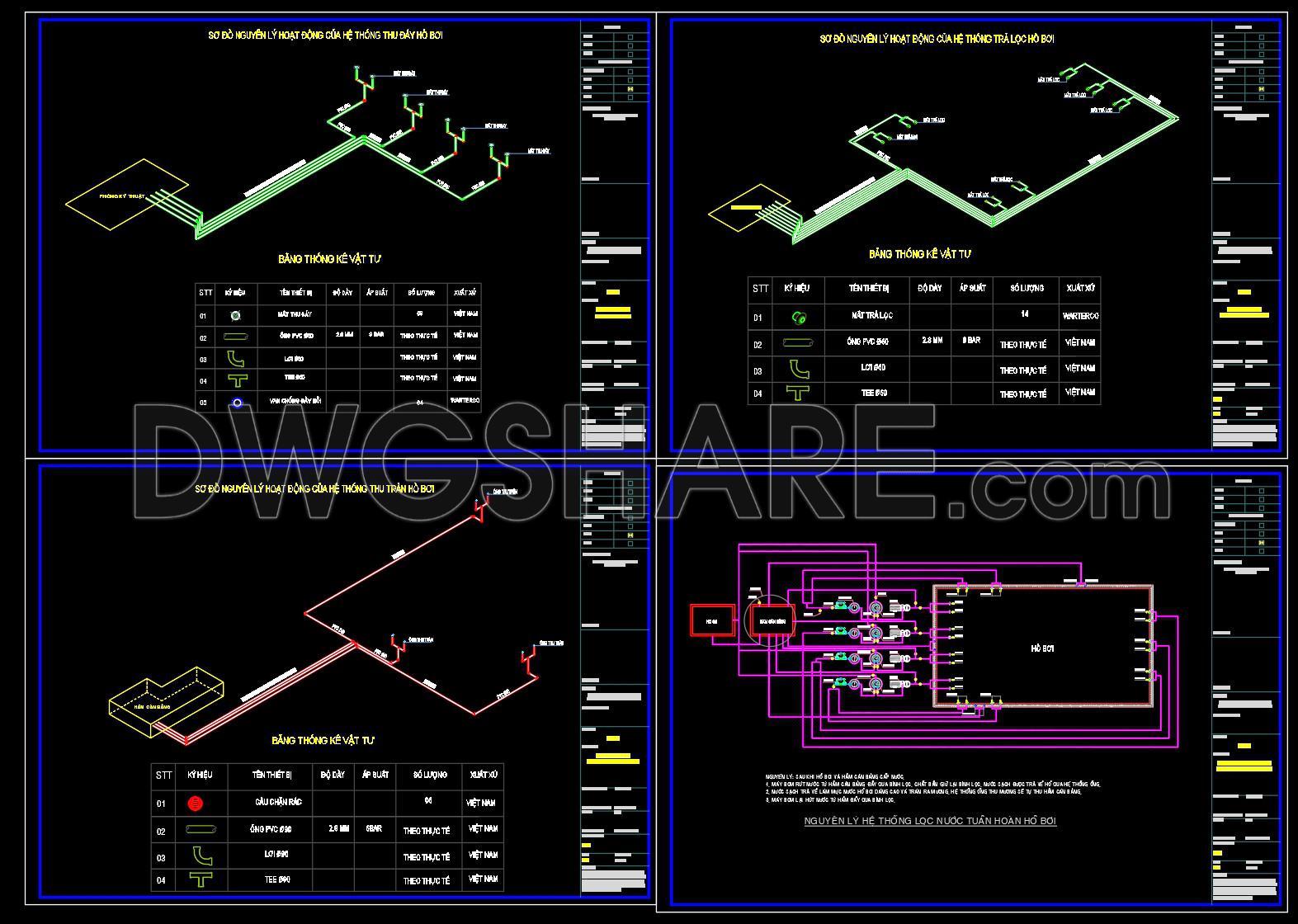

• Plumbing Drawings
