555. Free Download Professional Boardwalk CAD Drawing with Full Structural Details
Are you searching for a complete and professional design package for an outdoor timber project? This article provides a detailed analysis of a professional wooden boardwalk CAD drawing, covering everything from the overall architecture to the foundation structure. This is an invaluable reference for architects, engineers, and contractors planning projects such as public walkways, wooden bridges, or outdoor decks. Explore this complete drawing set now and download the free CAD file to apply to your work.

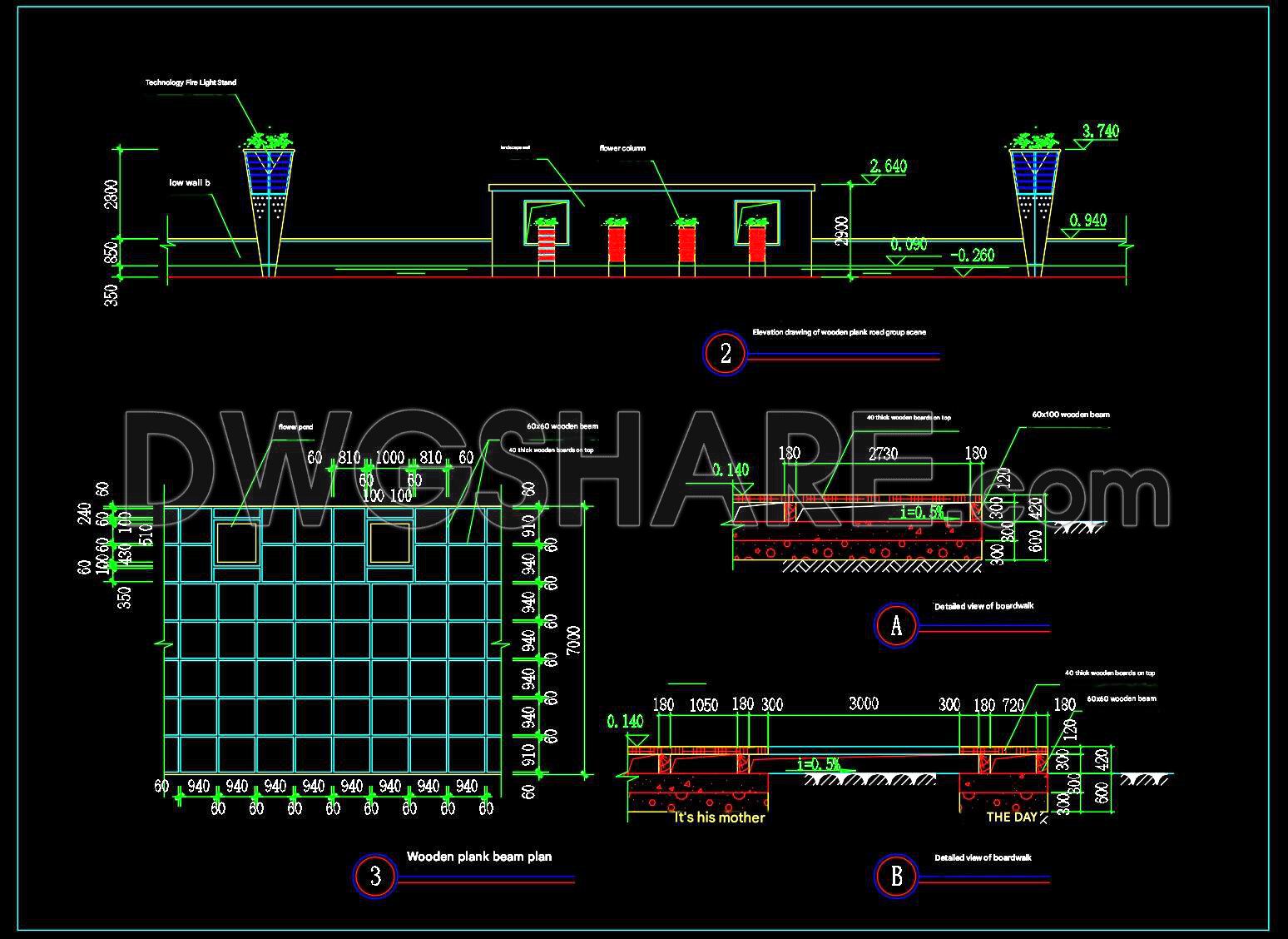

Architecturally, the drawing presents a wooden walkway design over 22 meters in length. The overall plan view clearly shows the layout of the decking planks, the placement of modern stainless steel railings, and strategically positioned landscape lights. The highlight of the design is the harmonious combination of the timber deck with auxiliary details, such as the adjacent feature wall capped with elegant granite, creating a space that is both functional and highly aesthetic for public works or garden landscapes.
The core of this design package lies in the outdoor timber construction details shown in the technical section views. The drawing provides a clear and visual description of the wood deck foundation structure, including all material layers from the bottom up: compacted natural soil, a 100mm thick crushed stone base, solid C20 concrete foundations, and a system of main bearers (100x120mm) and joists (80x100mm) made from treated, anti-corrosion wood. Finally, the surface is finished with a 40mm thick anti-corrosion timber decking. This detailed boardwalk construction method ensures stability, load-bearing capacity, and exceptional durability in harsh outdoor weather conditions.
In summary, this is a complete design package ready for application. Review the details and download the free timber deck CAD file here to serve your project needs.
Additionally, you can browse and download more free CAD drawings of technical construction details here.
- File format: .DWG
- Size: 1.1 MB
- Source: Collect
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
