559. Free Download Detailed CAD Drawings for Glass & Aluminum Clad Roof Construction

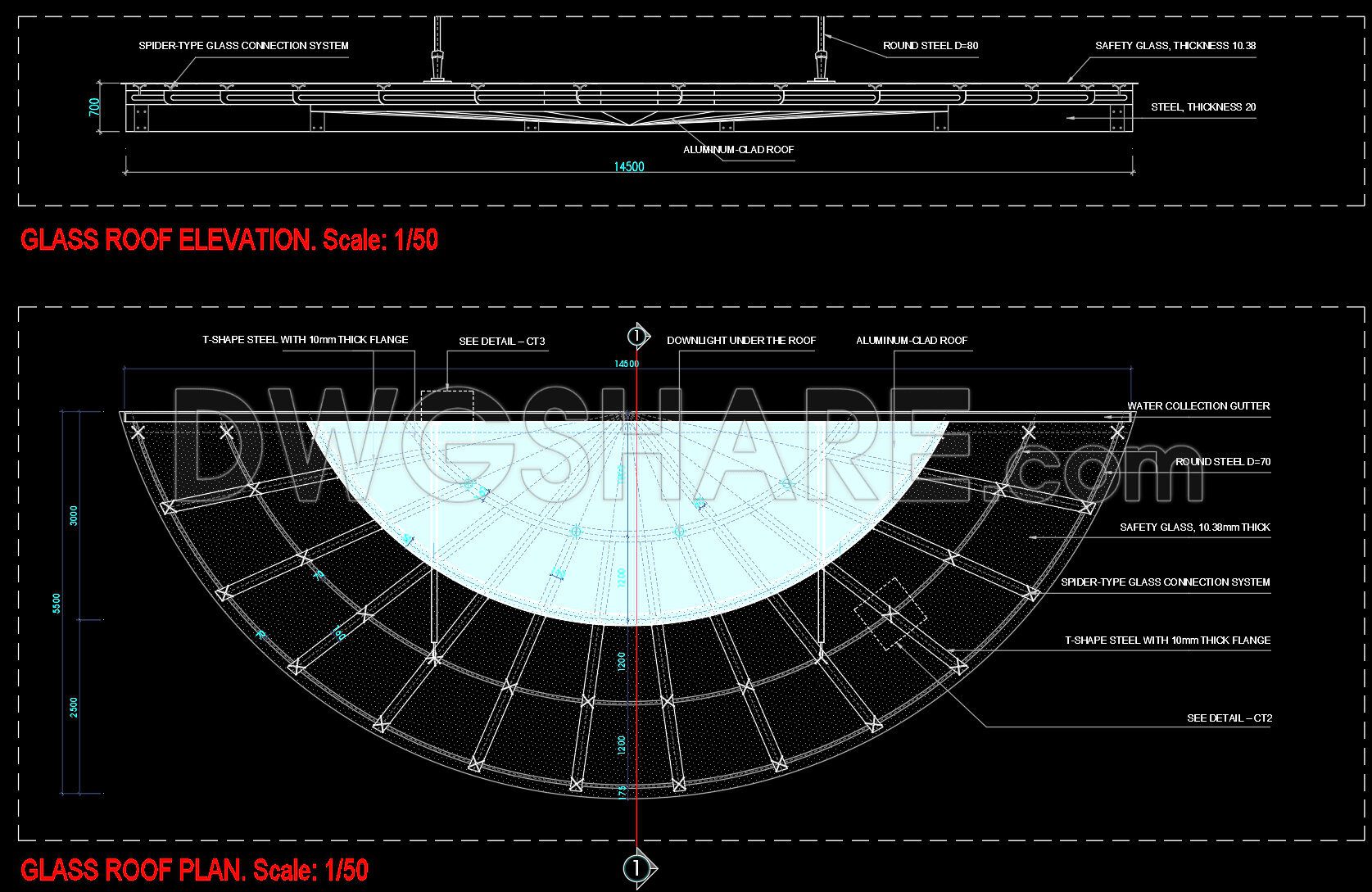

This CAD drawing set provides a comprehensive overview of a glass and aluminum-clad roof structure. The “GLASS ROOF ELEVATION” (1:50 scale) depicts the front view with an overall length of 14500mm, clarifying the “spider-type” glass connection system, D-80 round steel bracing, 10.38mm safety glass, and 20mm thick steel.
The “GLASS ROOF PLAN” (1:50 scale) illustrates the curved roof layout, showing the arrangement of key components such as T-shape steel with 10mm thick flanges, D-70 round steel bracing, water collection gutters, and downlight positions. The maximum width of the curved roof section is 3900mm.
“SECTION 1-1” (1:25 scale) offers a detailed cross-section, revealing the layered construction of the aluminum-clad and glass roofs, a 1:2% slope, along with steel box section frames (60x60mm, 100x50mm) and silicone joints.
Magnified details include “DETAIL 1” (1:5 scale) focusing on the water collection gutter, “DETAIL 2” (1:5 scale) illustrating the “spider-type” glass connection system with D-70 round steel bracing and silicone gaps, and “DETAIL 3” (1:5 scale) showing cushion layers and connecting plates.
In summary, this set of drawings provides all essential technical specifications, materials, and installation details required for the construction of a complex glass and aluminum-clad roof, ensuring structural accuracy and integrity.
In addition, you can download many more free detailed architectural CAD drawings here.
- File format: .DWG
- Size: 257 KB
- Source: Collect
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
