96. Free Mobile Crane CAD Dynamic Block with Working Range Chart

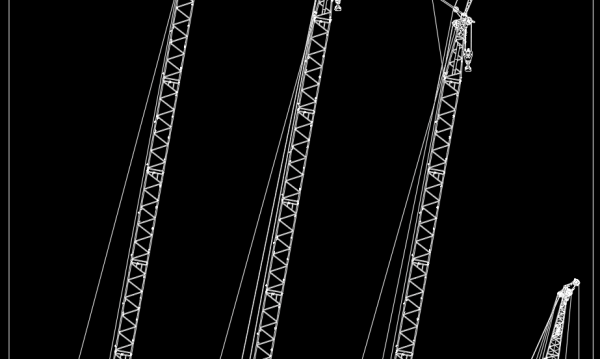

This CAD drawing illustrates a mobile crane with a working range chart, showing the lifting height, radius, and load capacity at different boom angles.

It is designed as a Dynamic Block in AutoCAD, allowing users to:

Adjust the boom length interactively.
Change the boom angle to simulate different working positions.
Display the working range and lifting capacities at various outreach levels.
Easily insert into construction layout drawings for planning and visualization purposes.

This dynamic block helps engineers simulate crane operation, analyze lifting limits, and optimize equipment placement on the construction site. It’s a highly practical tool for creating realistic construction method statements and safety layouts.

I also recommend downloading other Construction methods CAD drawings for your project reference.

File format: .DWG
Size: 842 KB
Source: DWGshare
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
