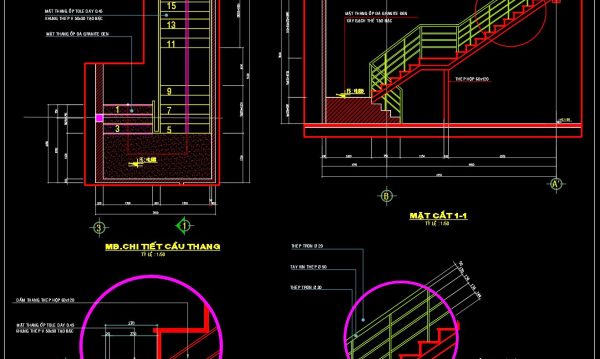

A detailed CAD drawing of a staircase for a townhouse would typically include the following elements:

Overall dimensions:

  • The overall width, height, and length of the staircase.
  • The thickness of the treads, risers, and stringers.
  • The size and location of any landings or platforms.

Tread and riser dimensions:

  • The width and depth of each tread.
  • The height of each riser.
  • The nosing overhang of each tread.

Stringer dimensions:

  • The thickness, width, and height of each stringer.
  • The location of any notches or cutouts in the stringers for the treads and risers.
  • The method of attachment of the stringers to the floor and walls.

Handrail and railing dimensions:

  • The height and width of the handrail.
  • The spacing of the balusters or pickets.
  • The type of material used for the handrail and railing.

Additional details:

  • The location of any doors or openings in the staircase.
  • The type of lighting for the staircase.
  • The material of the treads, risers, stringers, handrail, and railing.
  • Any other relevant details, such as the presence of a curved or spiral staircase.

Detailed CAD drawings of staircases are essential for ensuring that staircases are safe, code-compliant, and aesthetically pleasing. They are used by architects, engineers, and contractors to construct and install staircases.

  • File format: .DWG
  • Size: 346 KB
  • Source: dwgshare.com
  • AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
