185. Free CAD Drawing Display Cabinet – Steel Frame Structure DWG Design

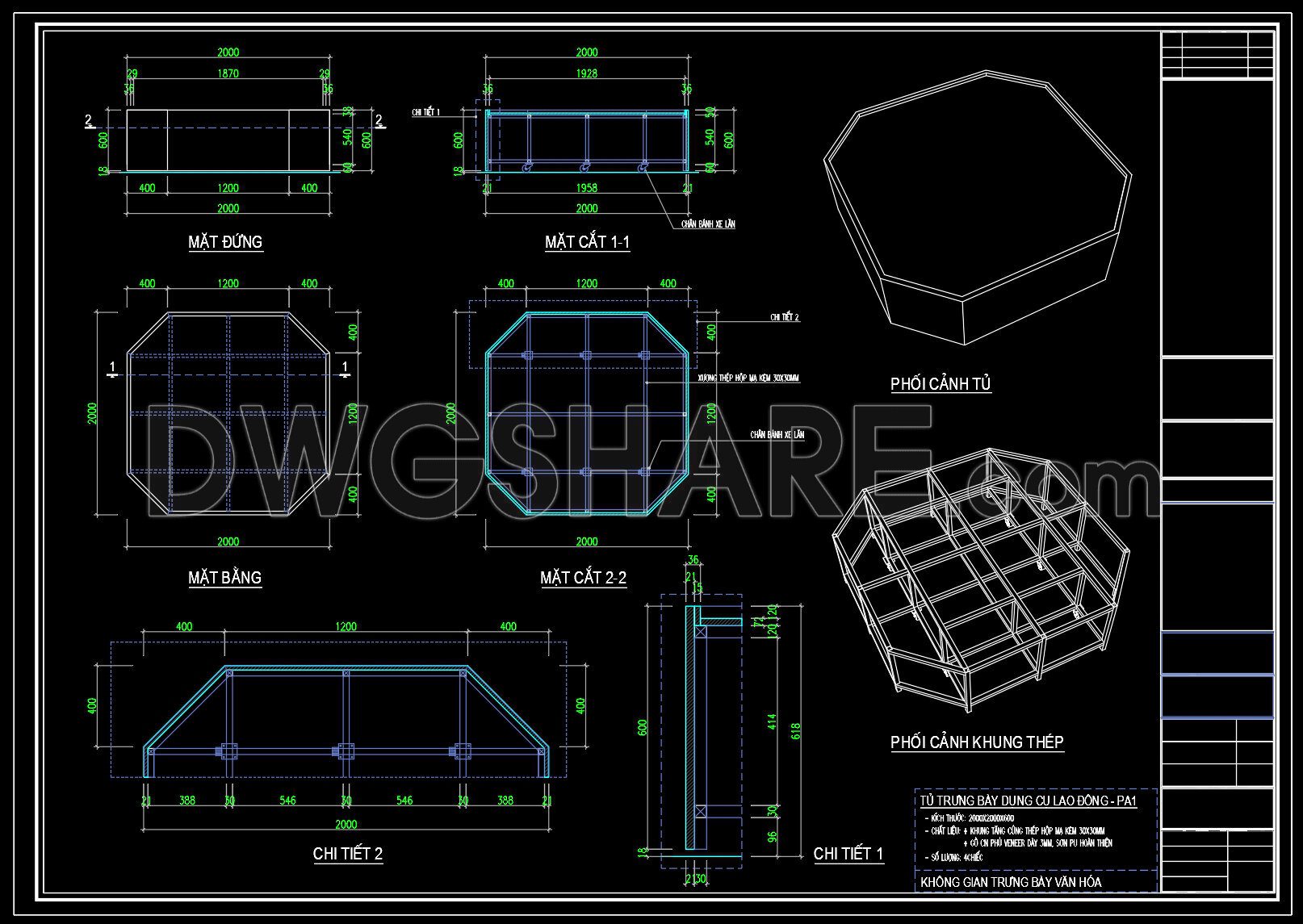

The Free CAD Drawing Display Cabinet offers a comprehensive design with a steel frame structure DWG. This set of detailed CAD drawings presents multiple views, including top, side, and sectional perspectives, ensuring a holistic understanding of the design. Each drawing showcases precise dimensions, such as a 2000mm width and 1200mm depth, allowing for accurate scaling in real-world applications.

Key components of this drawing include:

Steel frame structure
Multiple sectional views
Top and side elevations
Detailed component lists

These DWG files are invaluable in architecture and interior design, providing the benefits of precision and ease of editing. They enhance collaboration among professionals, support cost optimization, and facilitate the seamless integration of the cabinet into projects. Importantly, these CAD files are available for free download, offering a valuable resource for designers and builders seeking high-quality design inputs.

I also recommend downloading other Furniture CAD drawings for your project reference.

File format: .DWG
Size: 135 KB
Source: DWGshare
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
