258. Download Construction Technical Drawings of Classic-Style Residential Kitchen Cabinets

These CAD drawings illustrate the detailed design and construction of classic-style kitchen cabinets in a residential space. The set includes multiple floor plans and elevations, such as the lower cabinet plan, upper cabinet plan, and elevations A, B, and C, providing a clear visualization of the overall layout. Technical specifications are presented with precise measurements, covering length, height, and material thickness to ensure feasibility during construction. In addition, the drawings highlight decorative elements such as moldings, lift-up fittings, Blum soft-close hinges, sliding rails, stainless steel pull-out baskets, rice containers, and waste bins, reflecting a balance between functionality and aesthetics. The detail views showcase ornamental patterns, cabinet edges, and accessories, enabling craftsmen to assemble components accurately. Project information, including client details, location, and specific tasks, is also noted, demonstrating professionalism in design documentation. These drawings serve as essential resources for architects, engineers, and carpenters, ensuring technical precision while conveying the luxurious classical style intended for the kitchen space.

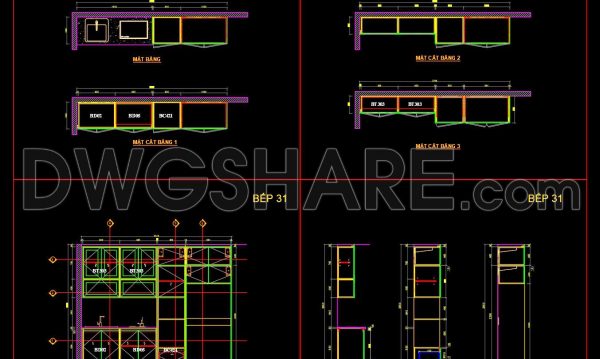

I also recommend downloading other Kitchen CAD drawings for your project reference.

File format: .DWG
Size: 475 KB
Source: DWGshare
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process

DOWNLOAD
