317. Free Download detailed CAD drawings of townhouse stairs

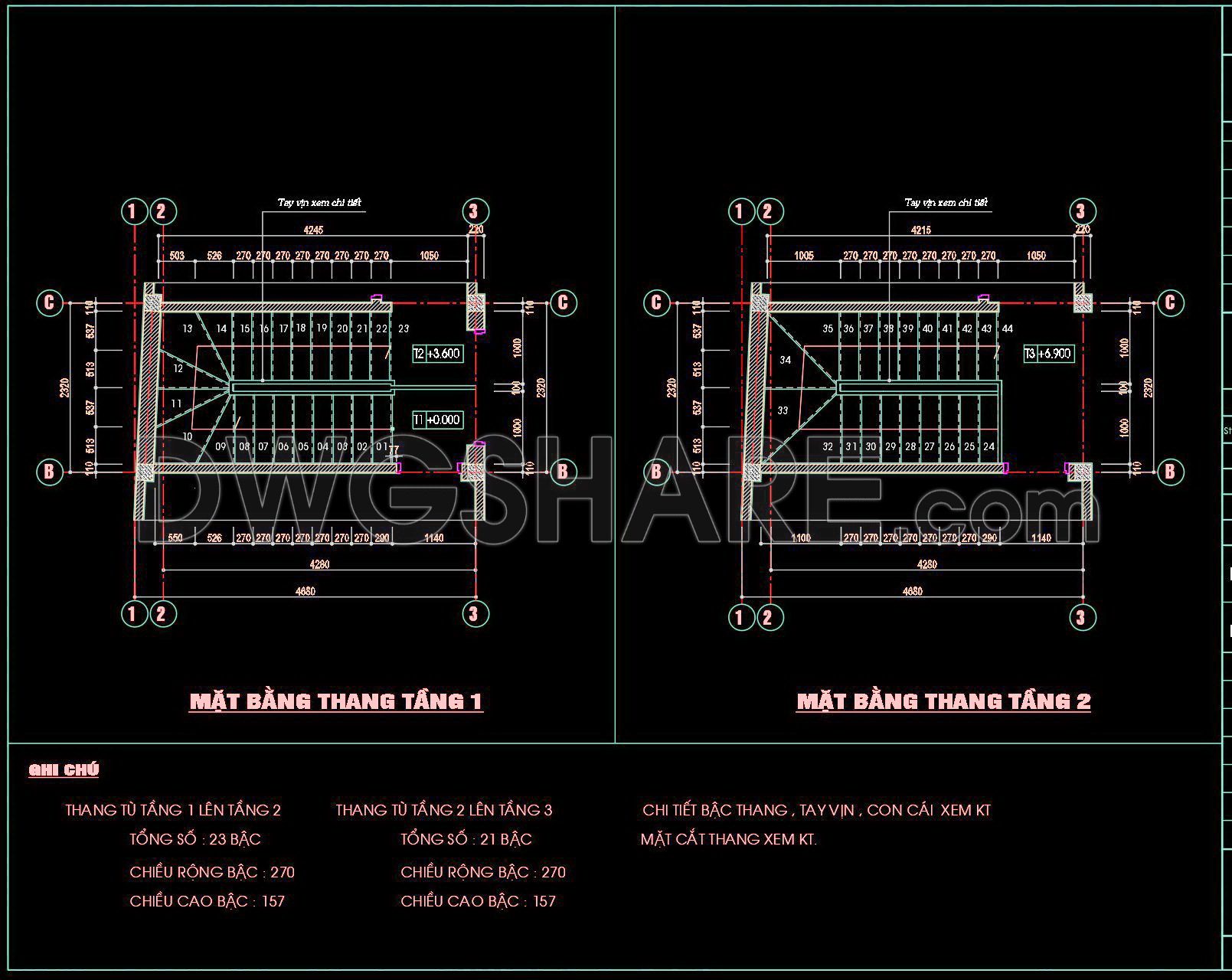

This CAD drawing set shows detailed staircase plans for a 3-story townhouse. It includes floor plans, stair sections, and construction details such as treads, risers, railings, and decorative balusters. The staircase design uses 270mm tread width and 157mm riser height, with 23 steps from floor 1 to 2, and 21 steps to floor 3. Railings are made of painted steel, and the handrail is wood with a diameter of 60mm. All components are dimensioned for precise construction and architectural use.
Click here to free download detailed staircase CAD drawings, with hundreds of diverse models for any project.
- File format: .DWG
- Size: 166 KB
- Source: dwgshare.com
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
