380. Free CAD File of Wooden Sofa Set – Detailed Living Room Furniture Design

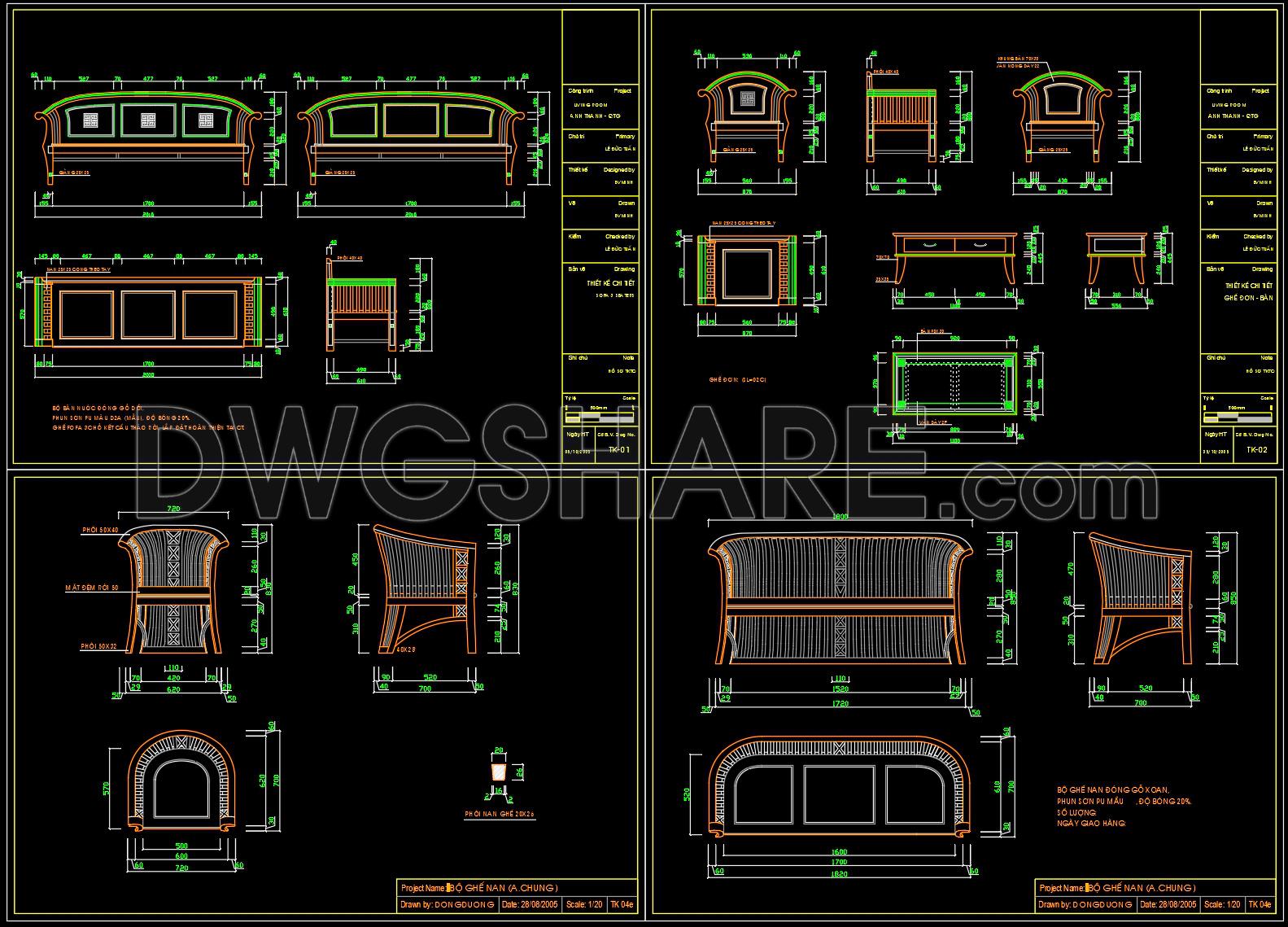

This drawing set clearly presents a wooden living room furniture collection with a traditional touch, where attention to detail is easy to notice. The main components include a long sofa, armchairs, a coffee table, and several supporting elements, all illustrated through elevations, plans, and precise dimensions.

One of the most recognizable features is the gently curved frame and armrests. The design is not overly decorative but still has its own character. The wooden slats are evenly arranged, giving the furniture a lighter and more open feel compared to solid forms. In both the armchair and sofa drawings, the backrests are divided into clear sections, combined with simple slat or panel details.

The coffee table follows a clean, rectangular, low-profile design that fits well with the overall composition. Dimensions are presented in detail, including length, depth, and height, making it practical for fabrication or adjustments.

Overall, this is a practical drawing set—nothing flashy, but clear enough for professionals to quickly understand and move straight into production without unnecessary revisions.

I also recommend downloading other Dynamic CAD Block drawings for your project reference.

File format: .DWG
Size: 400 KB
Source: DWGshare
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process

In addition, you can download the complete set of technical drawings for the sofa, coffee table, and armchair included in this collection here.

FULL DOWNLOAD

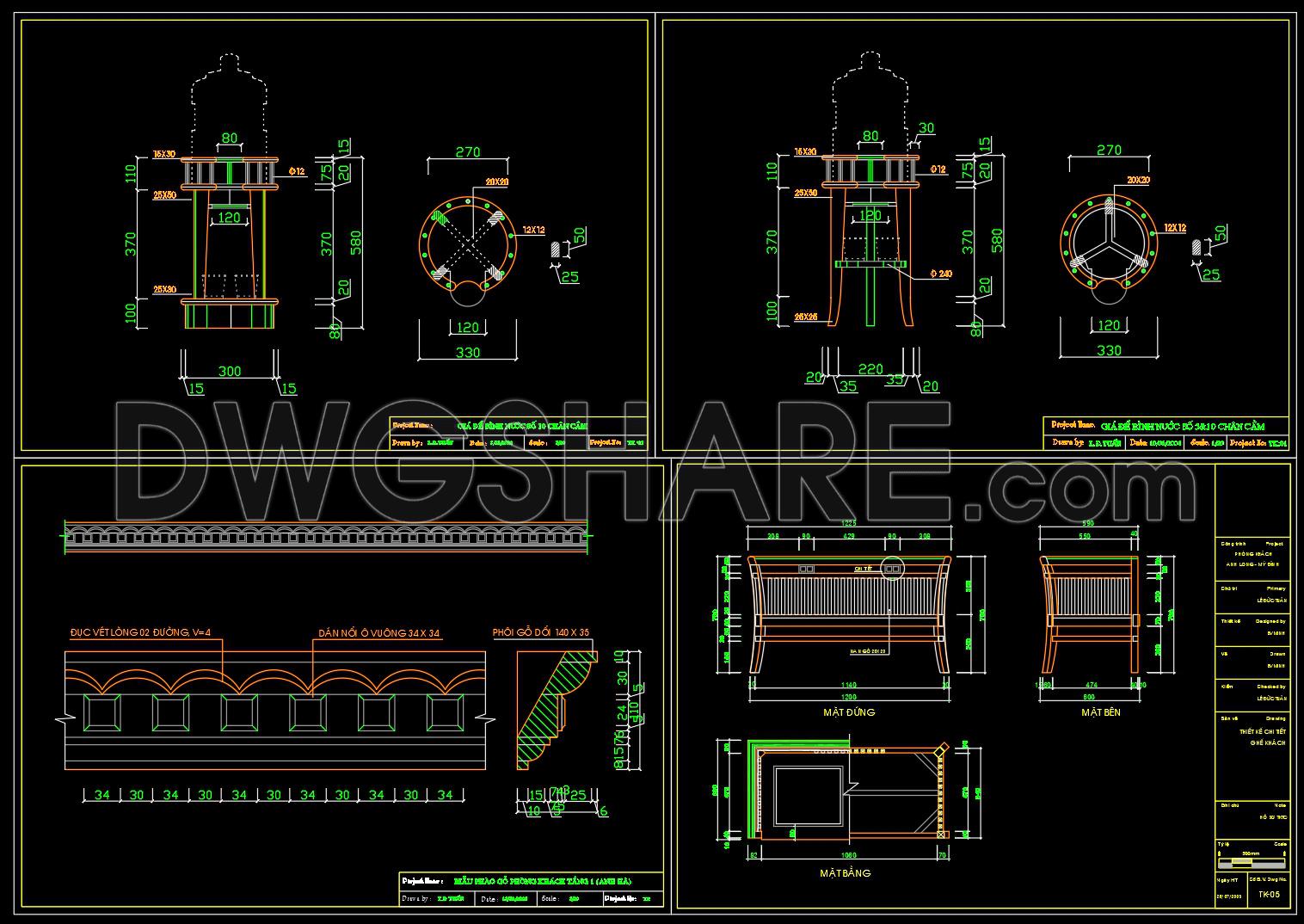

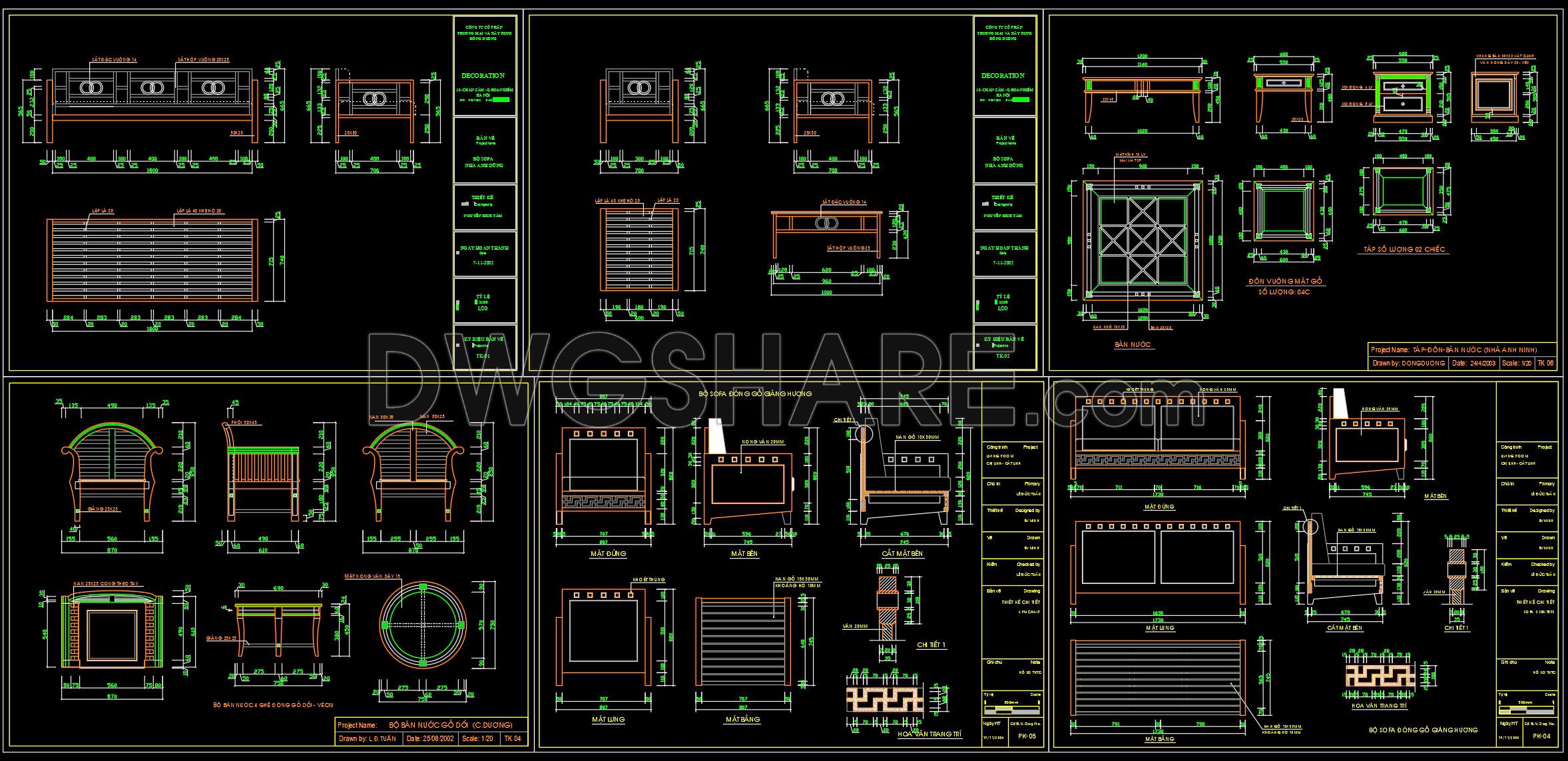

380. Living Room Wooden Furniture Cad File – Detailed Sofa, Coffee Table, And Armchair Designs (1)

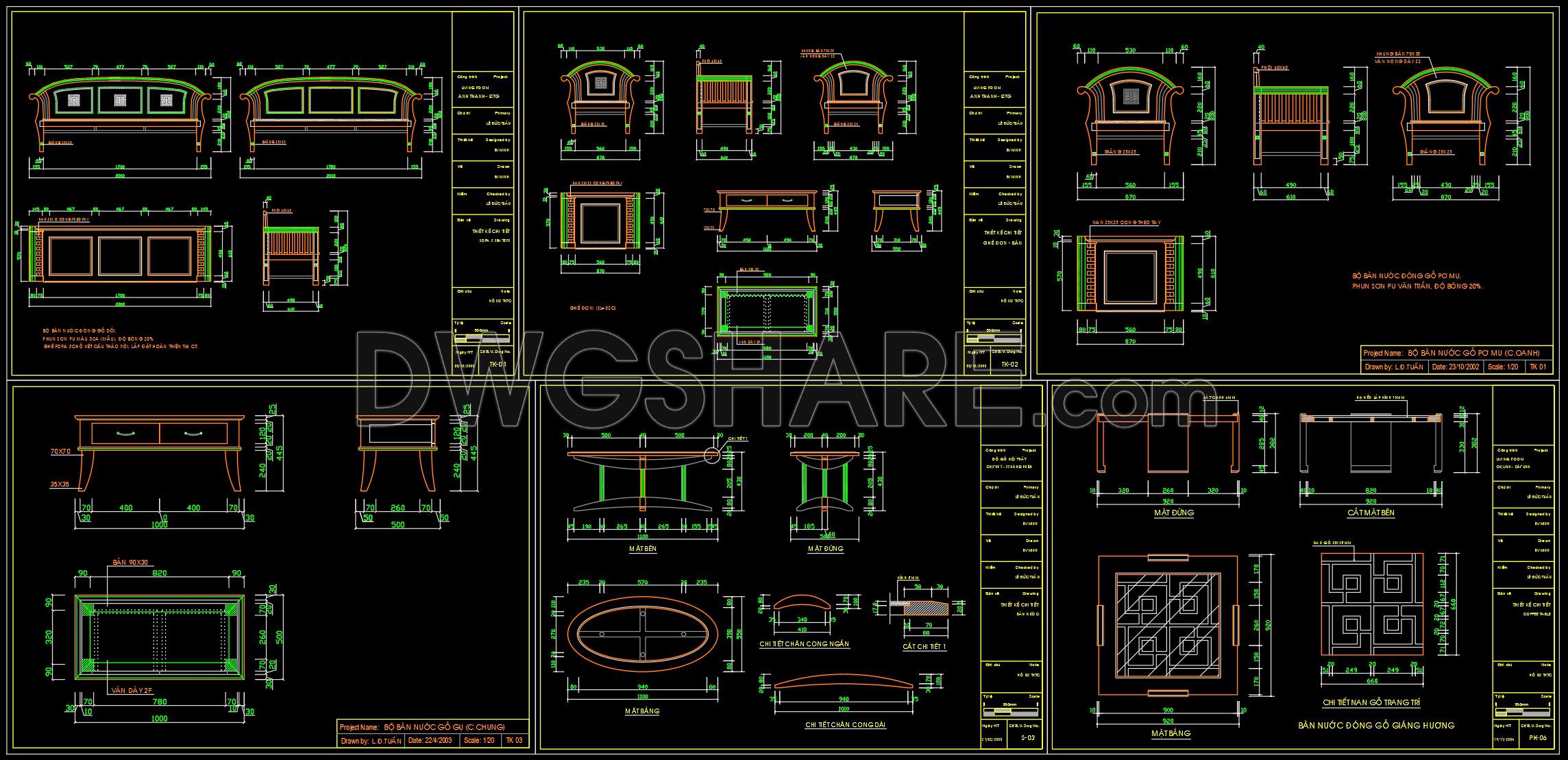

380. Living Room Wooden Furniture Cad File – Detailed Sofa, Coffee Table, And Armchair Designs (2)

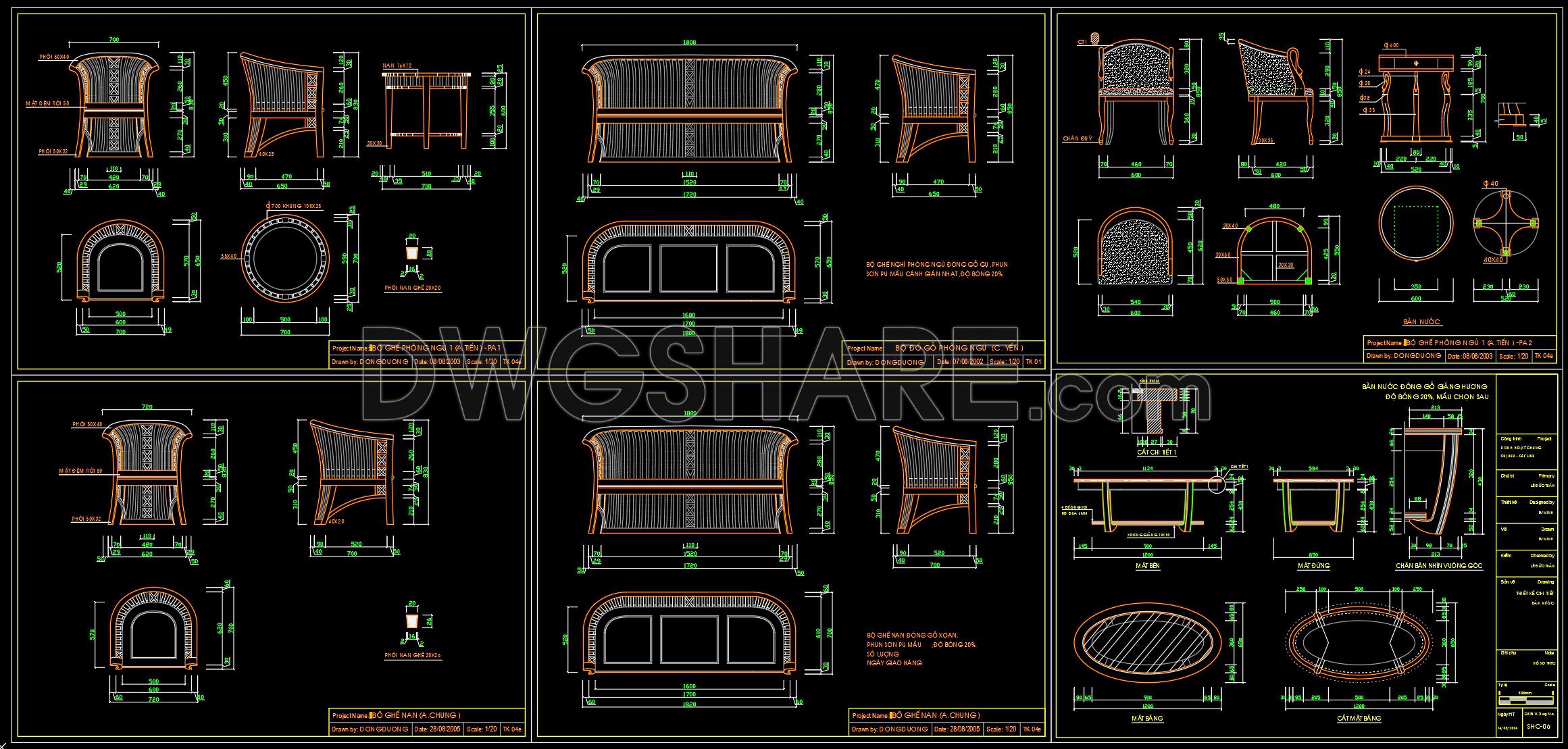

380. Living Room Wooden Furniture Cad File – Detailed Sofa, Coffee Table, And Armchair Designs (3)

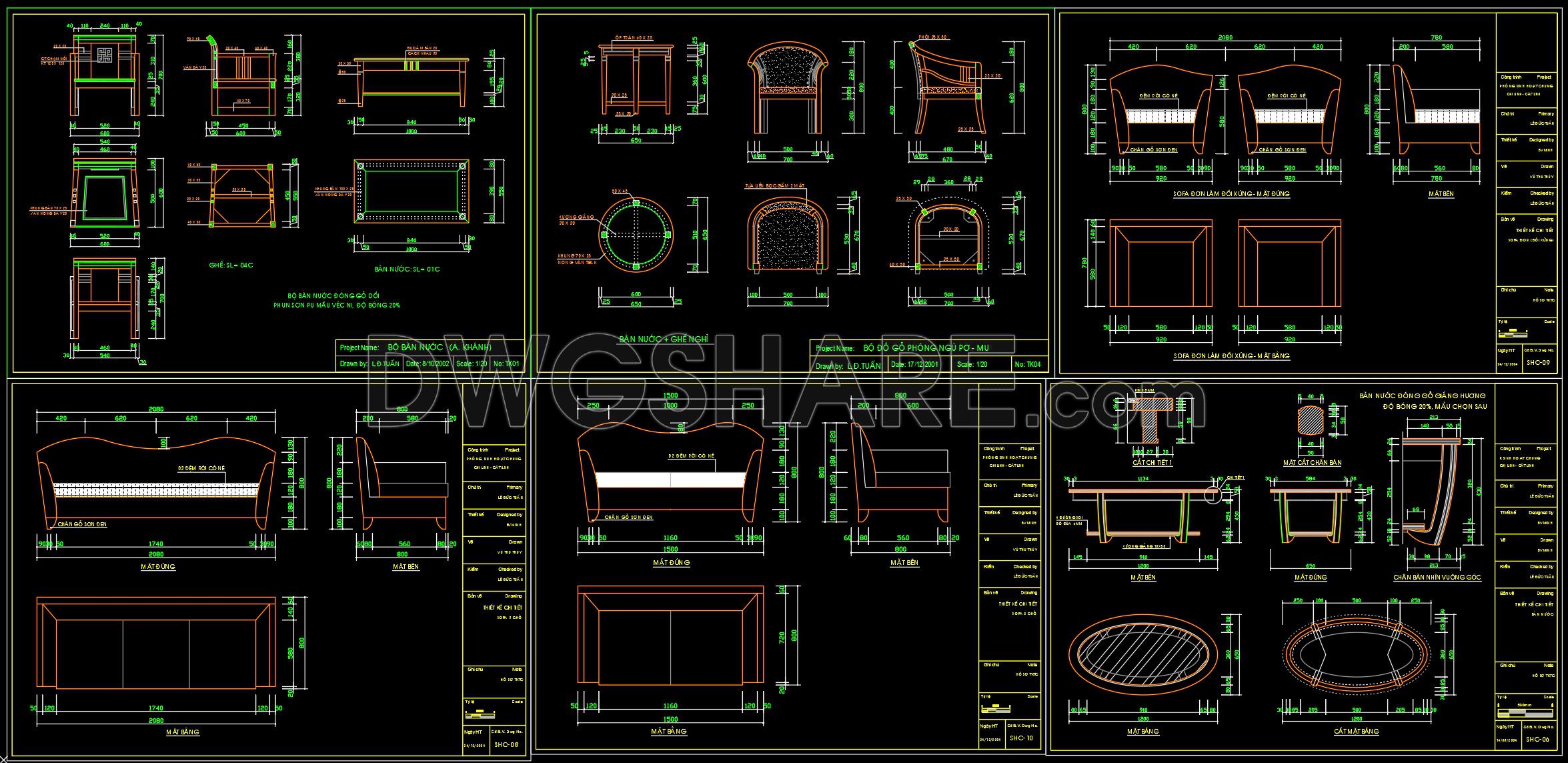

380. Living Room Wooden Furniture Cad File – Detailed Sofa, Coffee Table, And Armchair Designs (4)

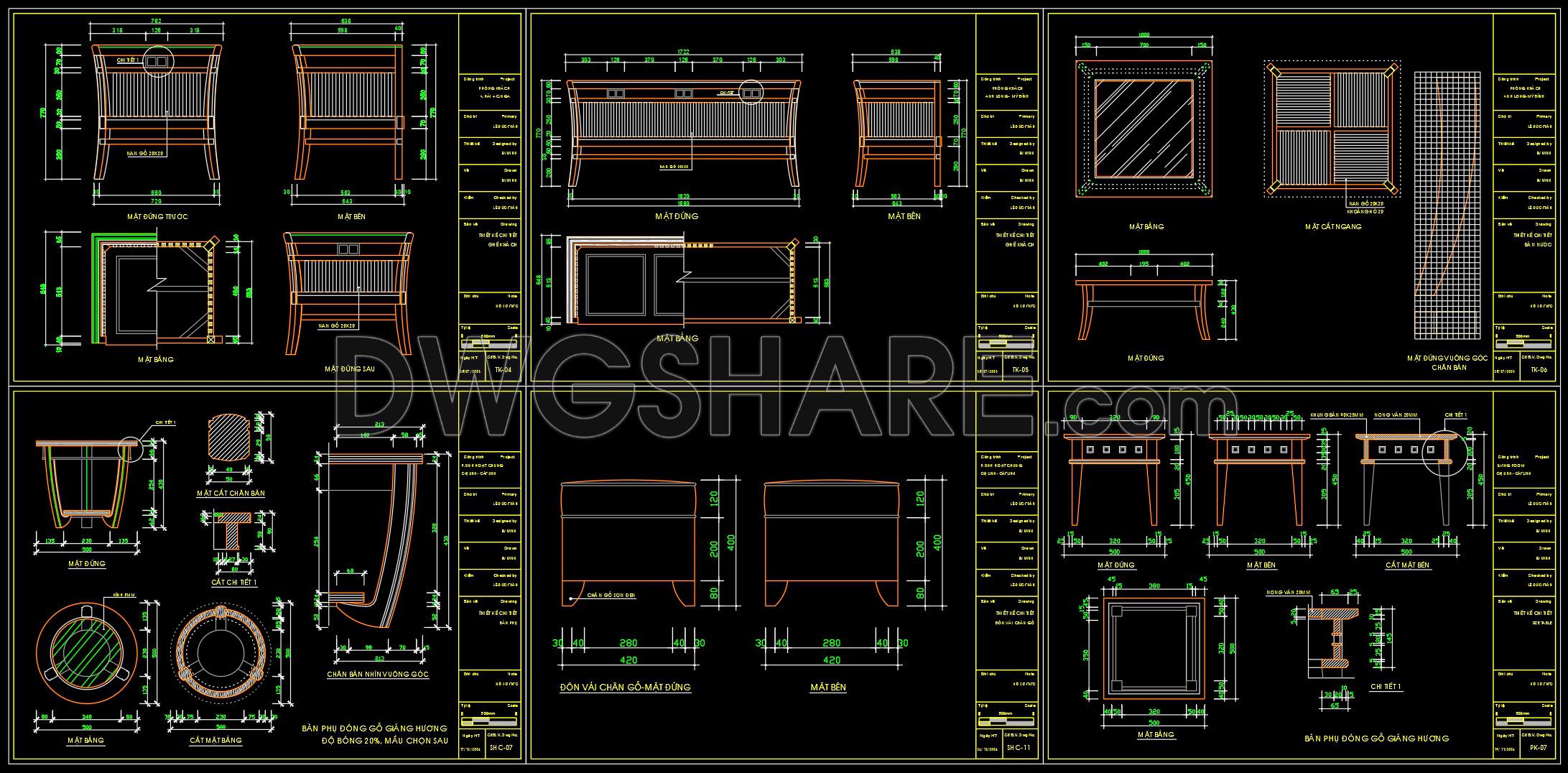

380. Living Room Wooden Furniture Cad File – Detailed Sofa, Coffee Table, And Armchair Designs (5)
