88. Download free detailed CAD drawings of floor plans for a 3-story townhouse

This free CAD drawing presents the floor tiling plans for three levels of a building: “MẶT BẰNG LÁT SÀN TẦNG 1” (Floor Tiling Plan – Level 1), “MẶT BẰNG LÁT SÀN TẦNG 2” (Floor Tiling Plan – Level 2), and “MẶT BẰNG LÁT SÀN TẦNG 3” (Floor Tiling Plan – Level 3). Each plan illustrates the intended flooring layout and patterns for the respective level.

Level 1 displays a complex tiling arrangement with various rectangular and square tile patterns, possibly indicating different flooring materials or designs for distinct areas. A staircase is also clearly marked.

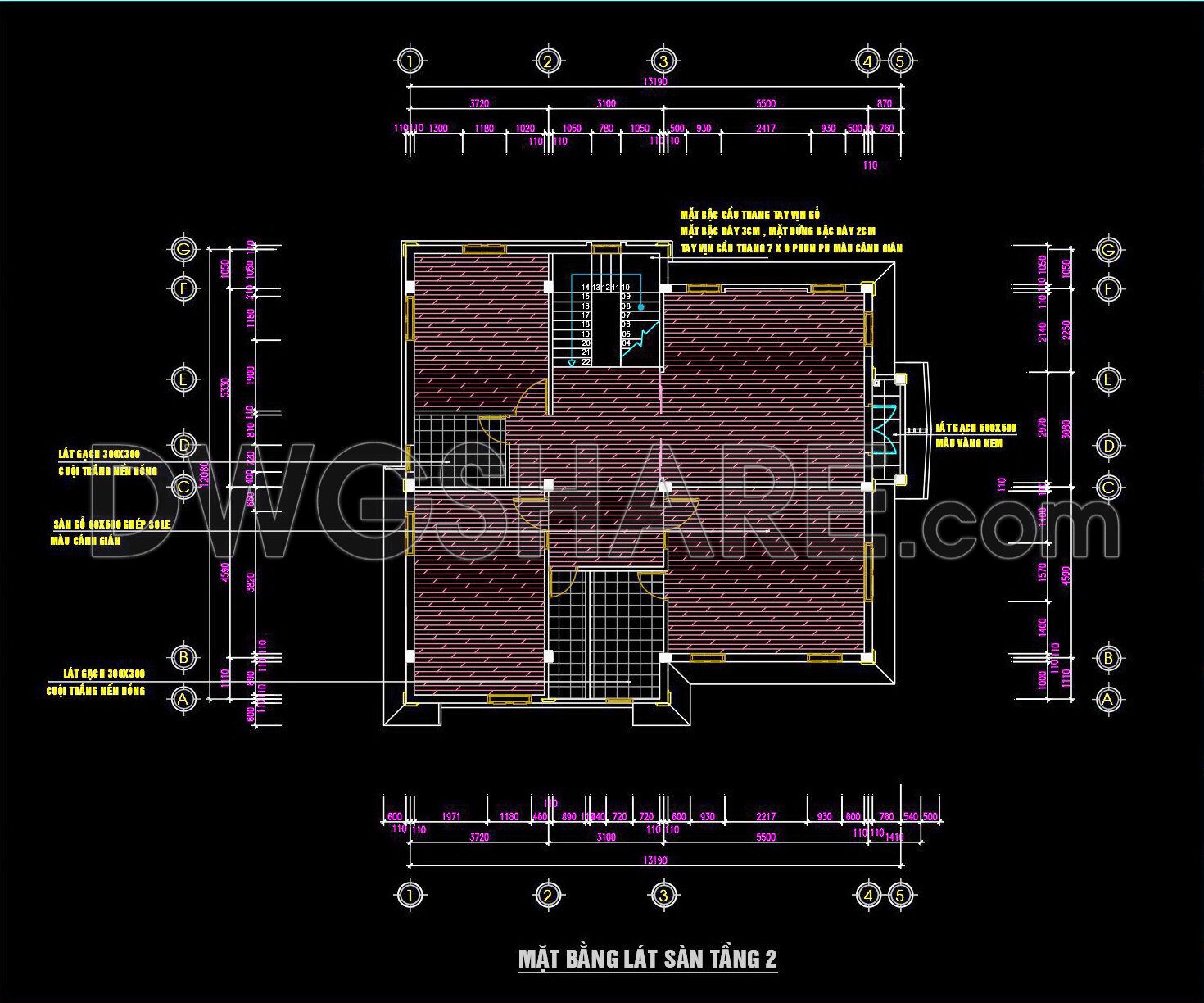

Level 2 shows a consistent brick-like tiling pattern across the majority of the floor area. The layout of rooms and walls is evident, providing context for the tiling.
Level 3 features a similar brick-like tiling pattern to Level 2 but with a slightly different room configuration and the inclusion of a staircase.

Each plan includes dimensions and annotations (in Vietnamese), specifying the sizes and locations of different areas. Grid lines and directional indicators are also present. These floor tiling plans are essential for contractors and interior designers to accurately install the intended flooring materials and patterns on each level of the building.
