05. Download Architectural Drawings of ISUZU Dealership and Showroom AutoCAD DWG

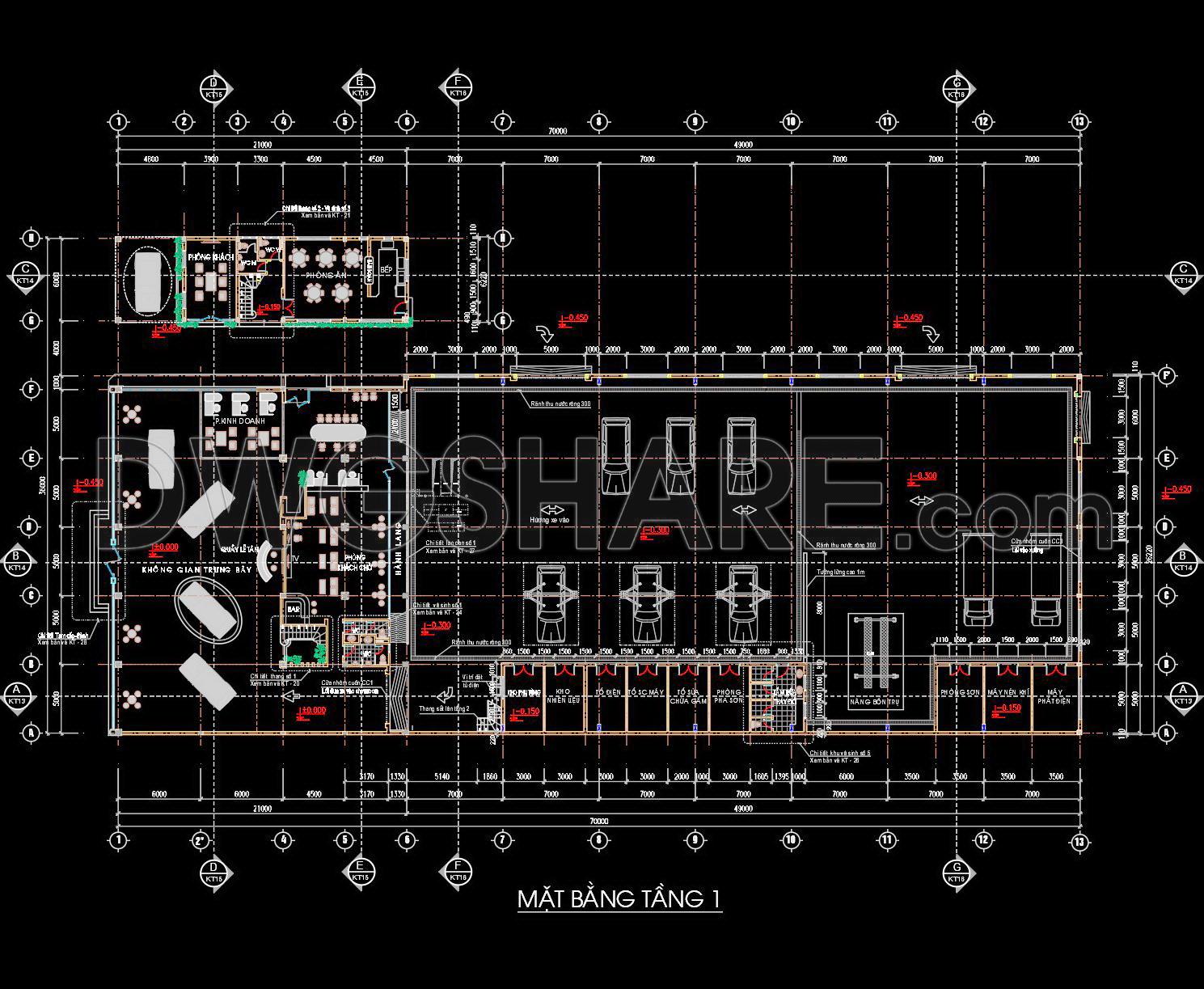

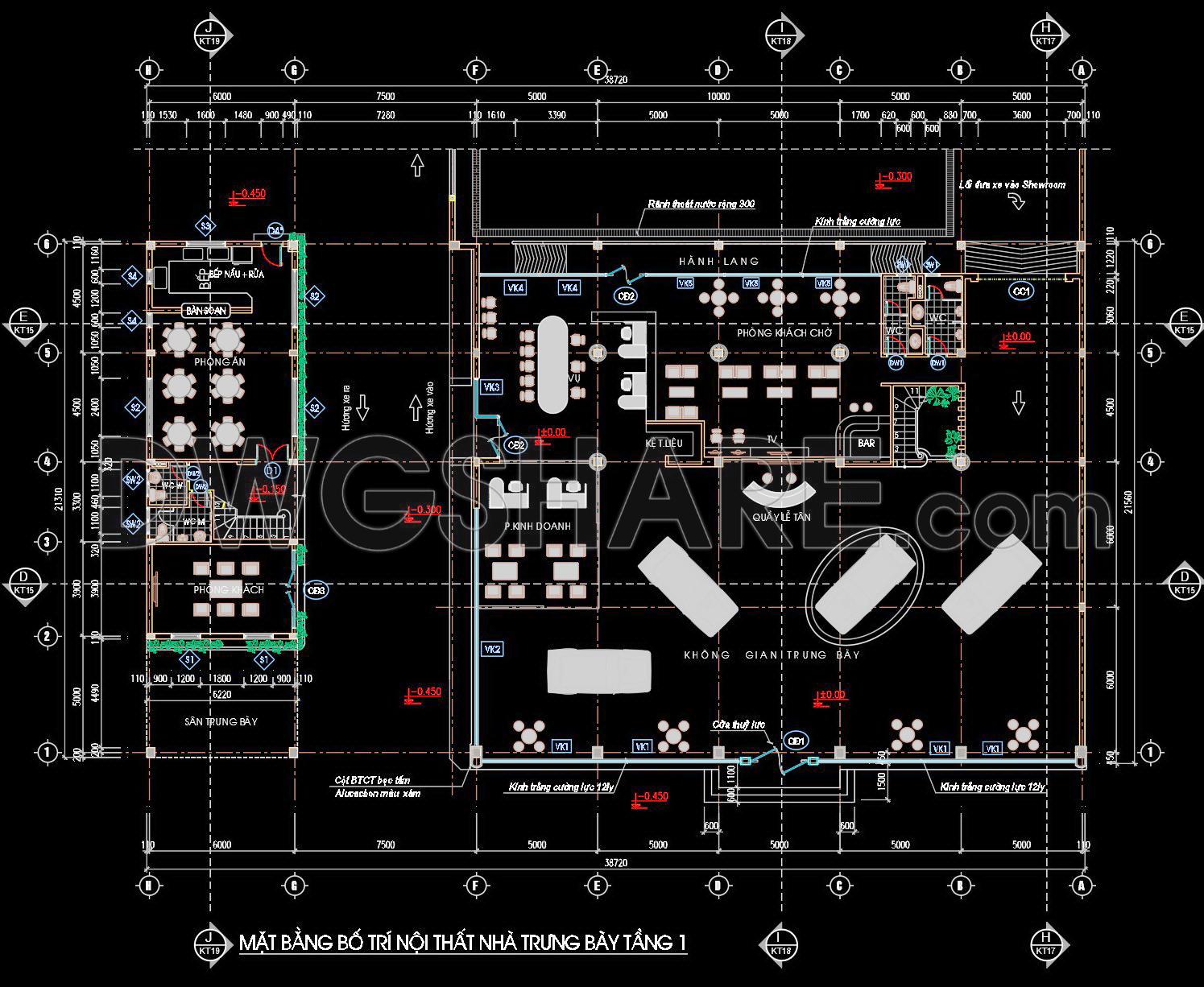

This drawing set showcases a practical design for an ISUZU dealership showroom combined with a service workshop, developed with a strong focus on functionality and real-world construction. On the ground floor, the layout is clearly organized to enhance customer experience, featuring an open ISUZU vehicle display area, a centrally located reception, and direct connections to consultation and sales offices. The workshop is positioned at the rear, ensuring efficient vehicle flow while keeping customer areas clean and accessible.

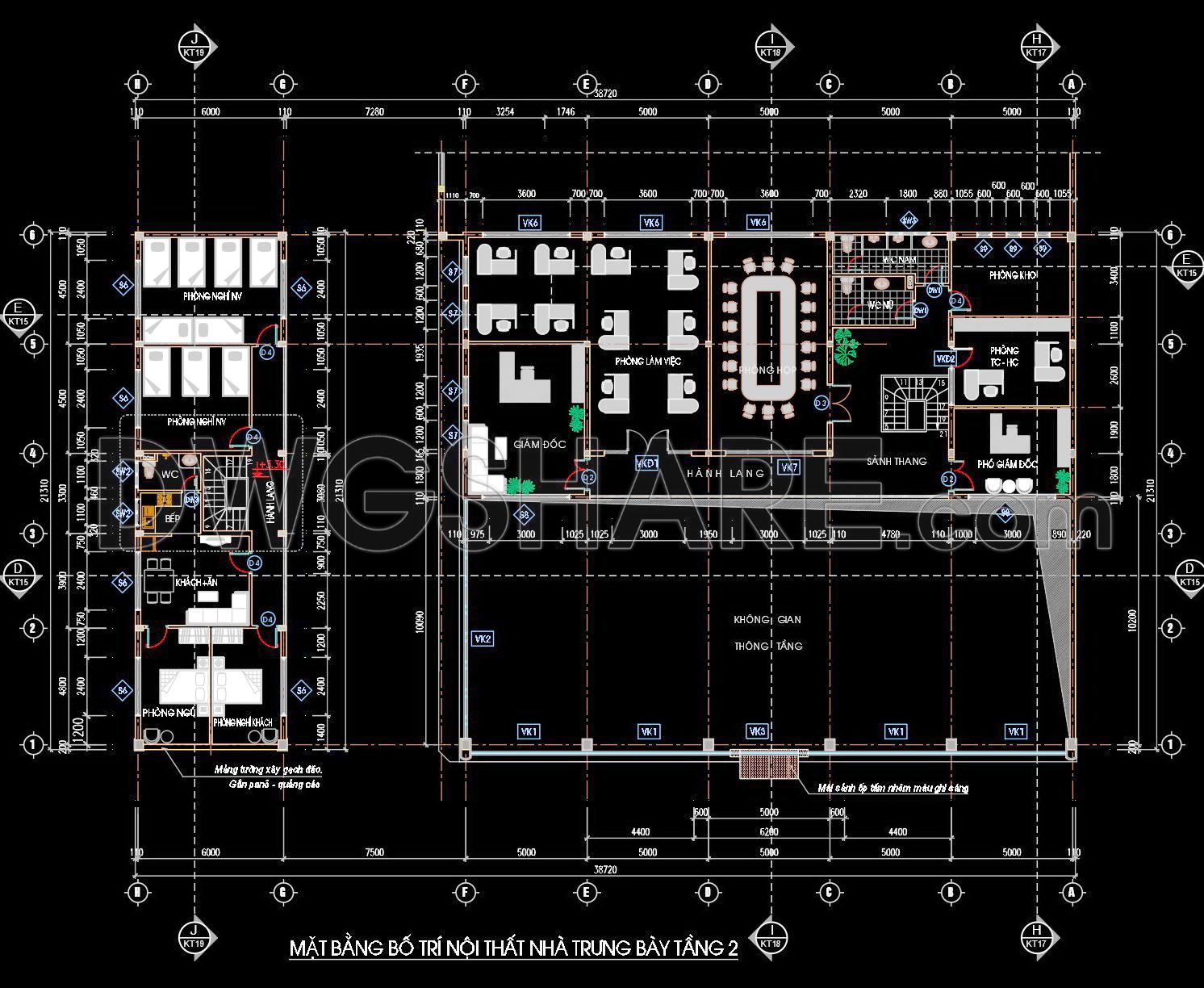

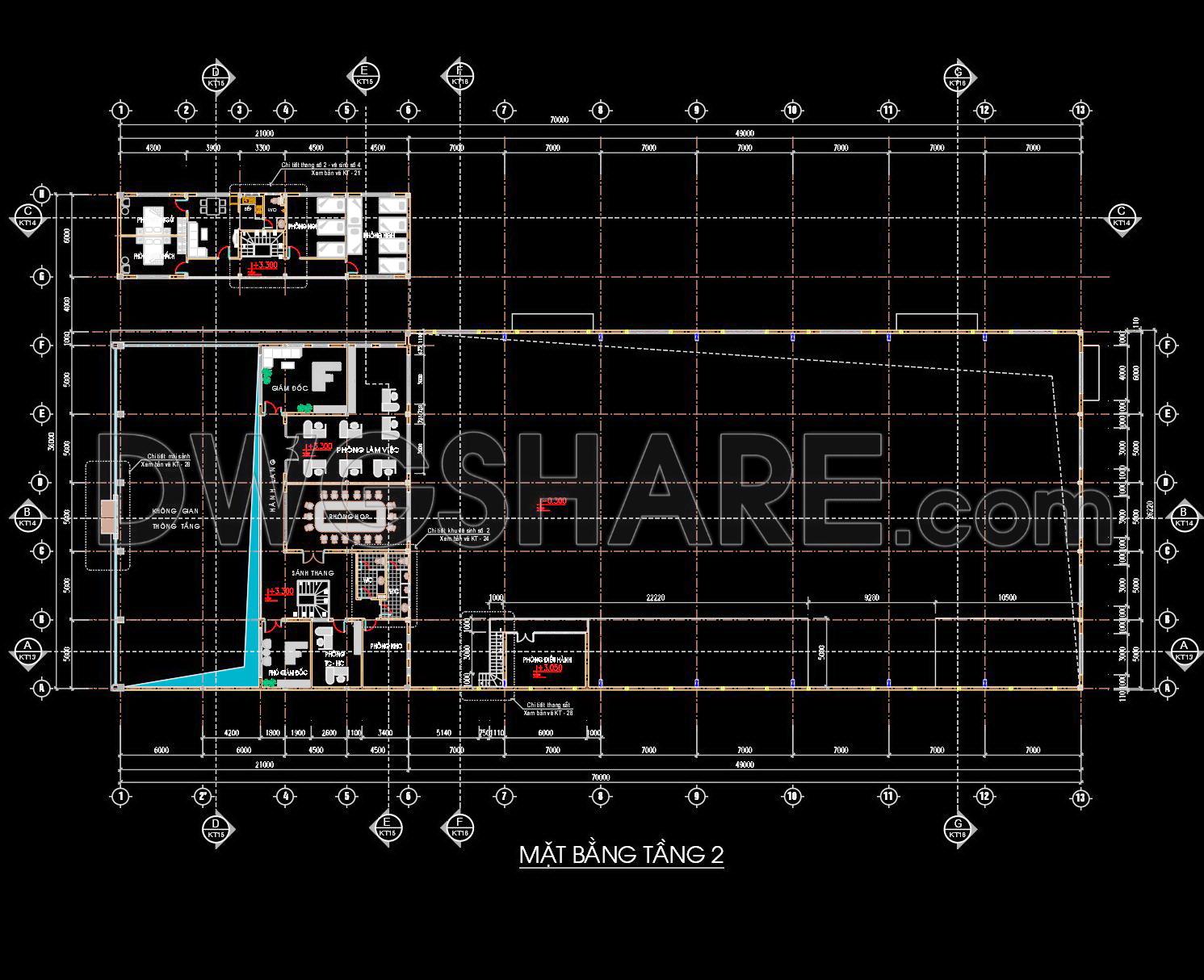

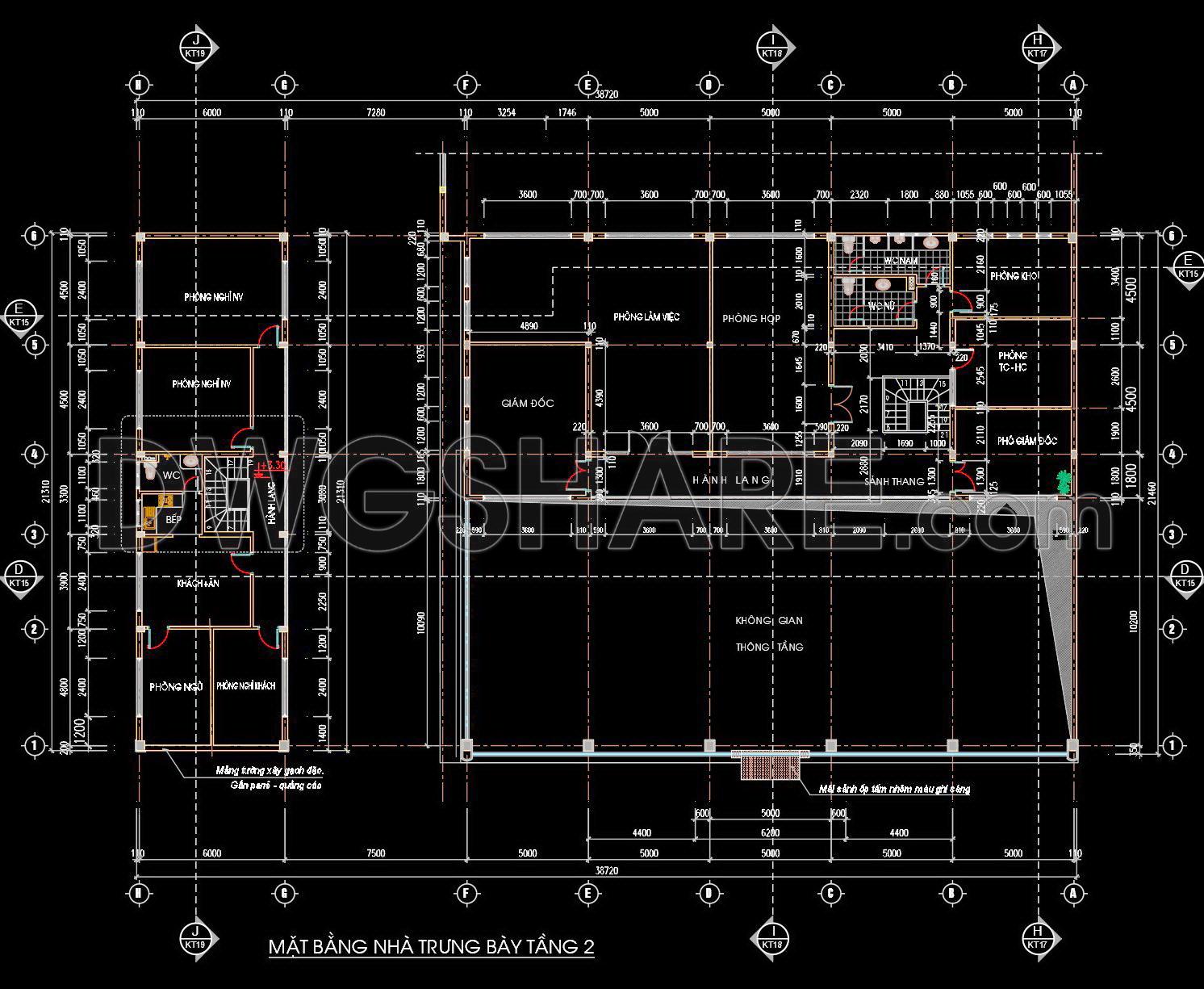

The second floor is dedicated to administrative functions, including offices, meeting rooms, and executive spaces. A well-planned void creates a visual connection to the showroom below, making the interior feel more spacious and cohesive.

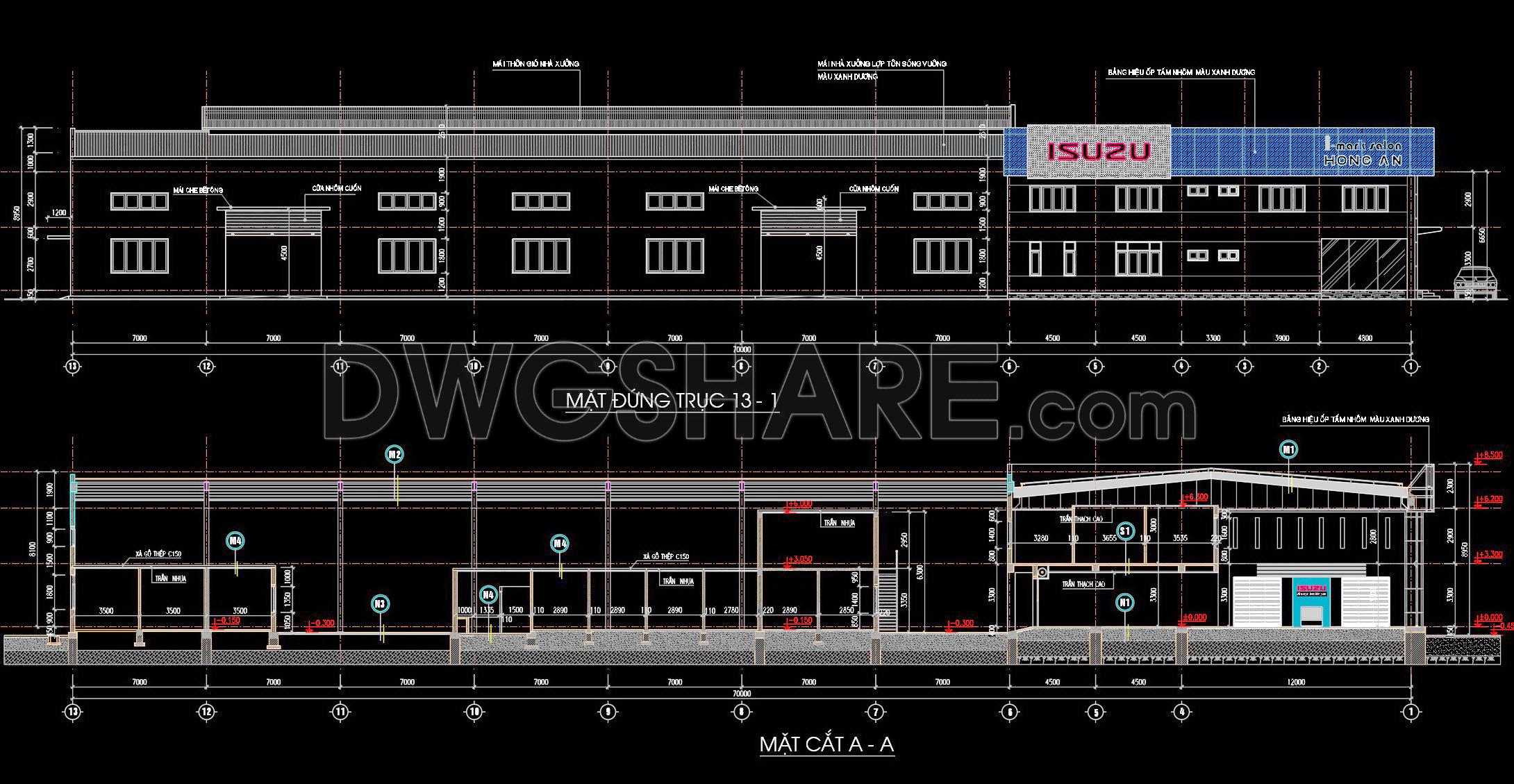

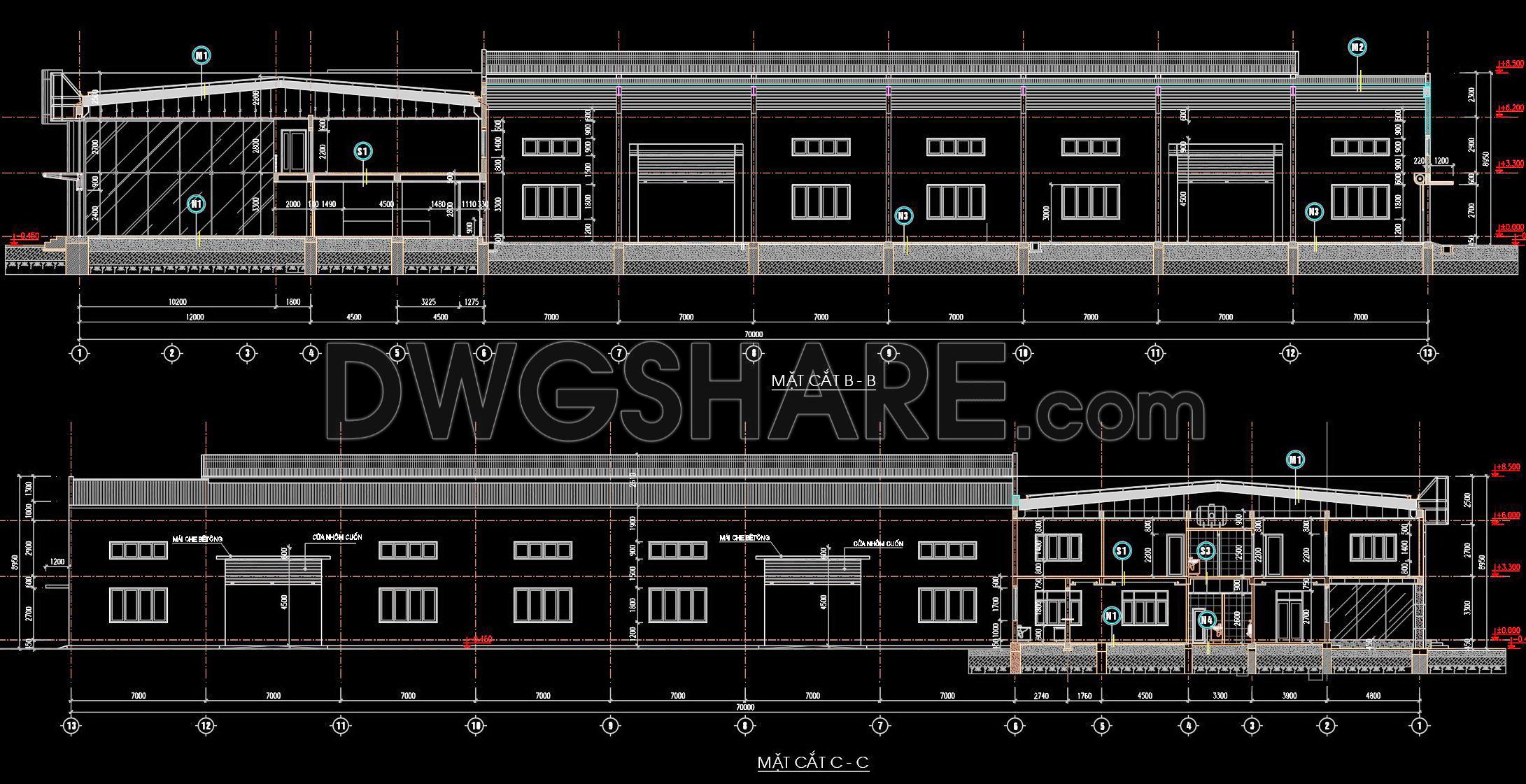

Sections A-A, B-B, and C-C provide clear insight into building heights, structural systems, and material solutions, particularly the combination of steel framing and masonry walls. The design remains straightforward but practical, making it easy to apply in real projects.

The façade emphasizes a clean, industrial aesthetic with repetitive structural bays and a prominent ISUZU branding zone at the front. Overall, this DWG set is highly usable for both reference and implementation in automotive showroom and service center projects.

File format: .DWG
Size: 2.12 MB
Source: DWGshare
