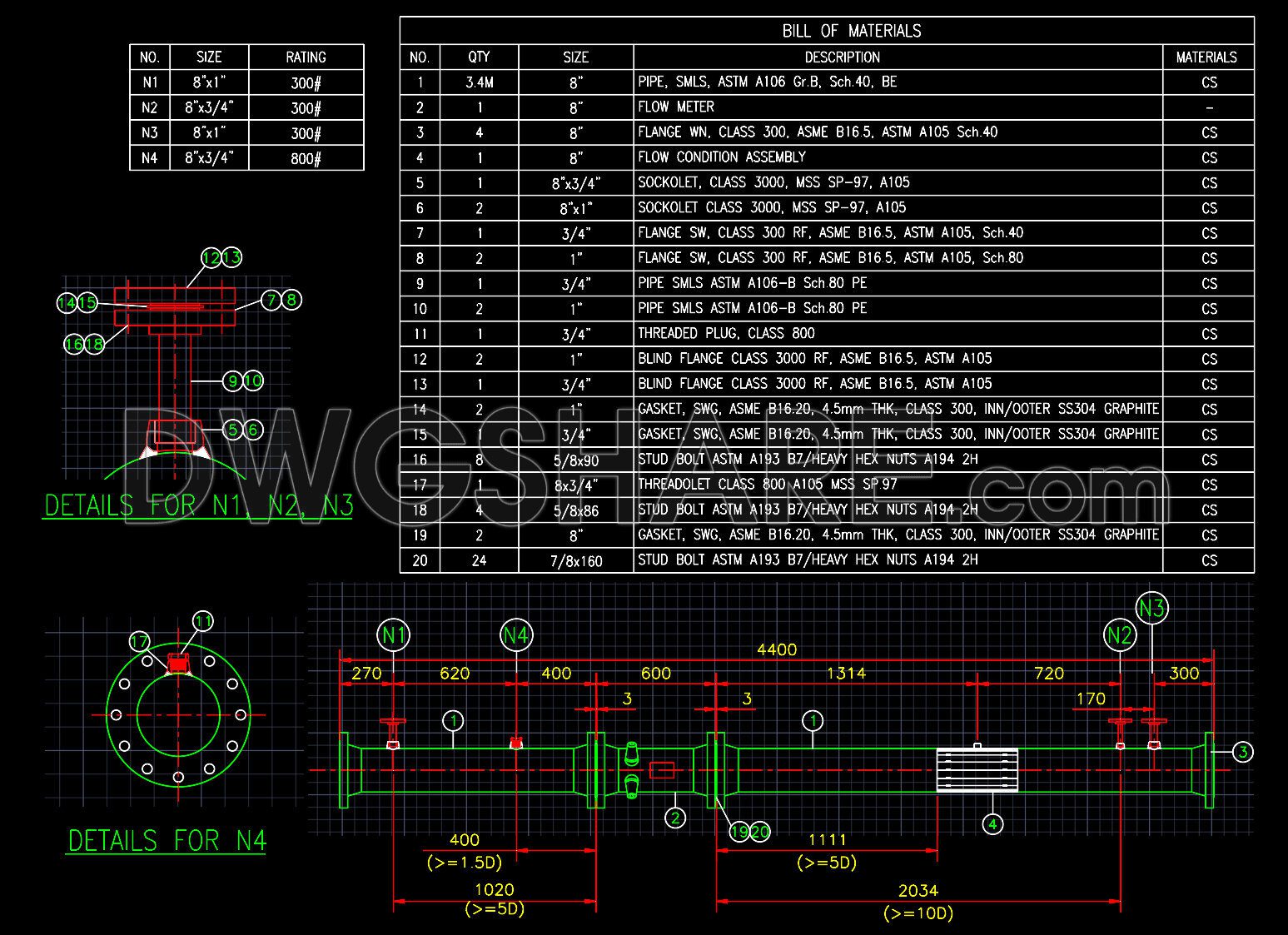

21.Flow Meter Pipe Spool Assembly Autocad Drawing Free Download

BILL OF MATERIALS
NO.	QTY	SIZE	DESCRIPTION	MATERIALS
1	3.4M	8″	PIPE, SMLS, ASTM A106 Gr.B, Sch.40, BE	CS
2	1	8″	FLOW METER	N/A
3	4	8″	FLANGE WN, CLASS 300, ASME B16.5, ASTM A105 Sch.40	CS
4	1	8″	FLOW CONDITION ASSEMBLY	CS
5	1	8″x3/4″	SOCKOLET, CLASS 3000, MSS SP-97, A105	CS
6	2	8″x1″	SOCKOLET CLASS 3000, MSS SP-97, A105	CS
7	1	3/4″	FLANGE SW, CLASS 300 RF, ASME B16.5, ASTM A105, Sch.40	CS
8	2	1″	FLANGE SW, CLASS 300 RF, ASME B16.5, ASTM A105, Sch.80	CS
9	1	3/4″	PIPE SMLS ASTM A106-B Sch.80 PE	CS
10	2	1″	PIPE SMLS ASTM A106-B Sch.80 PE	CS
11	1	3/4″	THREADED PLUG, CLASS 800	CS
12	2	1″	BLIND FLANGE CLASS 3000 RF, ASME B16.5, ASTM A105	CS
13	1	3/4″	BLIND FLANGE CLASS 3000 RF, ASME B16.5, ASTM A105	CS
14	2	1″	GASKET, SWG, ASME B16.20, 4.5mm THK, CLASS 300, INN/OOTER SS304 GRAPHITE	CS
15	1	3/4″	GASKET, SWG, ASME B16.20, 4.5mm THK, CLASS 300, INN/OOTER SS304 GRAPHITE	CS
16	8	5/8×90	STUD BOLT ASTM A193 B7/HEAVY HEX NUTS A194 2H	CS
17	1	8×3/4″	THREADOLET CLASS 800 A105 MSS SP.97	CS
18	4	5/8×86	STUD BOLT ASTM A193 B7/HEAVY HEX NUTS A194 2H	CS
19	2	8″	GASKET, SWG, ASME B16.20, 4.5mm THK, CLASS 300, INN/OOTER SS304 GRAPHITE	CS
20	24	7/8×160	STUD BOLT ASTM A193 B7/HEAVY HEX NUTS A194 2H	CS

File format: .DWG
Size: 118KB
Source: dwgshare.com
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
