766. Free Download – Tempered Glass Door CAD Drawings with Detailed Dimensions

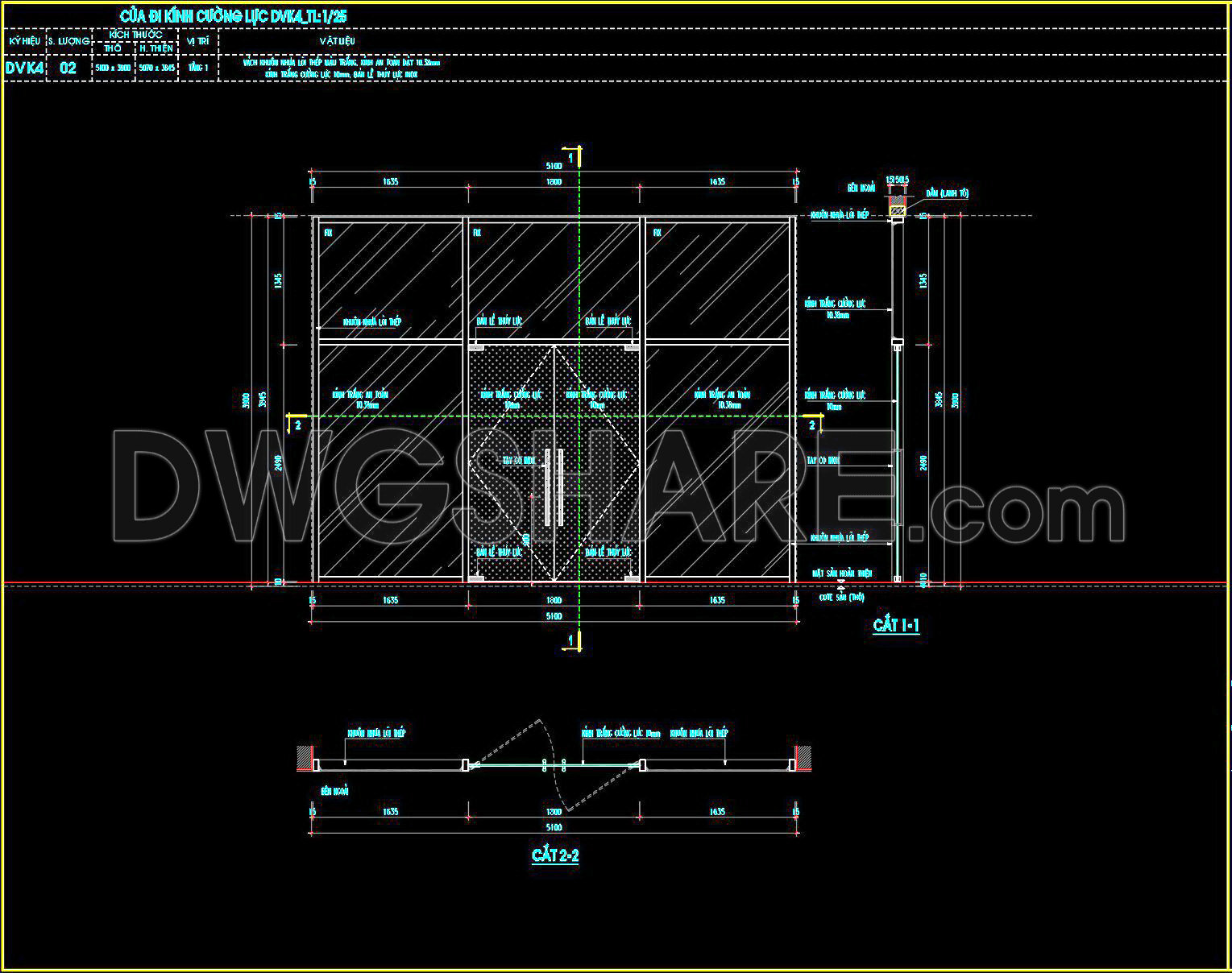

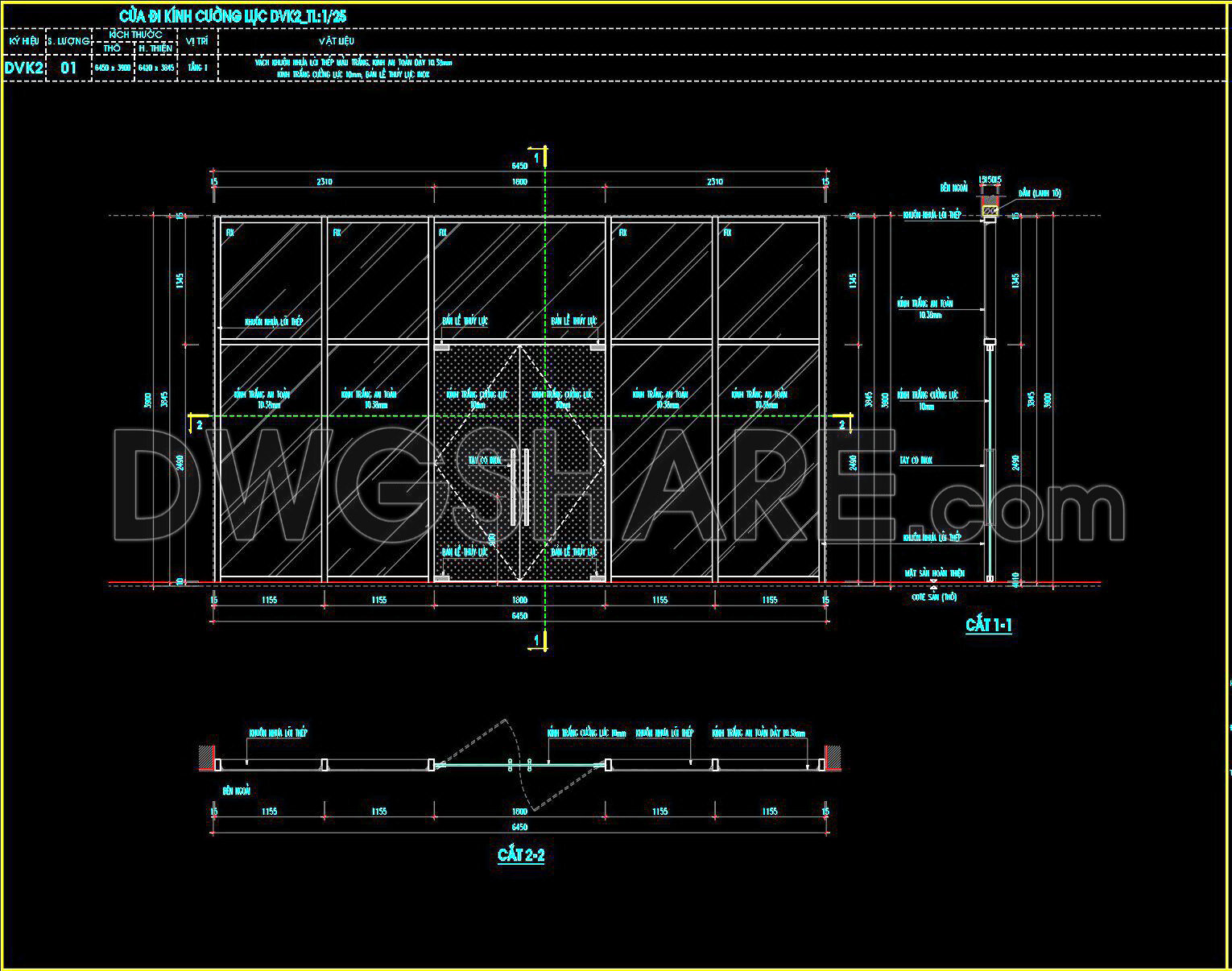

This CAD drawing set of tempered glass doors provides complete technical specifications and detailed dimensions for two models: DVK2 and DVK4. Both designs feature 12mm tempered glass combined with aluminum frames, glass clamps, hydraulic door closers, and matching accessories. The drawings clearly present full elevations, technical sections, exact panel dimensions, and layouts for swinging and fixed glass sections. Model DVK2 has a width of 6490mm, while DVK4 is 5100mm wide; both stand at 3050mm in height, making them suitable for a wide range of building types. With a modern design, high aesthetic appeal, and exceptional durability, this drawing set is a valuable resource for engineers, architects, and contractors. The free downloadable CAD file supports quick and accurate implementation during the installation of tempered glass doors, ensuring precision and professional results.

I also suggest downloading Shopping Centers Autocad File

File format: .DWG
Size: 163 KB
Source: Collect
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
