124. Bid Document Preparation Construction Drawings for CT2 Residential Building – Northeast Station Urban Area (Province)

124. Bid Document Preparation Construction Drawings for CT2 Residential Building – Northeast Station Urban Area (Province)

This CAD drawing set presents a mid-rise residential apartment building with a symmetrical façade composition. The elevation shows repetitive vertical modules, balconies, window systems, and a clearly defined podium base level with commercial or entrance functions.

The drawings include:

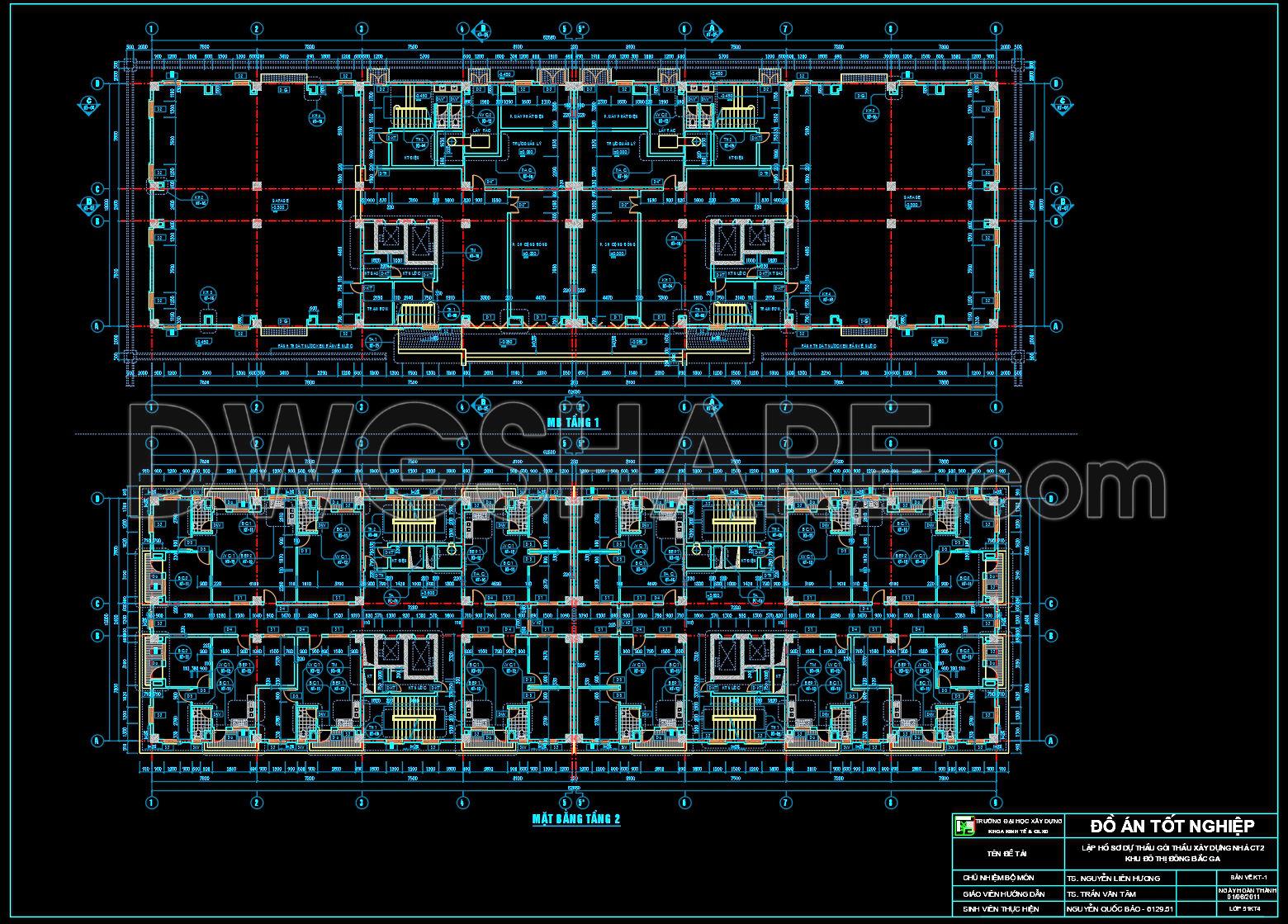

• Ground floor plan (MB tầng 1) with structural grid axes, circulation paths, and core areas
• Typical floor plan (MB tầng 2) showing repeated apartment units arranged symmetrically

Internal layouts clearly indicate:

• Living rooms, bedrooms, kitchens, toilets
• Staircases and vertical circulation cores

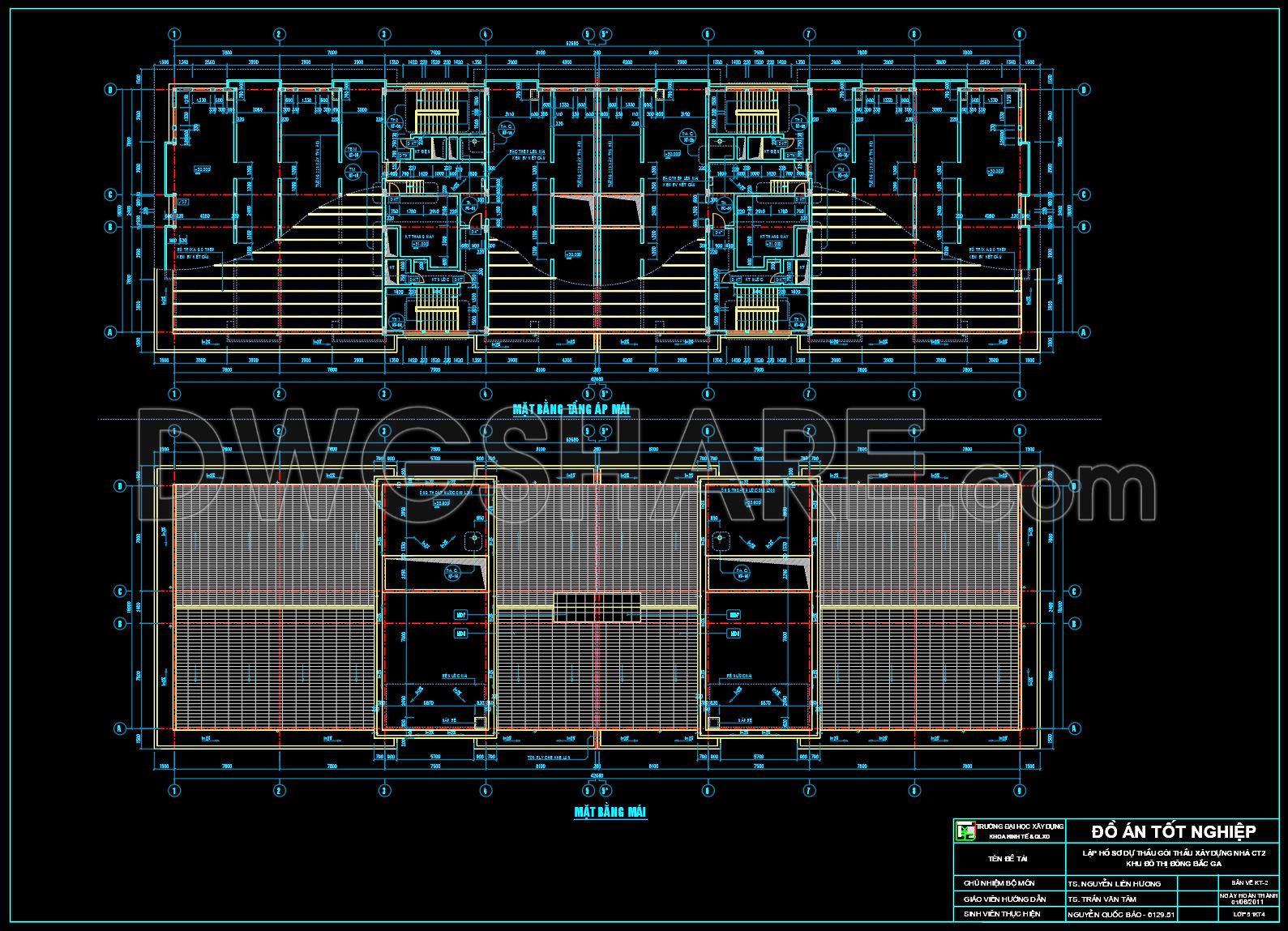

• Roof plan (Mặt bằng mái) illustrating technical spaces and roof coverage zones

All plans are dimensioned with axis grids, wall thicknesses, and detailed annotations typical of construction drawings.

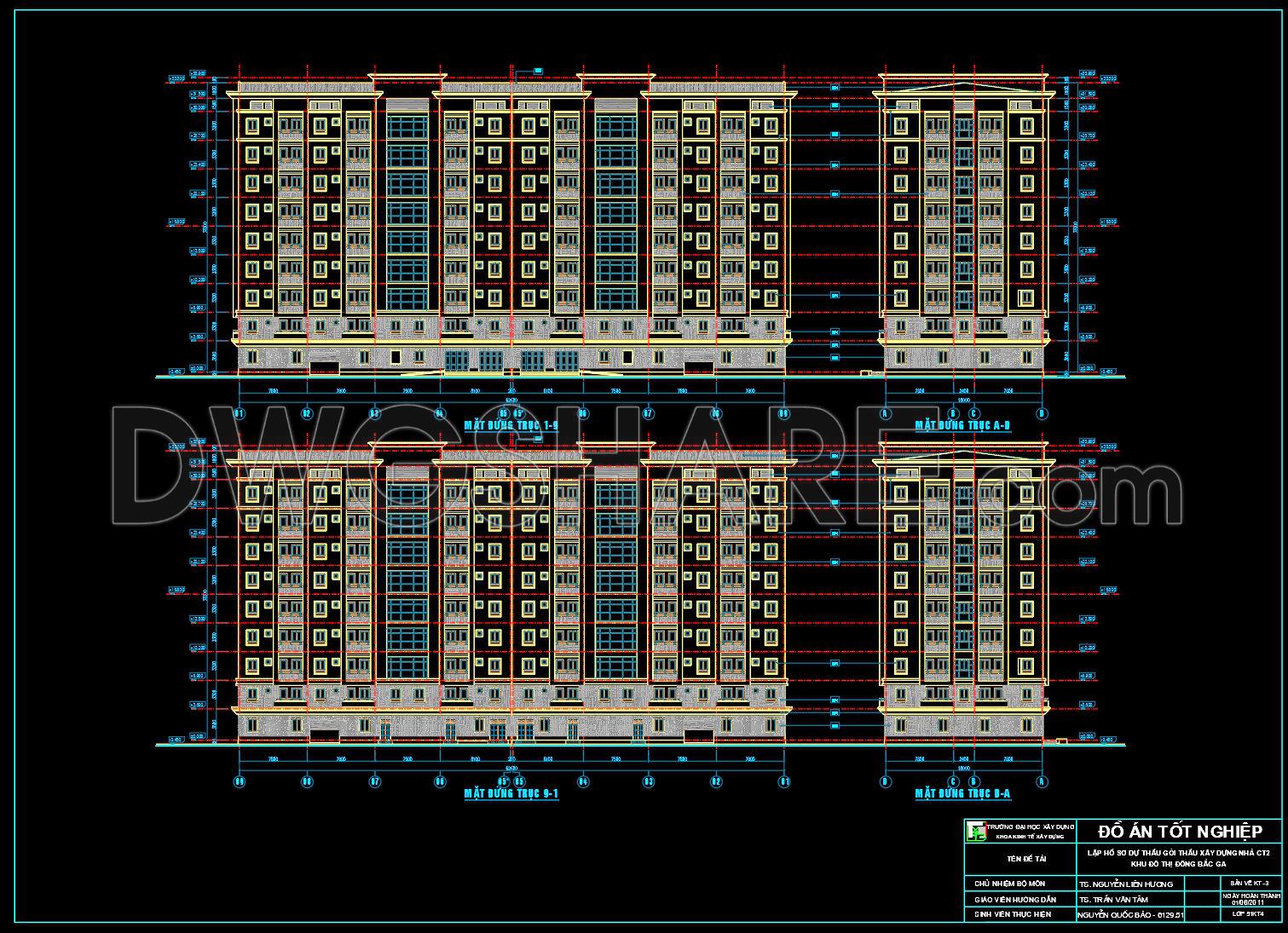

The set provides multiple elevations:

• Main elevation and side elevations (trục 1-9, trục A-I)

Clearly annotated:

• Floor heights and vertical dimensions
• Window and balcony arrangements
• Decorative façade elements

The façade follows a regular grid rhythm, with repeated openings and vertical articulation.

Project Description Report

You may also consider downloading other Apartment CAD drawings to support your project design

• File format: .DWG
• Size: 8.6 MB
• Source: DWGshare
• AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
