159.Details And Terms Of Typical Aluminum Windows In Autocad File

Choosing the correct window styles can impact the style, function, and comfort of a home. Position venting windows to take advantage of prevailing winds. Add character and design by coupling multiple windows together or opt for large picture windows to enjoy your view.

Casement Windows
Casement windows are hinged at the side and rotate outward to provide ventilation. Casements are easy to operate via their crank handle. Multipoint locks are standard casements windows and ensure an easy and secure fit when locked in place.

Awning Windows
Awning windows are hinged at the top and swing outward for ventilation. Awnings are easily operated with a crank handle and are secured by locks on each side. Awning windows can be paired with picture windows to allow for ventilation at the top or at the bottom of a window configuration.
Fixed Windows
Fixed windows feature an operating sash that has been fixed into place. While they do not offer ventilation, their appearance and sightlines are identical to a casement or awning window, making them ideal for multi-lite configurations.

Slider Windows
Horizontal sliders (also known as gliders) can slide to the left or right and offer a cost-effective yet energy-efficient choice. An integral pull rail allows the slider to operate effortlessly and robust locks keep the sash in place for a tight seal.
Single Hung Slider Windows
Single Hungs (also known as vertical sliders) feature a stationary upper panel and a venting lower sash that glides upward for ventilation. Hidden balances allow the sash to be opened to any desired height.

Curved Top Windows
Geometric shaped windows feature curved frames and are a great way to add character to a home. Choose from quarter rounds, half rounds, arches, segmental, ovals, and more.
Rake Windows
Rake windows are windows with irregular angles and sides. Often used to mimic roof lines, rake windows are a great way to add visual interest and character to a home.

Picture Windows
Picture windows feature insulated glass units glazed directly into the window frame. Also known as direct set windows, picture windows maximize visible light compared to other windows. Picture windows can be paired with operating windows, but they provide slightly unbalanced sightlines.

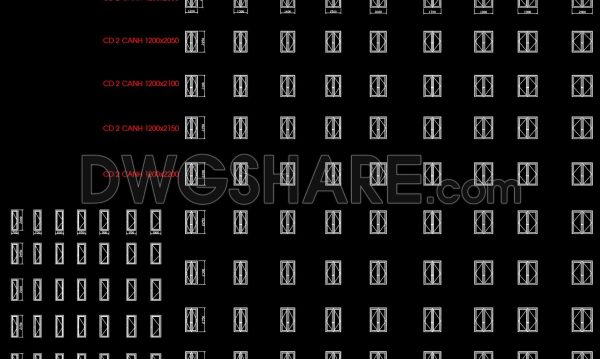

I also suggest downloading Cad Details Free Drawing Download

• File format: .DWG
• Size: 4.04 MB
• Source: Collect
• AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
