372. Free Bathroom CAD Details: WC Plans & Elevations Set
Advertisements

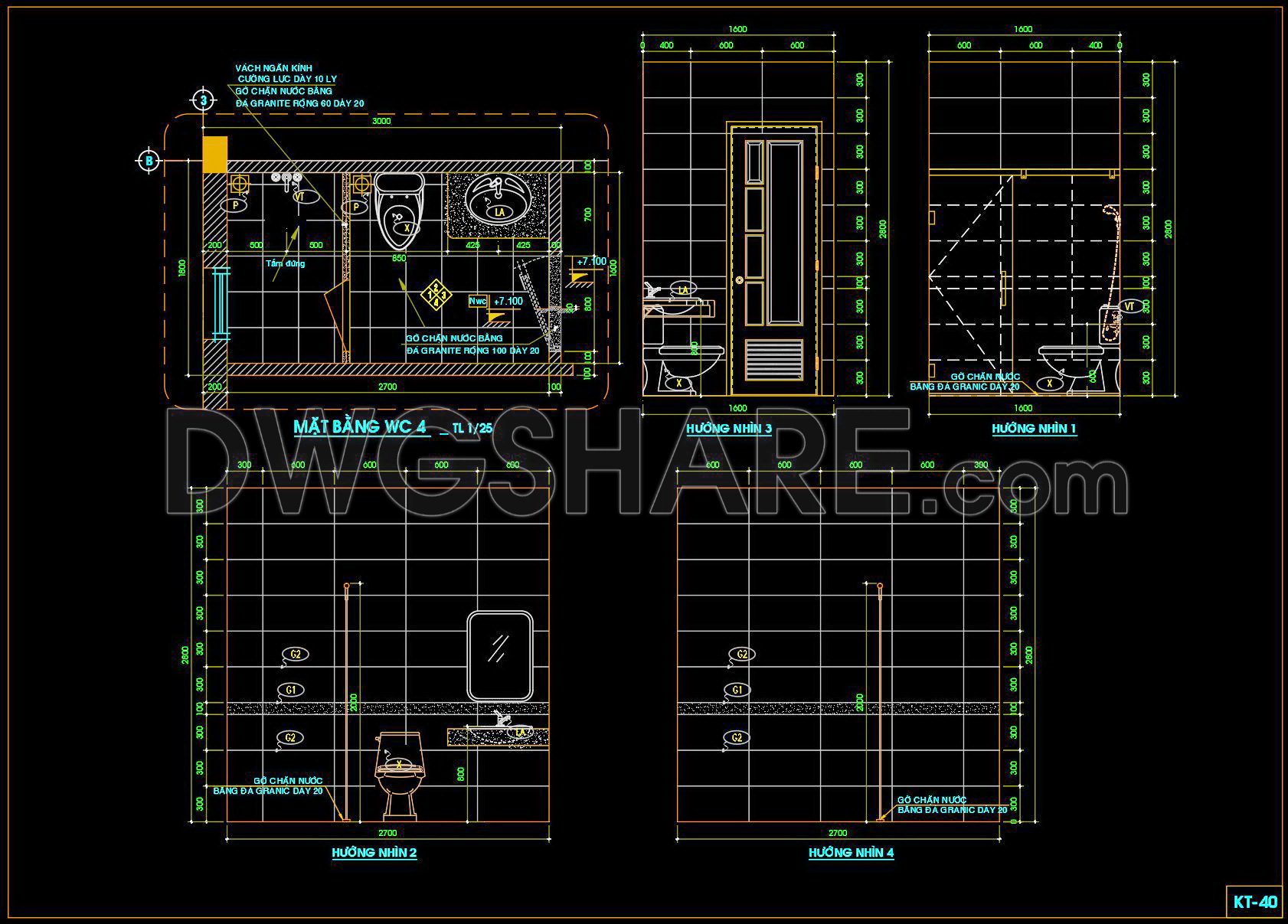

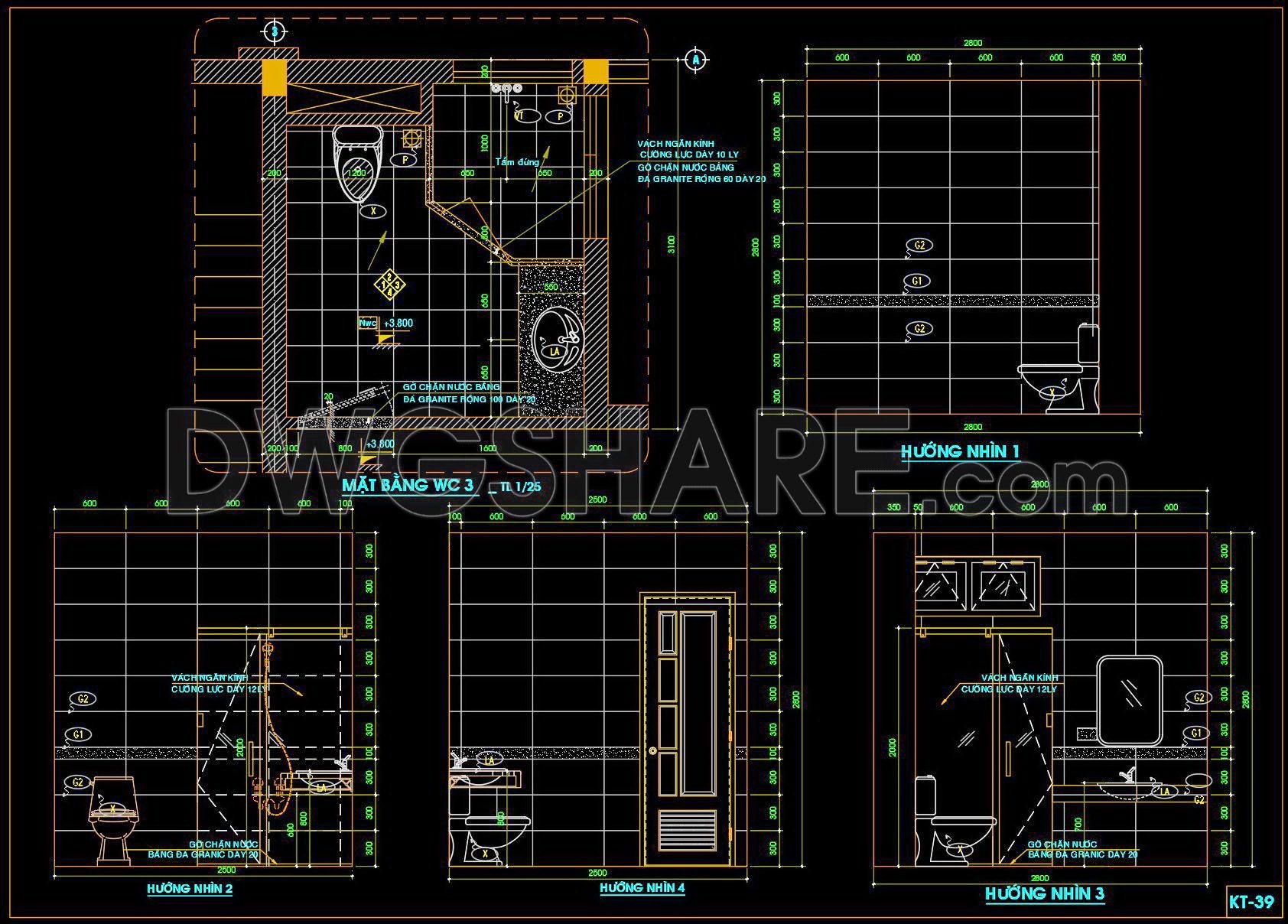

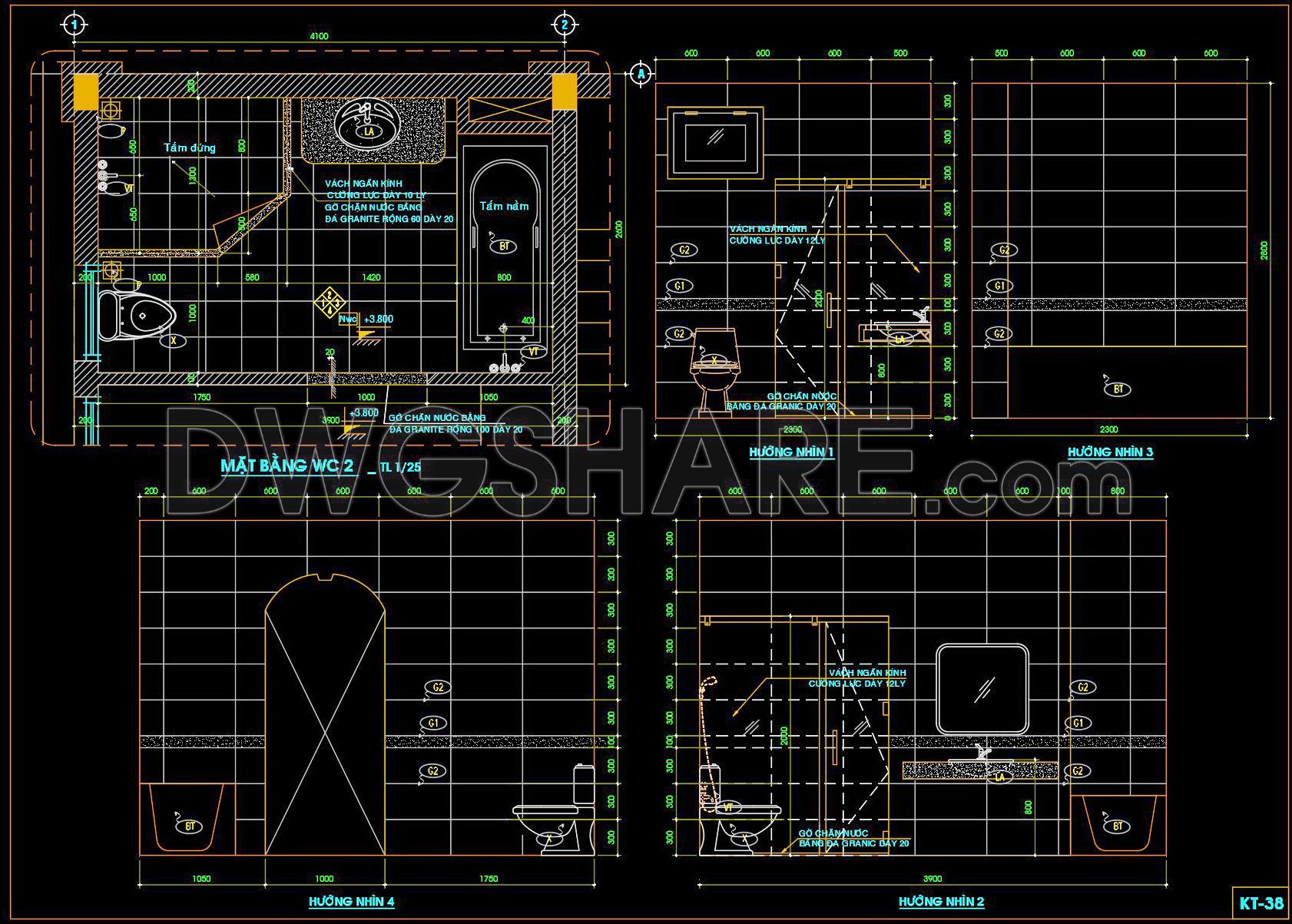

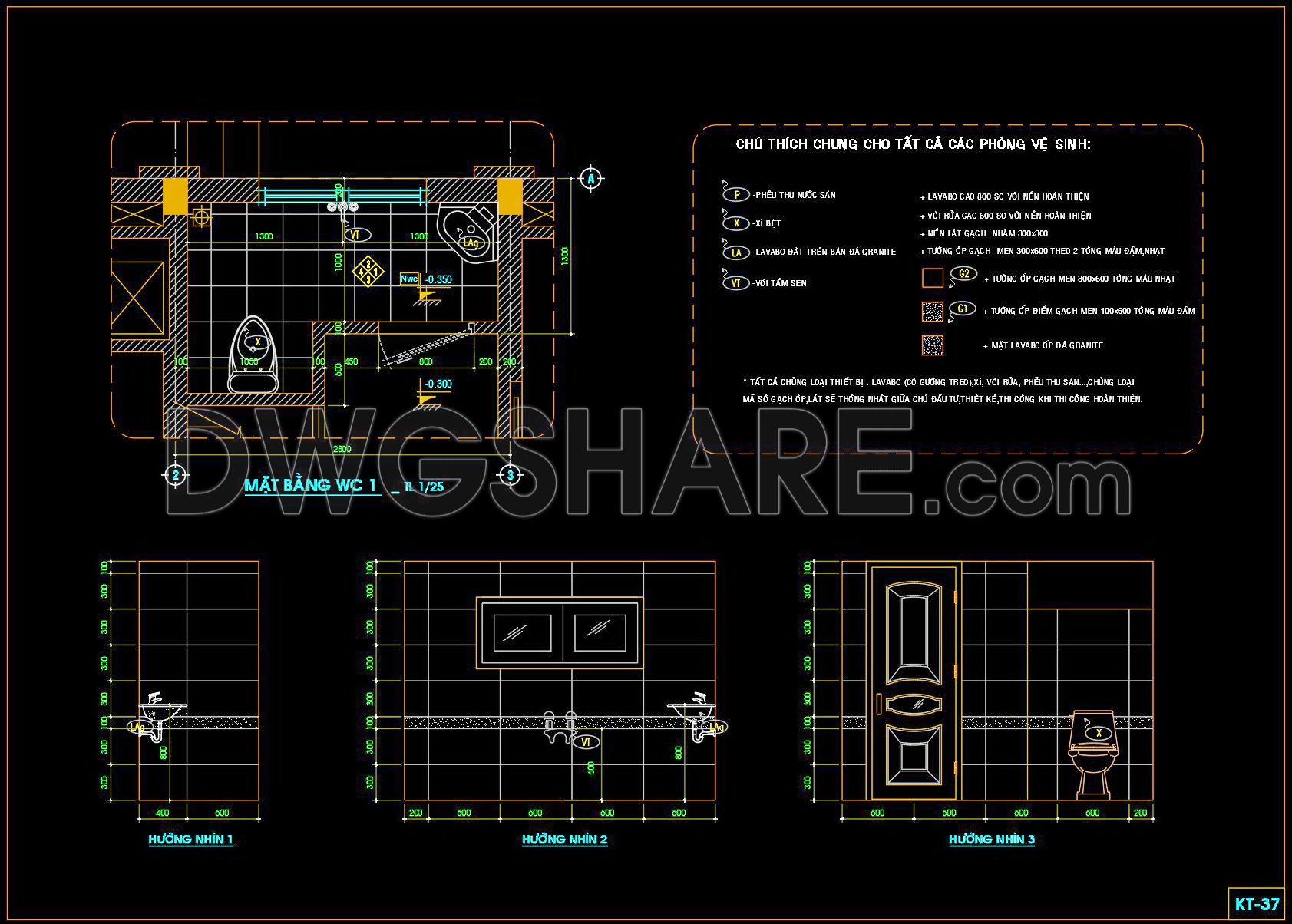

This CAD drawing set provides comprehensive design details for multiple modern bathroom (WC) layouts, encompassing drawings KT-37 through KT-40. Each WC (labeled WC 1 to WC 4) is clearly presented with an overall floor plan at a 1:25 scale and detailed elevation views, allowing for a clear visualization of the space and equipment layout.
The designs are diverse, catering to various needs, from basic WCs featuring a toilet, a lavatory on an elegant granite countertop, and a standing shower area, to more C WCs equipped with a bathtub (in WC 2) or a urinal (in WC 4). A key highlight of this drawing set is the detailed specification of finishing materials, such as various types of wall and floor tiles, 10mm thick tempered glass partitions for shower areas, and granite water sills. Importantly, the drawings also include crucial general notes on thorough waterproofing specifications for all wet areas, ensuring the durability and quality of the construction. This is a valuable reference document for architects, interior designers, and contractors during the design and construction phases of bathroom projects.
