908. 2-Story Family House Concept Design – CAD Drawings & 3D Renders

This architectural drawing package presents the conceptual design of a two-story family residence, accompanied by exterior 3D renderings that provide a clear visual representation of the completed project. Based on the drawings provided, the documentation includes floor plans, roof plan, elevations, building sections, and perspective views, offering an overall understanding of the architectural layout and exterior appearance.

The architectural style combines traditional pitched-roof elements with modern detailing. The main roof features a sloped tiled roof, while clean horizontal wall bands, large windows, and a glass balcony introduce contemporary accents. The front elevation emphasizes a balanced composition, with the primary entrance positioned beneath a covered porch and the second-floor balcony creating a visual focal point.

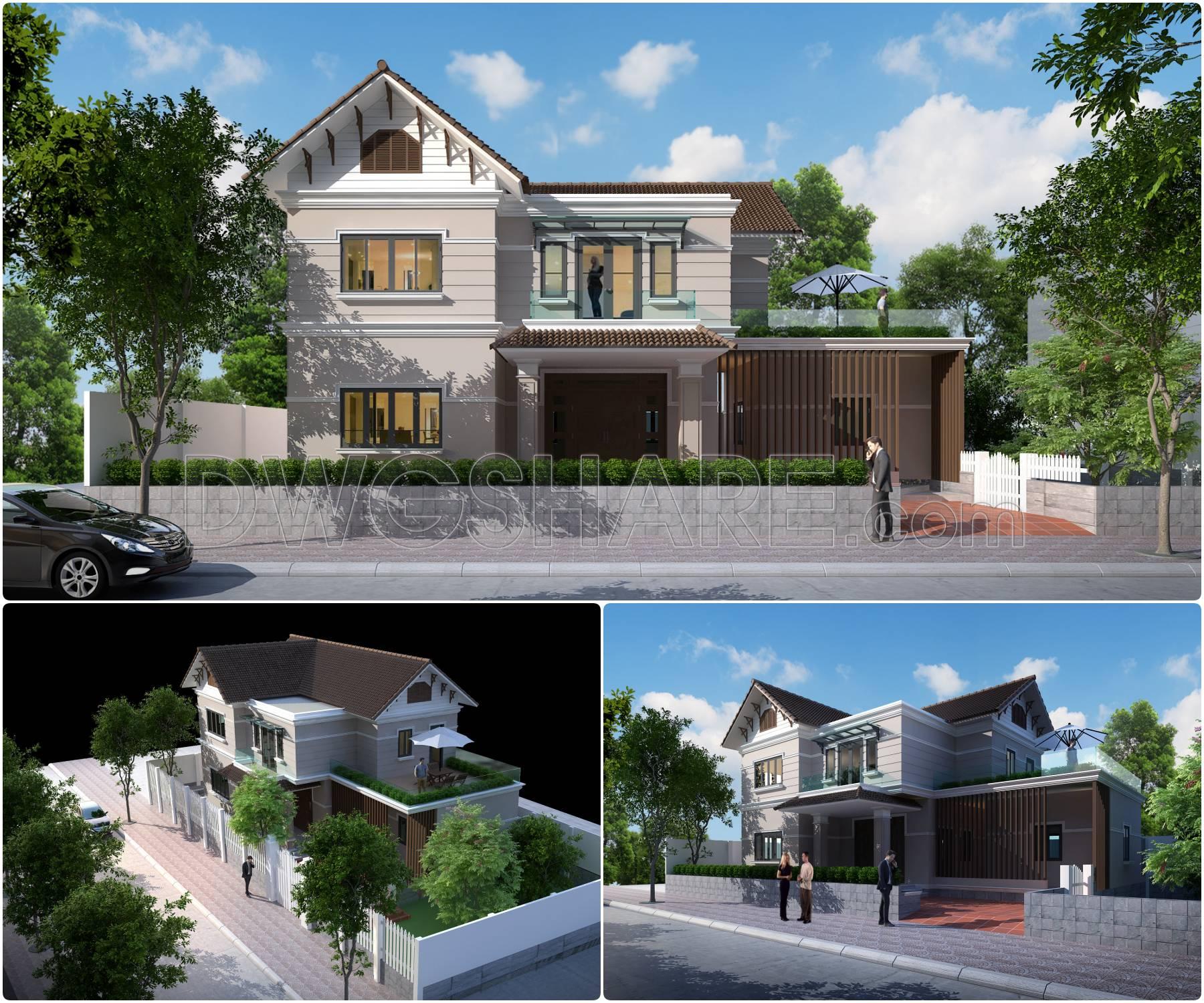

The 3D perspectives show the residence enclosed by a perimeter wall with landscaped planting along the frontage. A paved entrance leads directly to the covered parking area located on one side of the house. Above this extension, the design incorporates an accessible roof terrace enclosed by glass railings. Outdoor furniture shown in the rendering indicates that this terrace can serve as an open-air recreational space, although the specific intended function is not identified in the drawings.

The ground-floor plan illustrates the primary living spaces of the residence. A central staircase connects the two floors, while multiple enclosed rooms are arranged around the circulation core. The drawings clearly distinguish walls, openings, doors, windows, structural grids, and room boundaries. Although several room labels are visible, not all can be read clearly from the provided images; therefore, only the overall spatial organization can be described with confidence.

The second-floor plan follows a similar organizational approach. Several enclosed rooms are connected by a central circulation area, and direct access is provided to the front balcony as well as the large outdoor terrace positioned above the covered parking area. Planters are also illustrated near the terrace, adding greenery to the upper level.

A dedicated roof plan documents the configuration of the pitched roof system. The drawing identifies the roof ridges, slopes, hips, valleys, and overhangs while illustrating how the roof geometry adapts to the different building volumes. The terrace opening within the roof layout is also clearly represented.

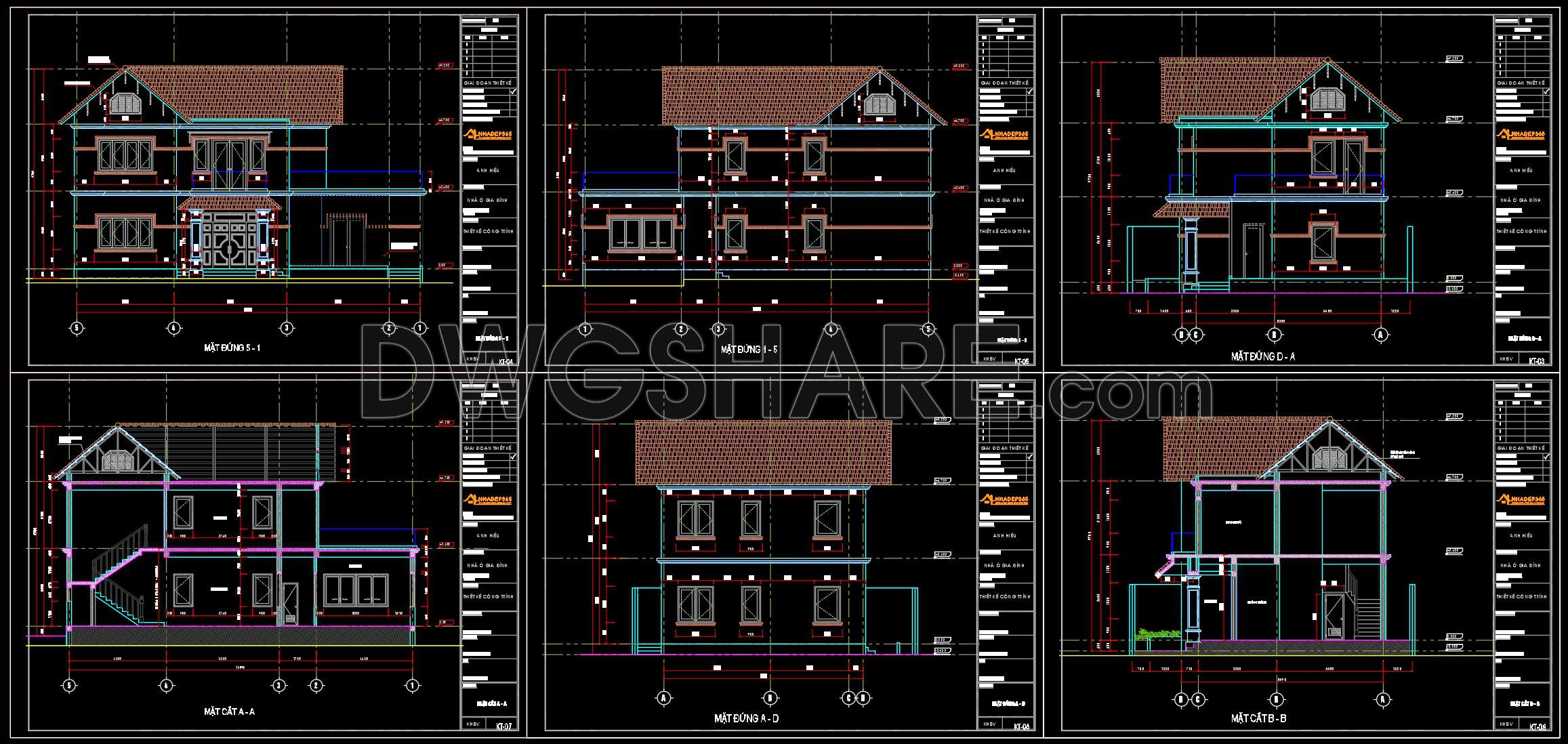

The drawing package includes multiple architectural elevations representing all principal façades. These elevations illustrate exterior wall treatments, window arrangements, roof proportions, balcony design, entrance canopy, and the relationship between the two-story main volume and the attached side structure. Material hatch patterns and façade articulation provide sufficient information for architectural presentation and construction reference.

Building sections further explain the internal organization of the house. The sections reveal floor-to-floor relationships, stair configuration, roof framing profile, ceiling heights, and the connection between the foundation, walls, and roof structure. These views complement the floor plans by illustrating the building’s vertical composition and construction profile.

The accompanying perspective renderings reinforce the architectural intent shown in the technical drawings. The residence features a light-colored exterior finish contrasted with dark roof tiles and warm-toned vertical screening on the side extension. Large windows allow generous daylight into the interior while maintaining a balanced façade composition.

Landscape elements are incorporated throughout the site, including lawn areas, trees, shrubs, and paved walkways surrounding the residence. These features soften the architectural massing and create a pleasant transition between the building and the surrounding property.

Overall, this CAD package provides a comprehensive architectural concept for a modern two-story family house. The documentation combines technical construction drawings with realistic 3D visualizations, allowing designers, builders, and homeowners to understand the building layout, exterior appearance, roof configuration, and overall architectural composition before construction begins.

908. 2-Story Family House Concept Design – CAD Drawings & 3D Renders

I also recommend downloading other Houses CAD drawings for your project reference.

• File format: .DWG; .JPG
• Size: 2.80 MB
• Source: DWGshare
• AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
