910. Modern 3-Story Corner House Design CAD Drawings and Architectural Visualization

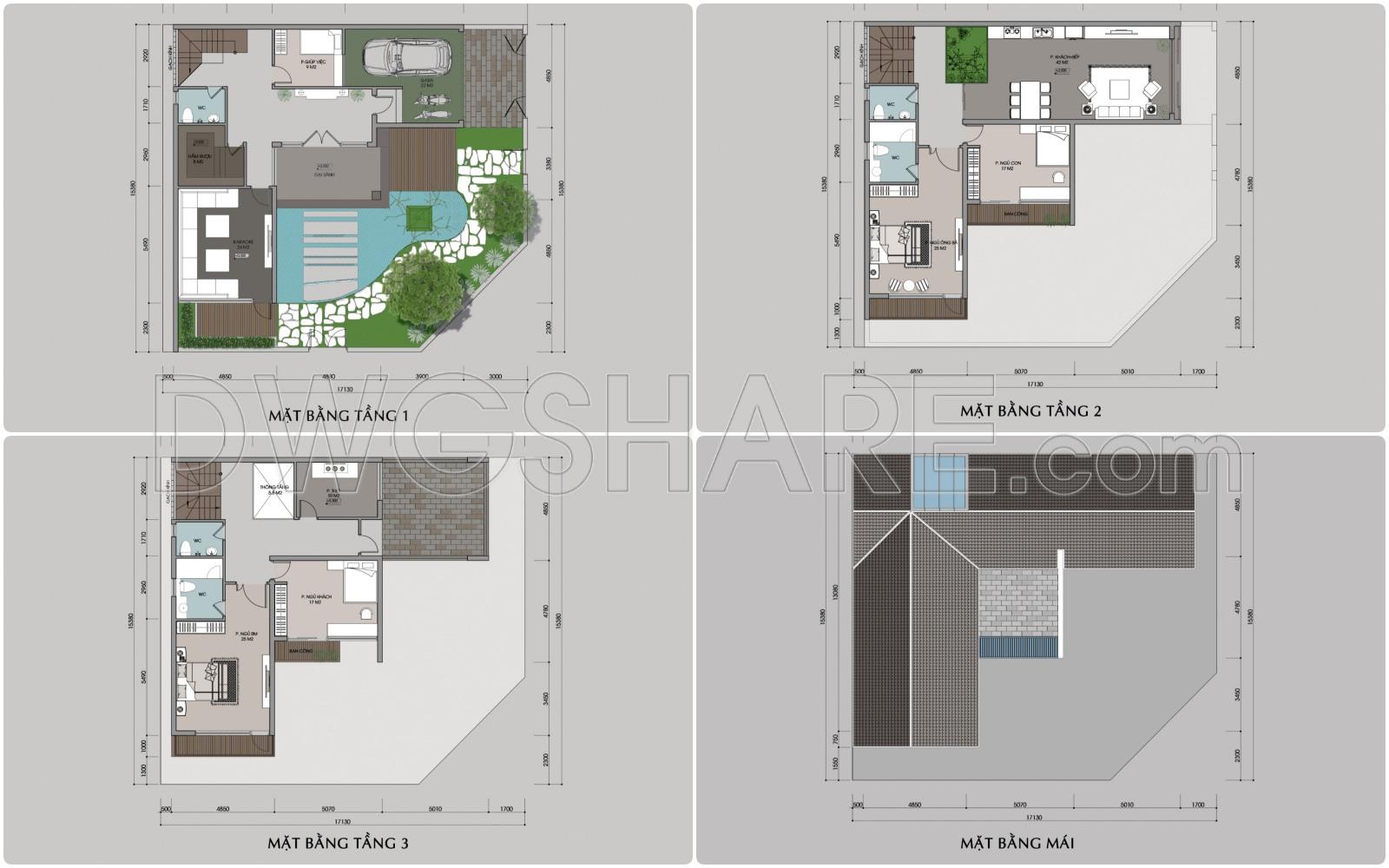

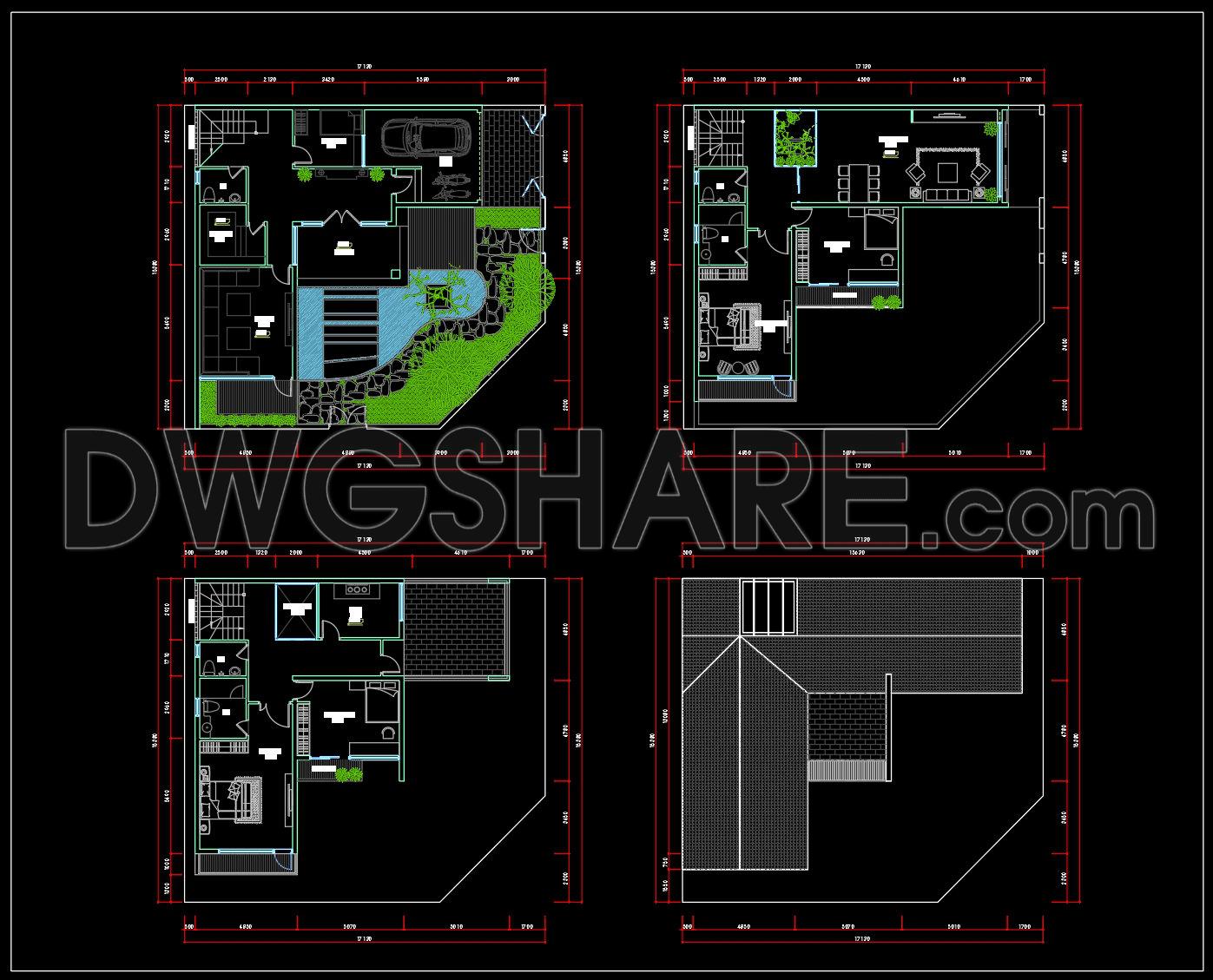

From the overall floor plans, it is clear that this residence was developed for an irregular corner lot rather than a standard rectangular site. Instead of forcing the building into a rigid layout, the design takes advantage of the plot’s unique geometry to create generous outdoor spaces, landscaped areas, and a more dynamic architectural composition.

The ground floor is primarily dedicated to shared family activities. A garage is positioned near the front of the property and connects conveniently to the main entrance. Adjacent to it are the staircase and supporting service spaces. At the center of the layout sits a spacious living room that enjoys views toward the landscaped courtyard and water feature located along the side of the house.

One of the most distinctive elements on this level is the ornamental pond combined with a stepping-stone walkway. Beyond its decorative function, this feature creates a visual transition between the building and the surrounding site. The landscaped area includes greenery, natural stone paving, and outdoor seating zones, helping soften the architectural mass while enhancing the connection to nature.

The second-floor plan introduces more private living spaces. A family lounge occupies a prominent position and opens directly onto a large front-facing balcony. This area provides a comfortable setting for relaxation, reading, or informal family gatherings. Additional bedrooms and bathrooms are arranged around the central circulation core, ensuring both convenience and privacy.

On the third floor, the design continues with additional sleeping areas and a spacious outdoor terrace. Compared with the lower levels, the built footprint is reduced, allowing for larger open-air spaces. This approach lightens the visual appearance of the upper floors and creates flexible outdoor areas that can accommodate a variety of activities.

The roof plan illustrates a pitched tile roofing system formed by intersecting roof volumes. This solution is commonly used in residential architecture due to its efficient rainwater drainage and strong visual character. Roof openings and flat-roof sections appear in selected areas, helping improve natural ventilation and daylight penetration throughout the interior.

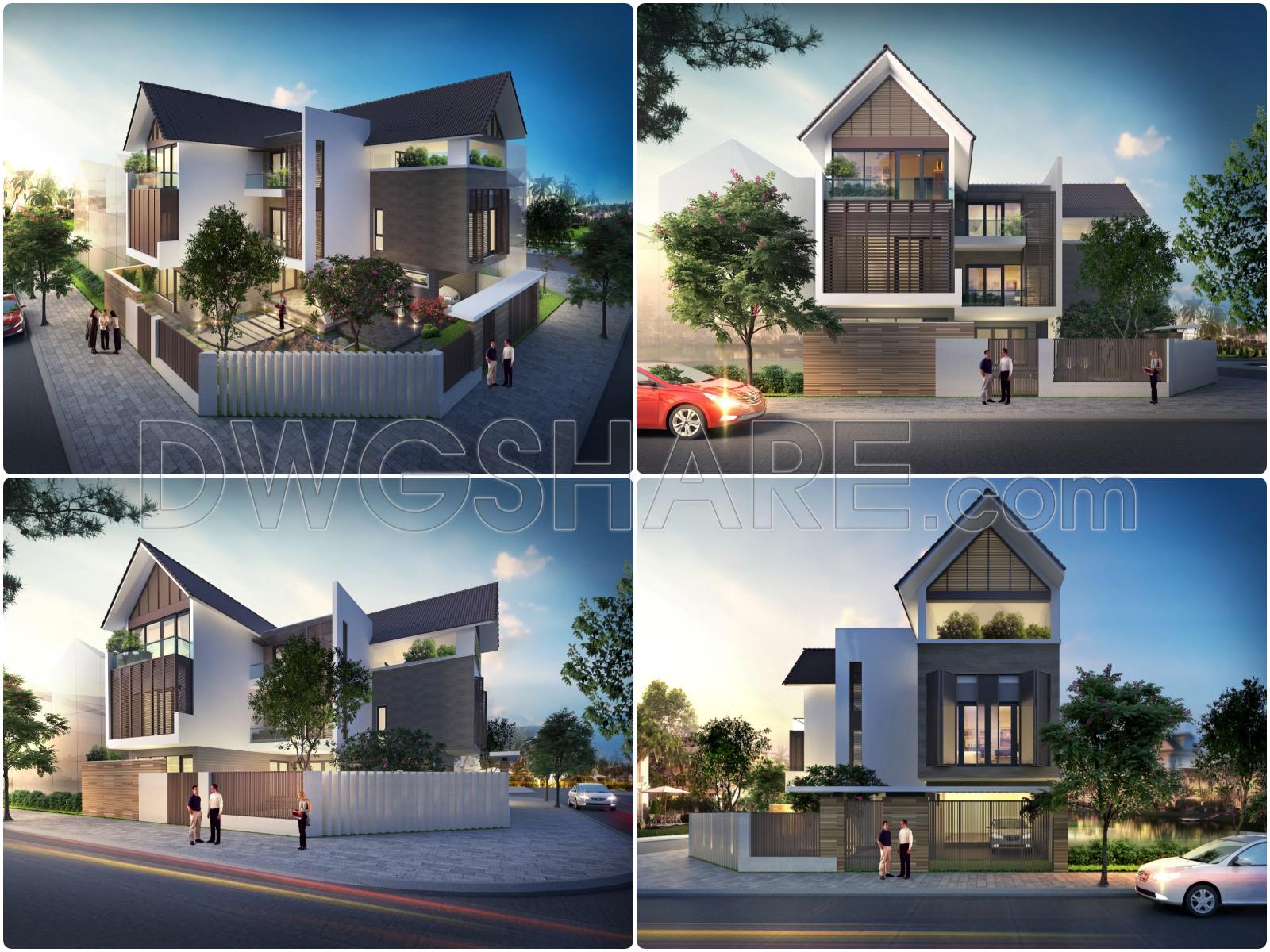

The 3D renderings reveal a contemporary architectural style characterized by clean lines and carefully balanced proportions. The building combines white exterior walls, dark gray cladding panels, and a dark-colored pitched roof. This material palette creates contrast while maintaining a refined and elegant appearance.

The façade design incorporates multiple layers of space through recessed balconies, terraces, and semi-open outdoor areas. These elements add depth to the elevations and prevent the building from appearing flat or monotonous. Vertical screening panels are strategically placed to provide both architectural interest and solar protection for the glazed areas.

Large windows and glass openings are used extensively throughout the design. This enhances the relationship between indoor and outdoor spaces while maximizing natural daylight and visual openness.

Overall, the project demonstrates a thoughtful response to the challenges of a corner lot. By integrating landscaped gardens, water features, outdoor living spaces, and contemporary architectural forms, the design creates a comfortable and visually engaging residence suited to modern urban living.
