433. Free CAD Drawings – Two‑Story Family Home, 360 Square Meters
This CAD drawing set provides a comprehensive view of the architectural design of a 2‑story family house with a spacious area, perfectly suited for modern living needs. The documentation includes several essential drawings: functional floor plans, roof plan, elevation drawings, sectional drawings, and detailed architectural elements.

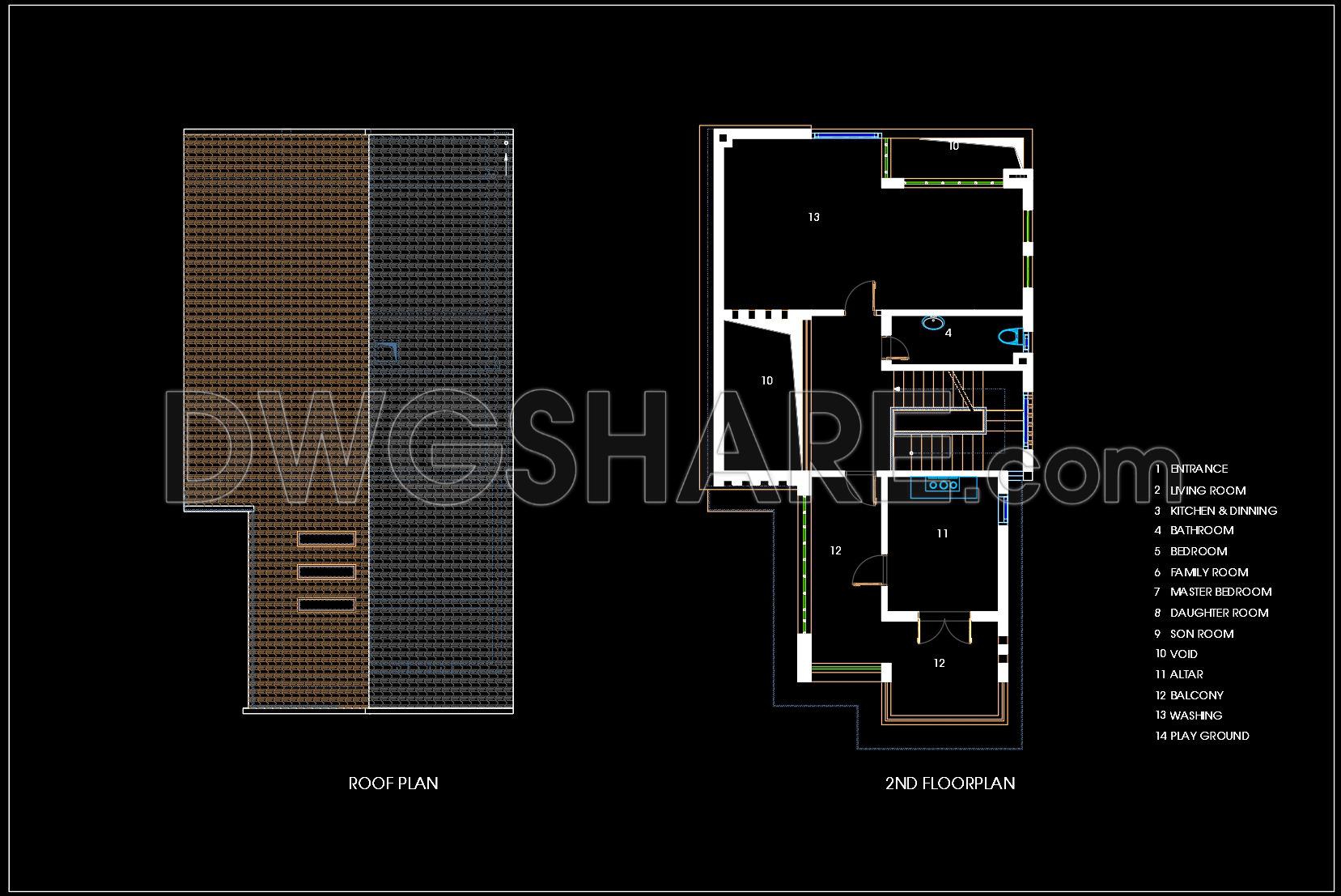

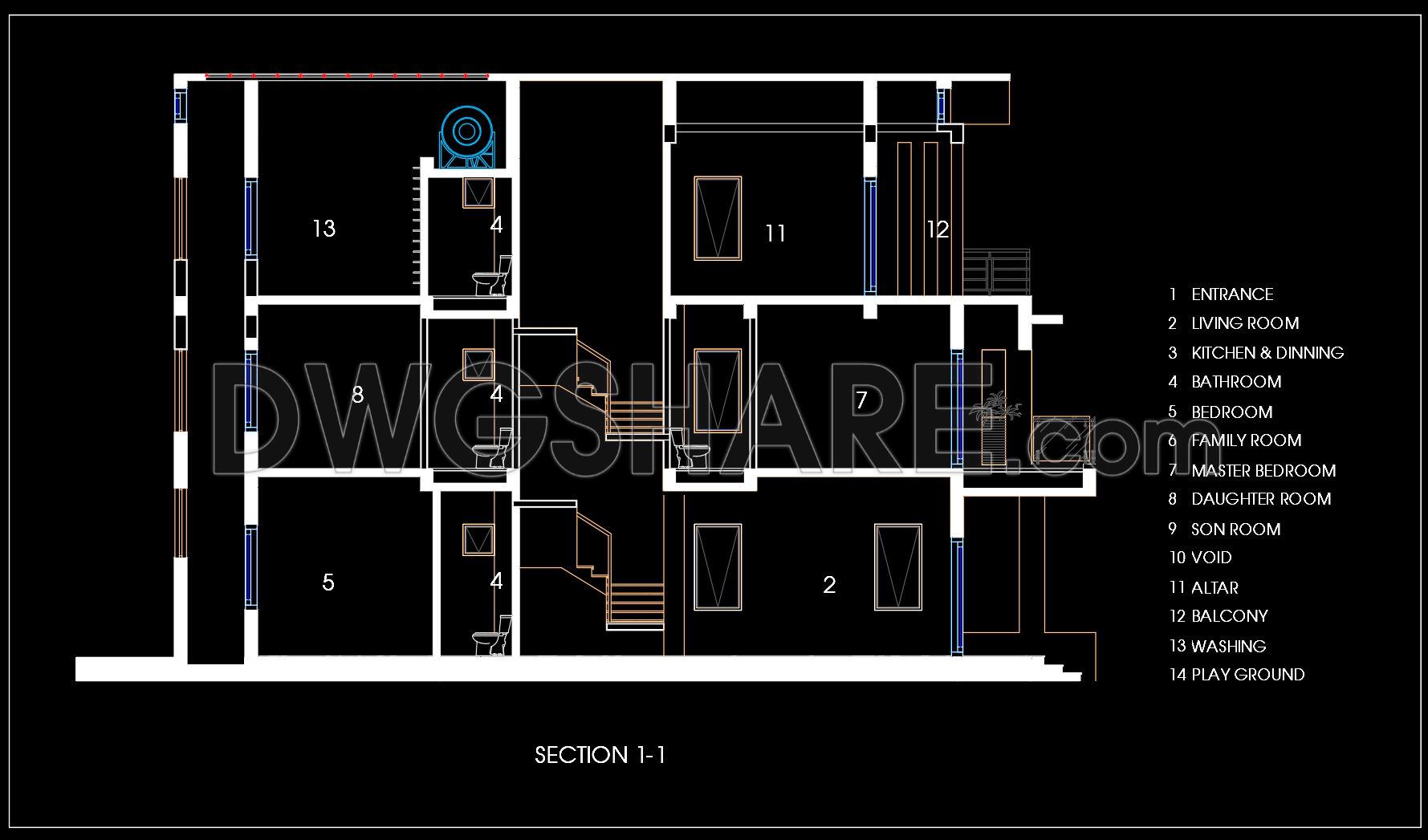

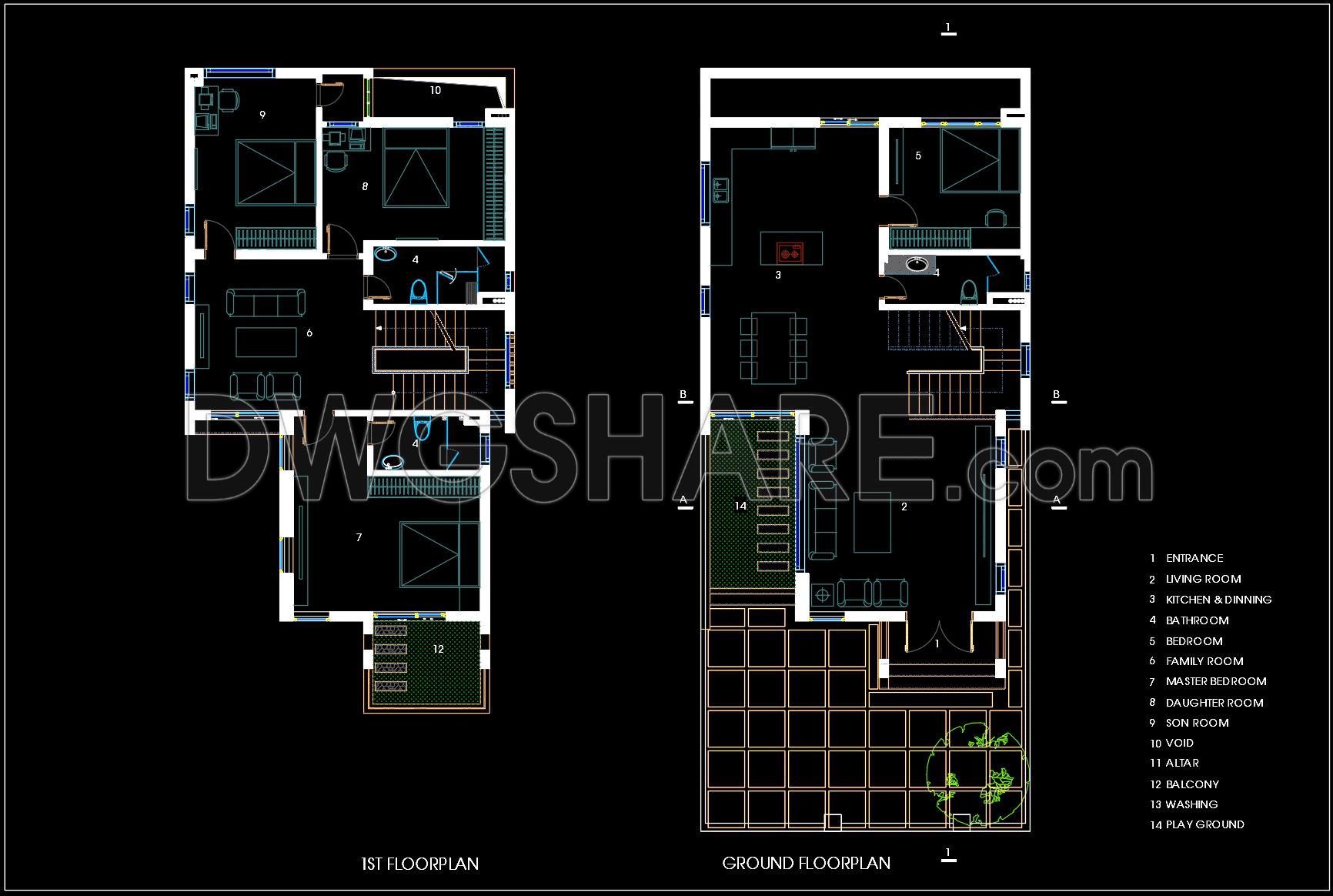

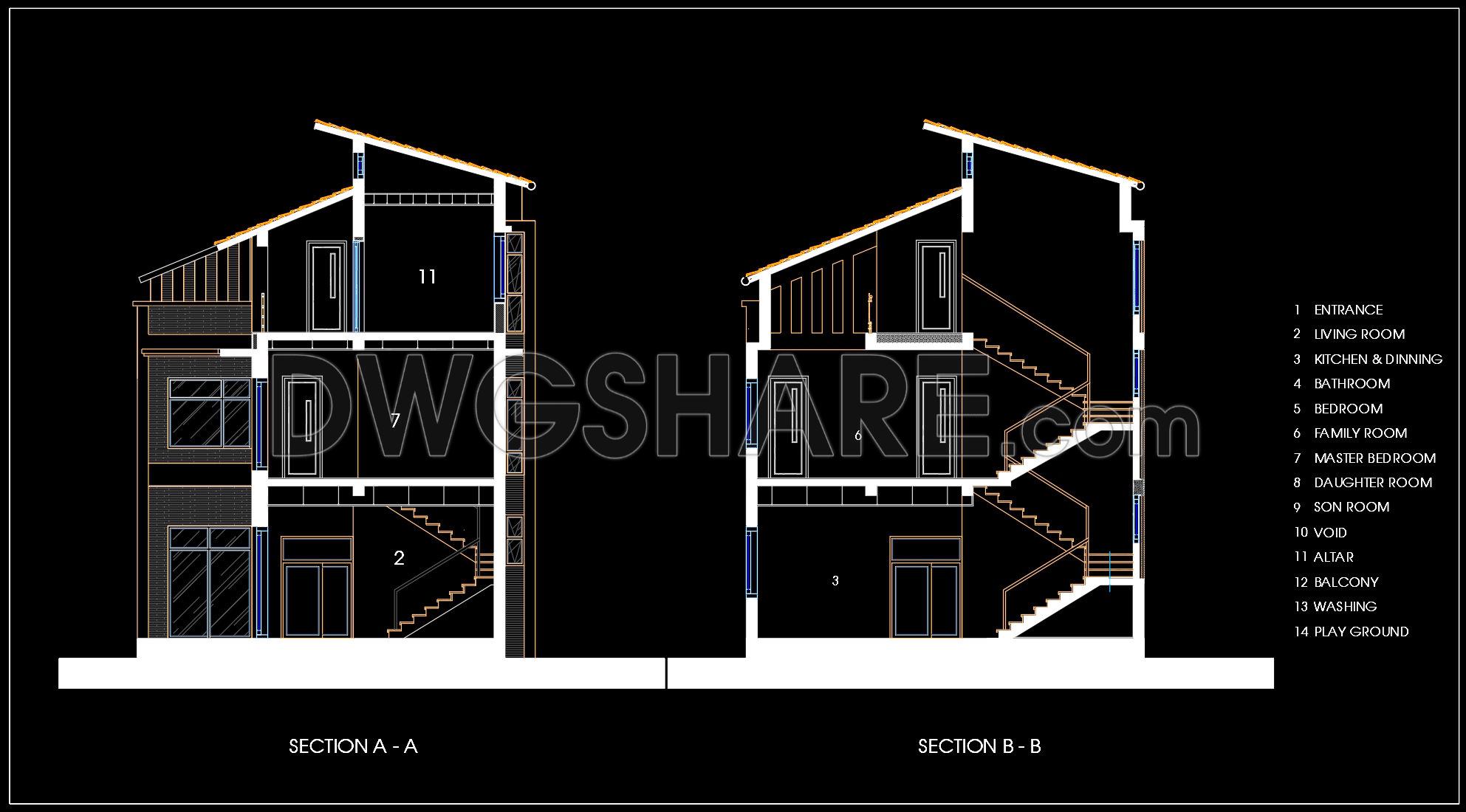

On the first floor, the layout is arranged logically with a living room, kitchen + dining area, bedroom, bathroom, and a playground, ensuring convenience. The second floor focuses on private spaces with a master bedroom, son’s room, daughter’s room, a family room, and an extended balcony. The roof plan clearly illustrates the roof structure, drainage system, and technical details required for construction. The elevation drawings show the architectural form, proportions of doors and windows, and decorative facade details. The section drawings provide a clear visualization of vertical spatial organization, from the living room and kitchen to the altar room and drying yard.
Additionally, the set includes a 3D facade perspective, offering a realistic image of the overall architecture, supporting both investors and architects in aesthetic evaluation. All drawings are thoroughly annotated, with overall and clear dimensions, ensuring high accuracy.
This design package is an essential resource, helping optimize functionality, reduce costs, and improve construction efficiency. With this CAD drawing set, users can easily reference, modify, and apply it to family house projects of 2 stories with a 360m² area.
I also recommend downloading other House CAD drawings for your project reference.
- File format: .DWG
- Size: 370 KB
- Source: DWGshare
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
