812. Download CAD Drawings of a Modern Single-Story House with 3 Bedrooms

In the realm of architecture and construction, CAD drawings are invaluable for visualizing and executing designs with precision. The provided CAD DWG files showcase a modern single-story house with 3 bedrooms, presenting crucial documentation that facilitates effective project realization.

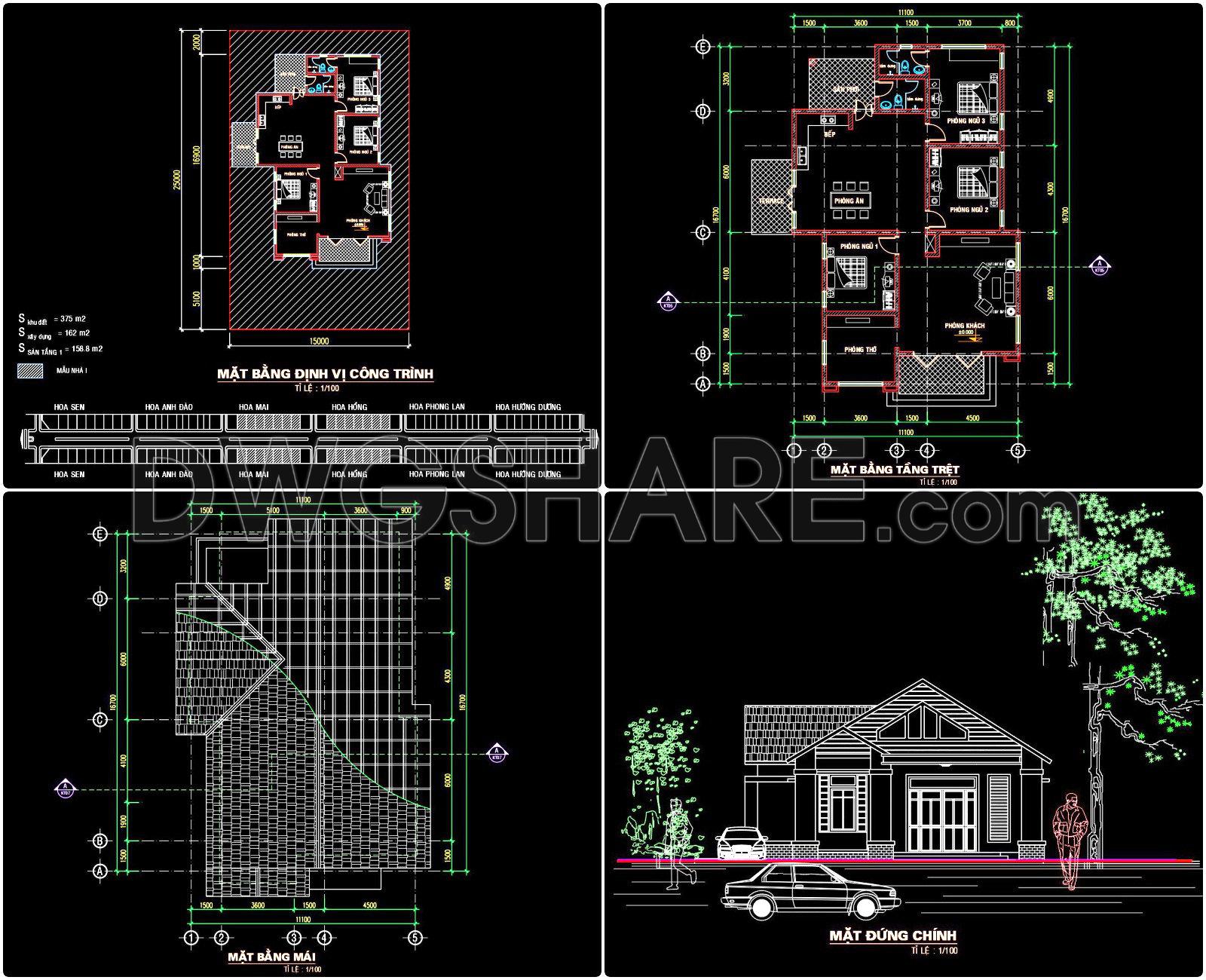

Starting with the bold yet essential architectural floor plan, the layout meticulously delineates the spatial arrangement of the 3-bedroom house. The plan explicitly marks each room, illustrating a harmonious flow between the living, dining, and kitchen areas, ensuring optimal functionality. Architects and interior designers find these plans indispensable during design development, allowing them to explore layout options and optimize the use of available space. Key elements such as grid lines, dimensions, and level markers are clearly marked, enabling detailed understanding and facilitating error-free execution on-site.

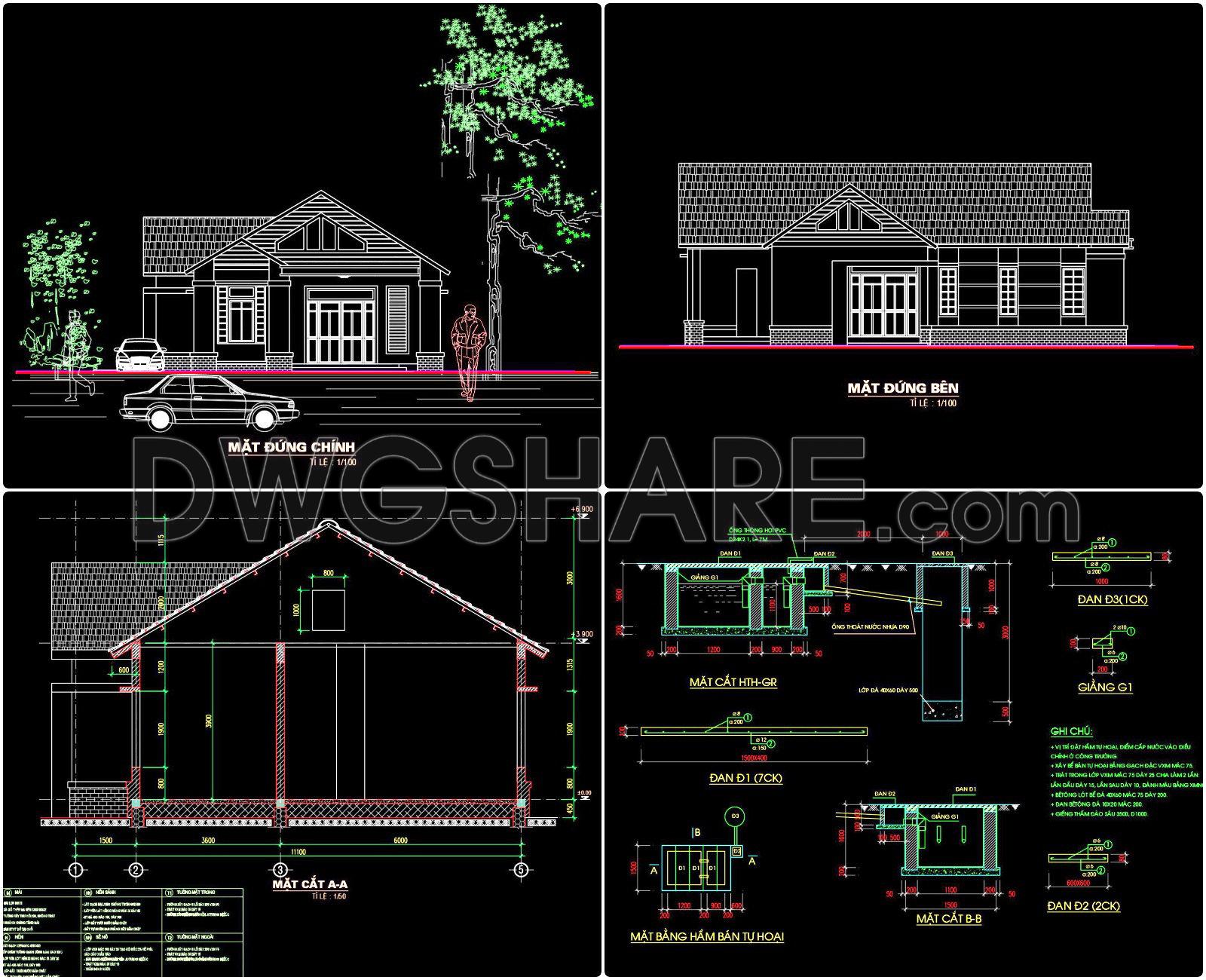

Complementing the floor plan are the elevations and sections. These drawings provide an insightful view into the building’s vertical dimensions and exterior aesthetics. Elevations detail the facade, showcasing window placements, door designs, and roofing, which are pivotal for achieving the desired architectural style. Sections, on the other hand, dissect the structure to reveal internal relationships and construction details. This detail is crucial for construction teams, offering clarity on material requirements and helping coordinate tasks on-site. The specific inclusion of scale indicators ensures that every measurement is reliable, aiding builders and contractors in maintaining accuracy.

Moreover, these CAD drawings incorporate construction detail drawings that emphasize specific components like door and window installation, roofing details, and structural connections. Such drawings are integral for construction teams and are invaluable resources during the building phase, reducing errors and optimizing costs without compromising quality. Given that CAD files are easily modifiable in software like AutoCAD, they allow architects to make quick adjustments, fostering improved communication between the design and construction teams.

The practical value of these CAD drawings extends beyond immediate construction needs. Offered freely, they serve as a vital resource for design reference, enabling study and research by students and professionals alike. They also provide an excellent foundation for further technical drawing development, ensuring that the design and build process remains efficient and coherent.

I also recommend downloading other Houses CAD drawings for your project reference.
