280. Free CAD Ventilation Drawings – Basement & Floors 1-2 of 5-Star Hotel

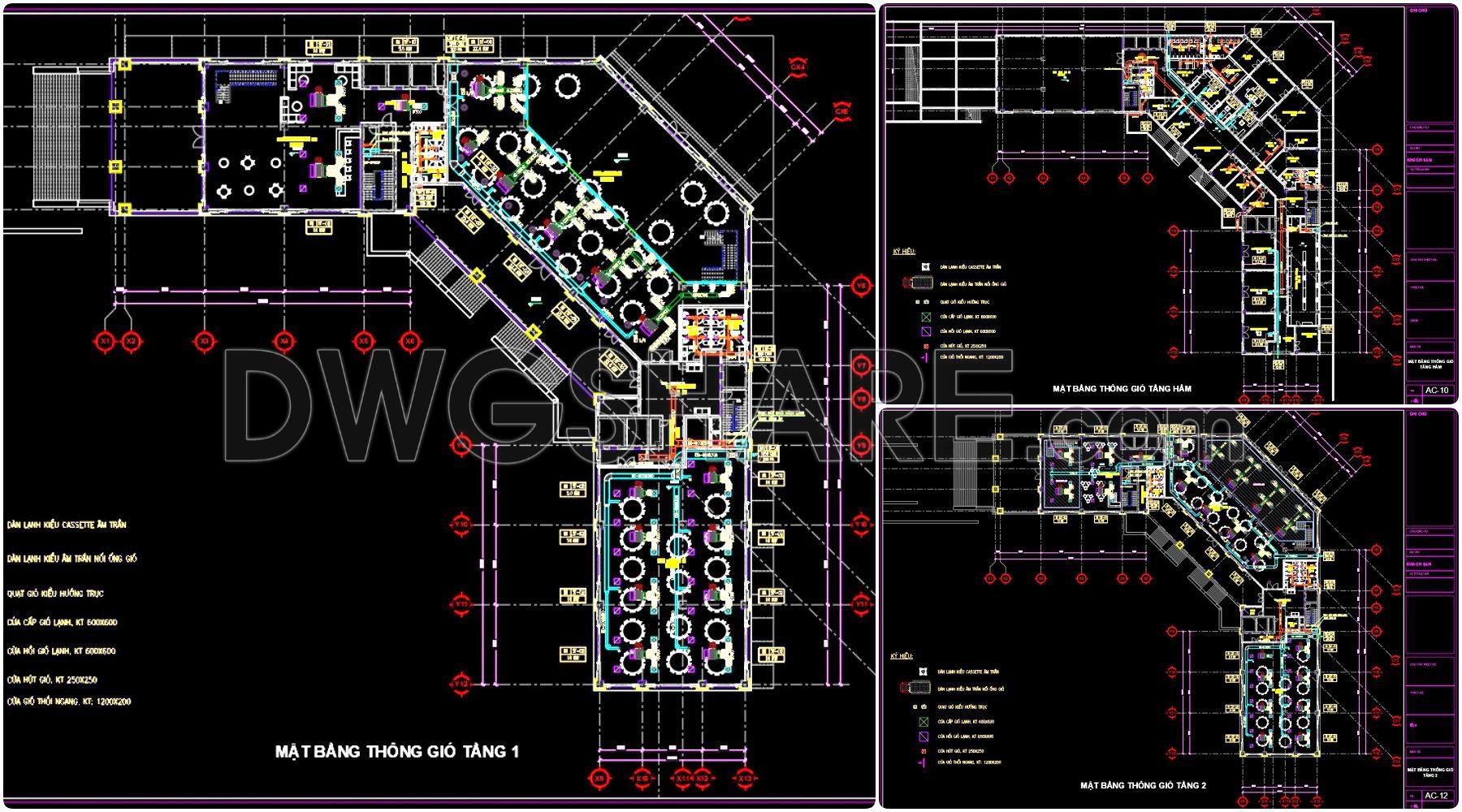

These free CAD ventilation drawings offer detailed insights into the basement and the first two floors of a five-star hotel. Featuring intricate layouts, these drawings are essential tools for architects and builders alike. Each view provides vital information on the ventilation systems, ensuring optimal design and functionality.

Key components of these CAD files include:

Detailed floor plans for efficient ventilation
Comprehensive design elements for basement systems
Advanced layouts for Floors 1 and 2
Seamless integration with other architectural elements

The drawings cover varying dimensions, revealing the precise spatial arrangements required for high-end hotel infrastructure. Using these CAD drawings enhances accuracy, allowing for easy modifications and fostering seamless collaboration among design teams. Their availability for free download encourages wide access, promoting cost-effective solutions in architectural and construction projects. The use of these files benefits interior design and construction professionals by optimizing layouts and ensuring high-quality outcomes.

I also recommend downloading other Hotels CAD drawings for your project reference.

File format: .DWG
Size: 3 MB
Source: DWGshare
AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process

Additionally, the complete set of CAD design drawings is available for free download below.
The sections included in the drawings of this 5-story hotel with a total area of 1,700m² are as follows:

Architectural design drawings
Structural design drawings
MEP design drawings
HVAC design drawings
3D perspective rendering of the project

FULL DOWNLOAD
