102. Free Download Typical Layout Plan of 8-Storey Hotel

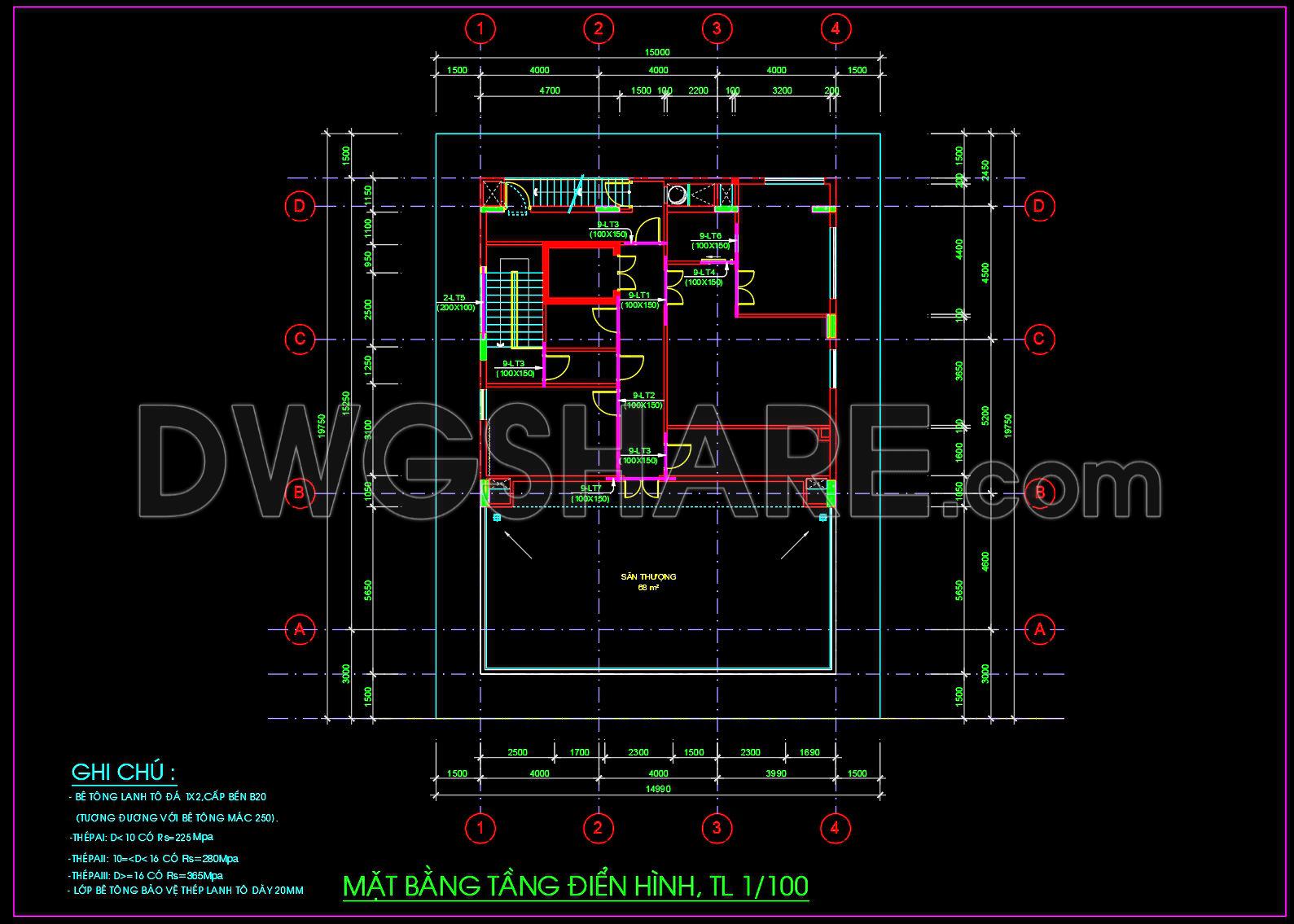

This CAD drawing illustrates the typical floor plan of a building at a 1/100 scale. The plan uses a grid system labeled A–D and 1–4 to define spatial organization, with detailed dimensions provided in millimeters. Rooms, doors, staircases, and the terrace are clearly arranged, with standardized symbols for windows and doors. The notes in the lower corner specify technical requirements, including concrete grade B20 (equivalent to M250), steel strength according to diameter, and a 20mm protective concrete layer for reinforcement. This document is an essential resource for architectural design, construction, and quality control.
I also recommend downloading other hotels CAD drawings for your project reference.
- File format: .DWG
- Size: 508 KB
- Source: DWGshare
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process

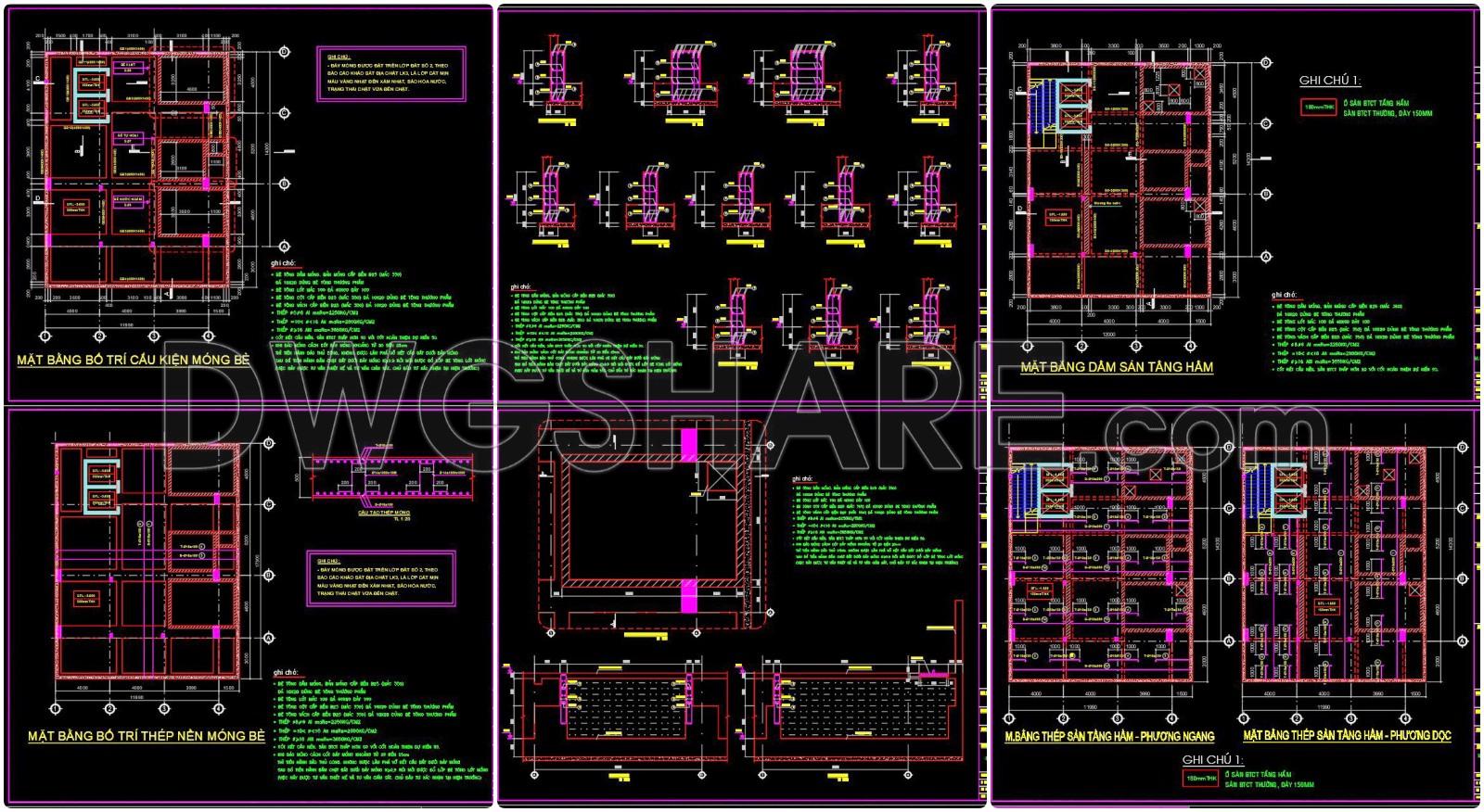

Additionally, the complete set of CAD design drawings is available for free download below.

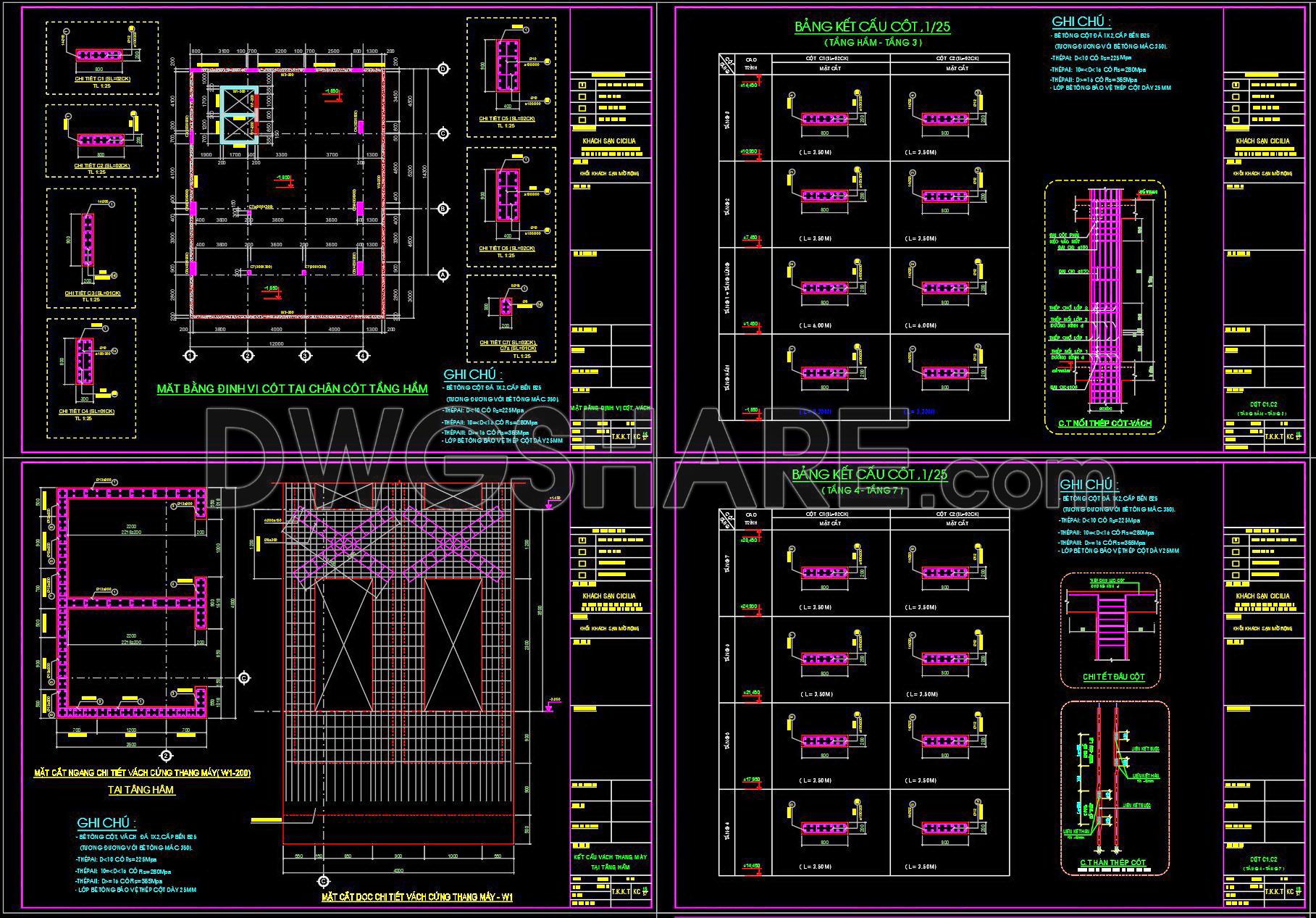

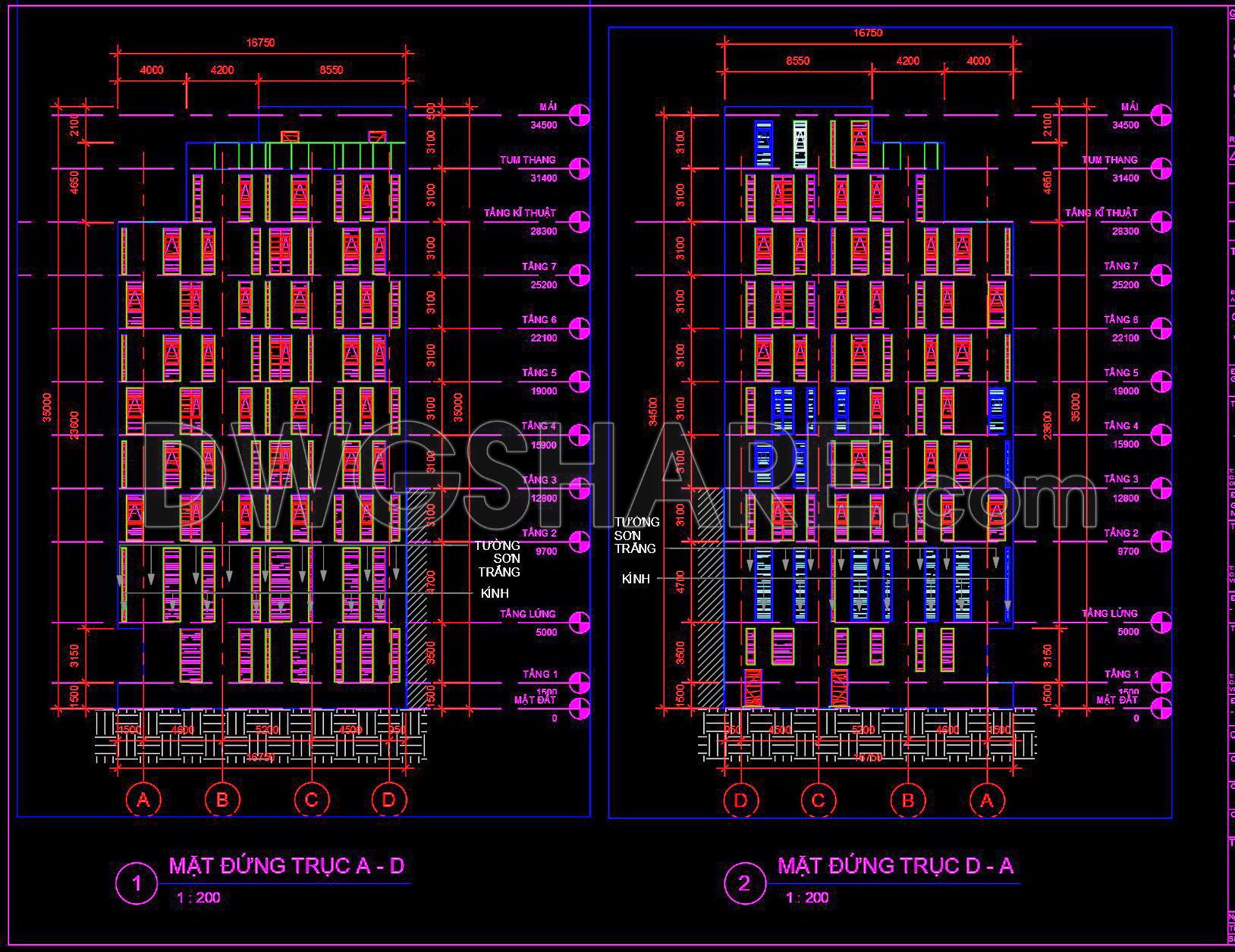

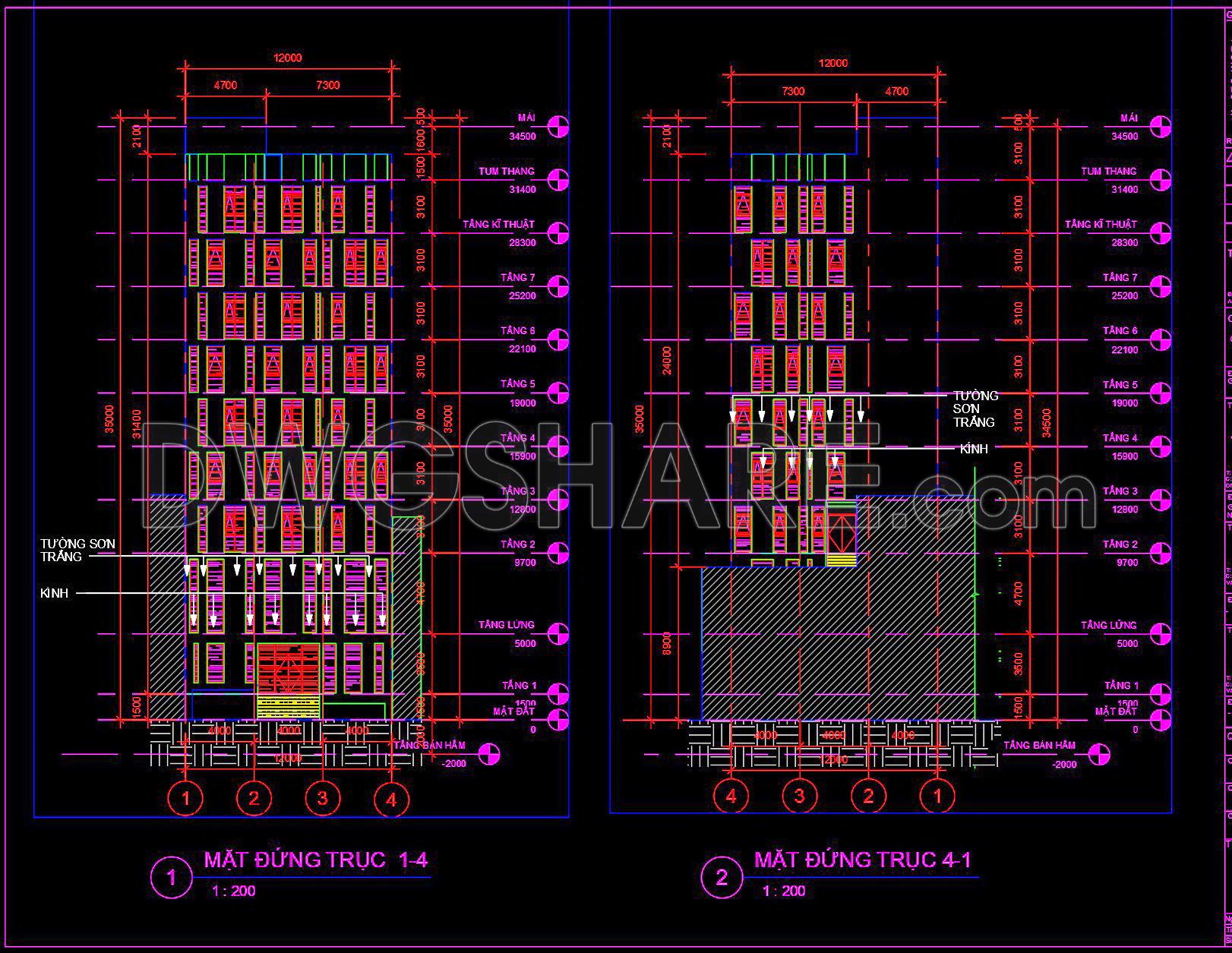

This design documentation includes the following drawings:

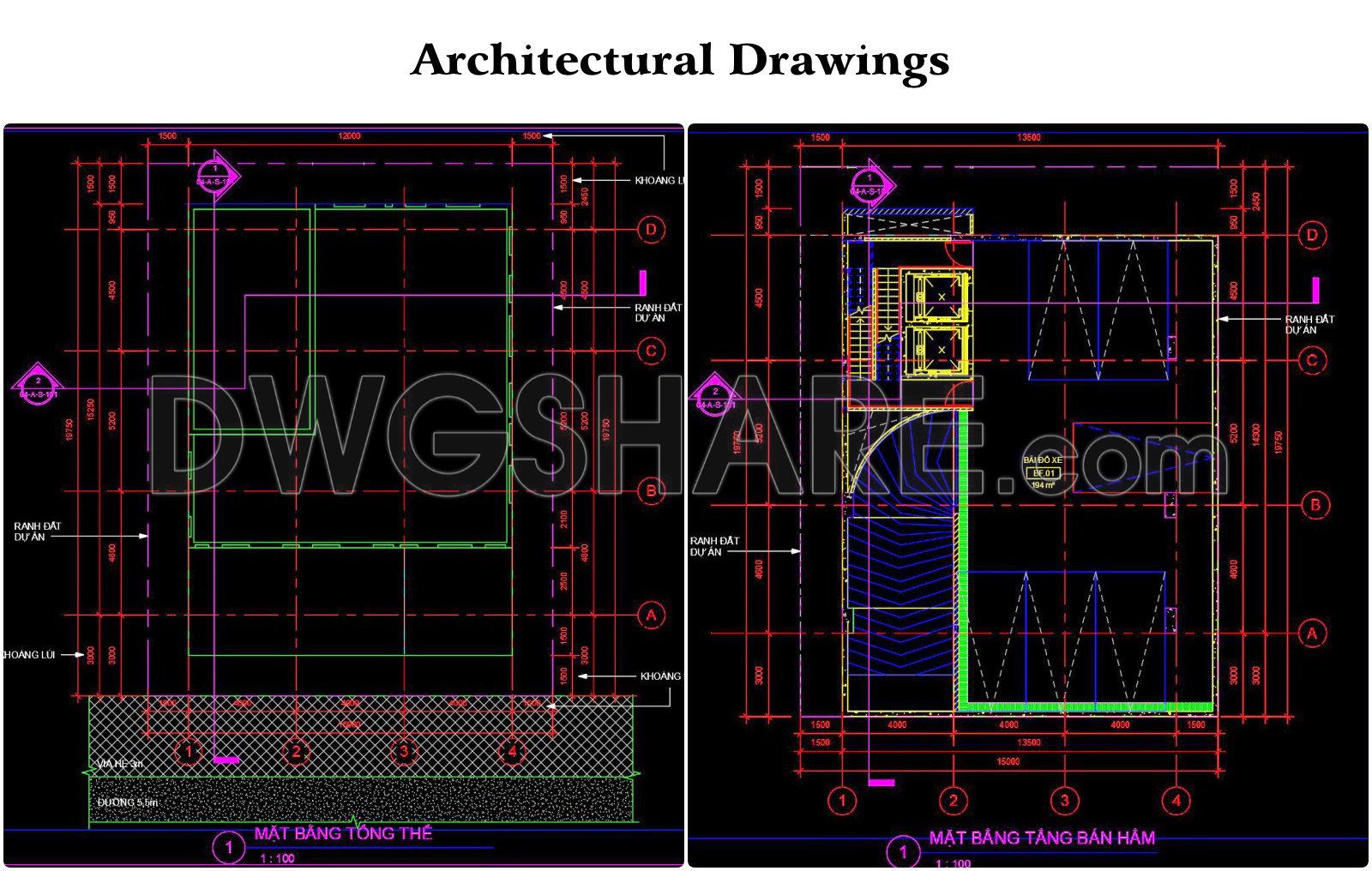

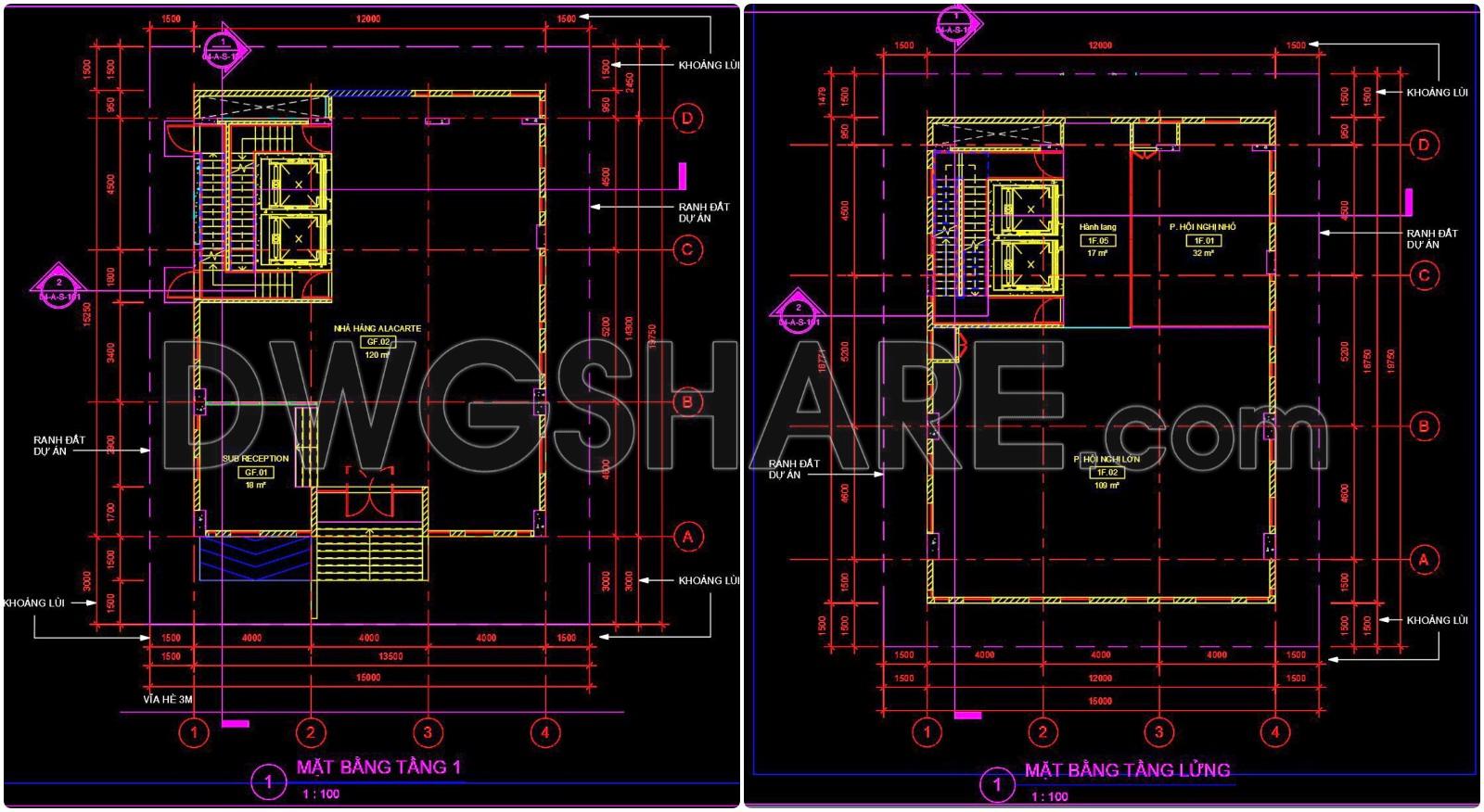

- Architectural design drawings

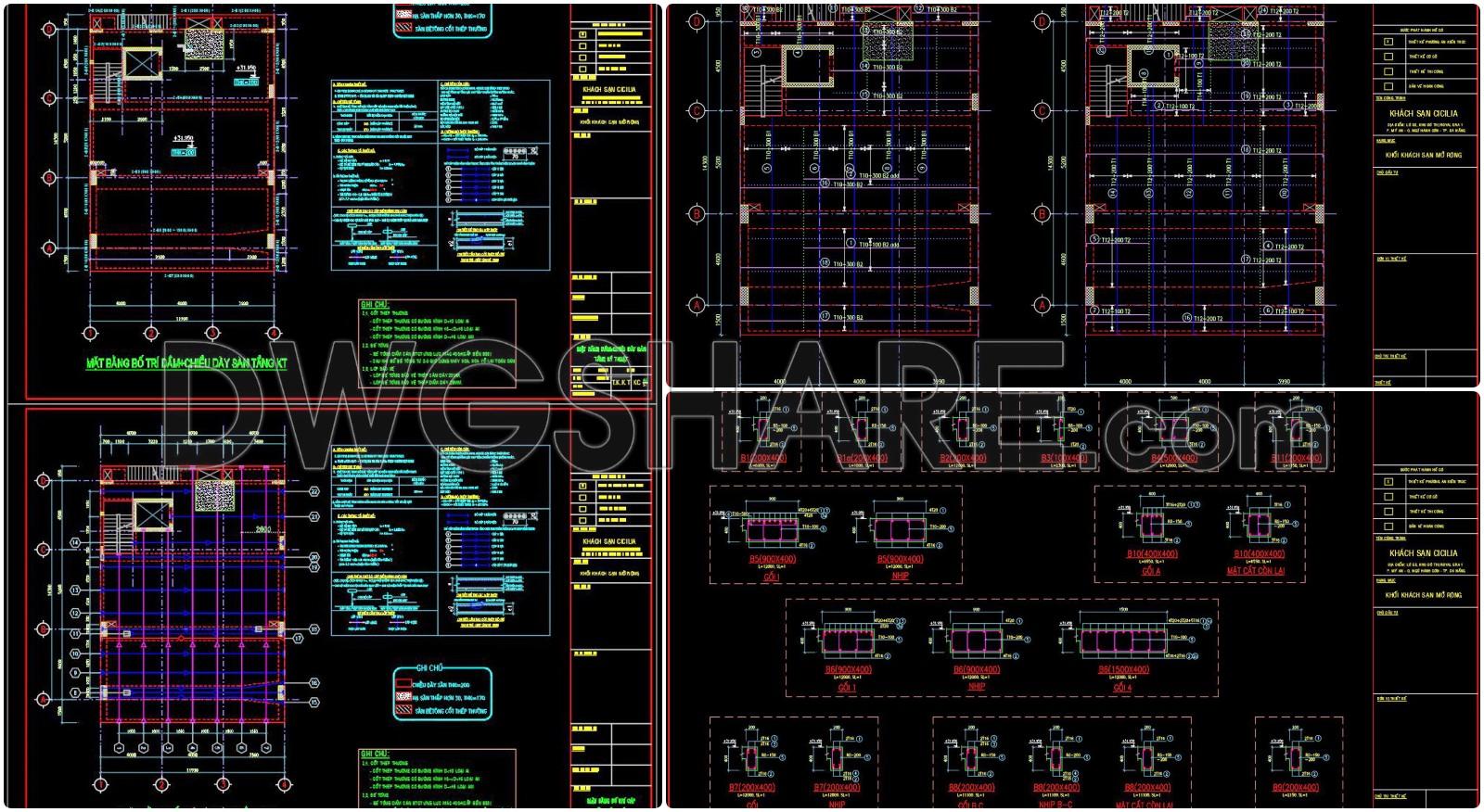

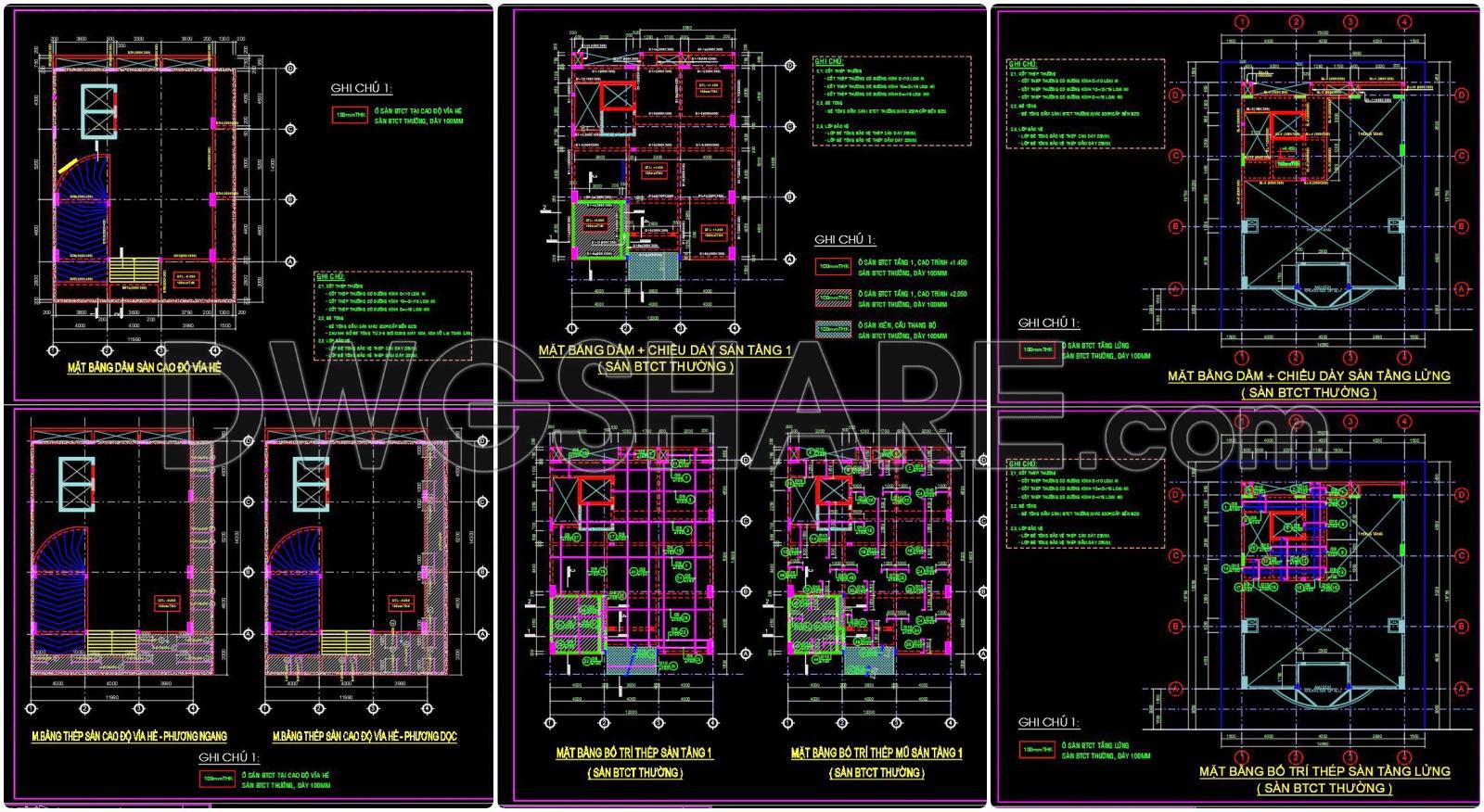

- Structural design drawings










If you find our work useful, your support would mean a lot and help us grow even better.DONATE
