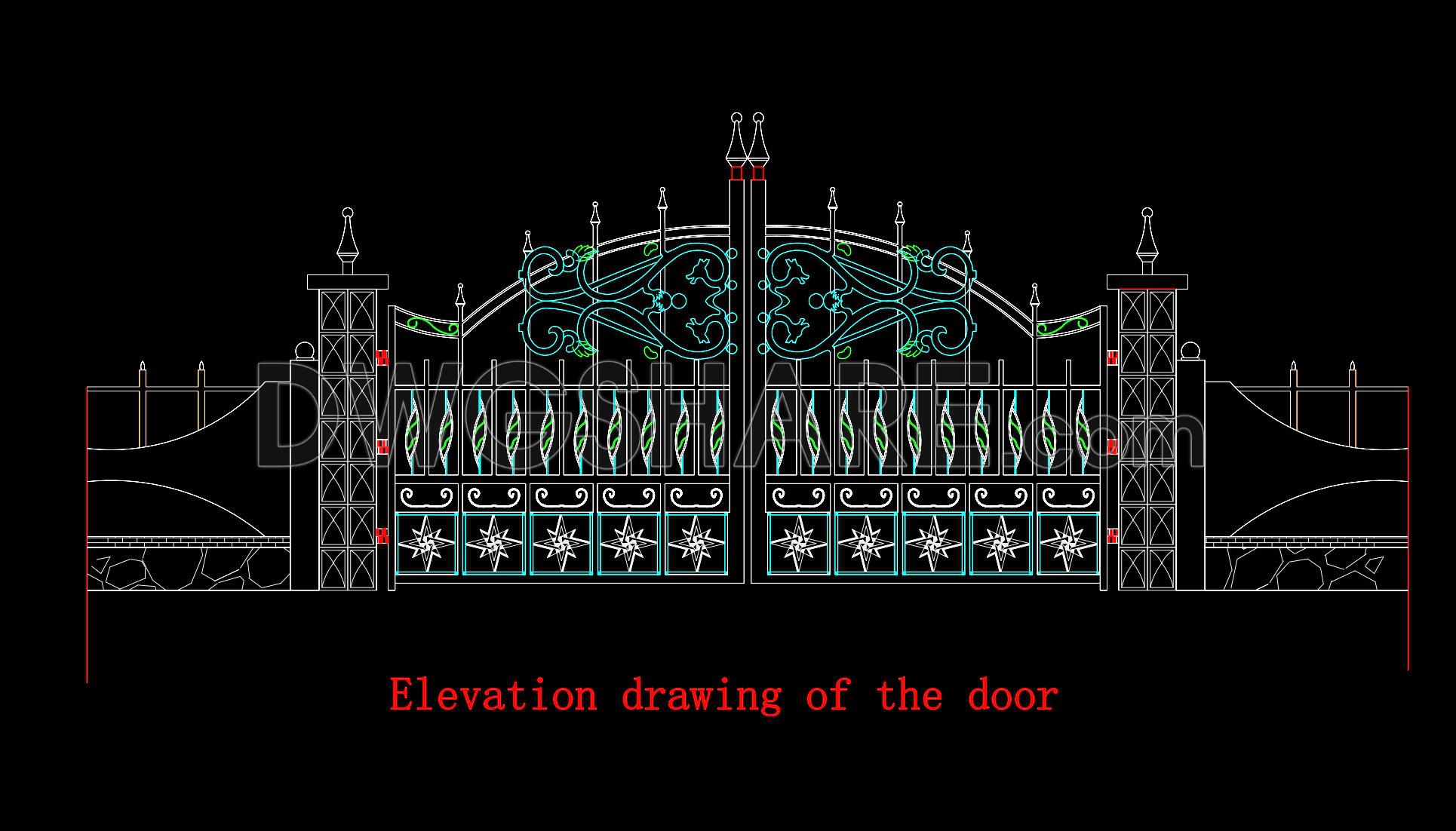

The luxury decorative iron gate CAD design for villas offers a detailed elevation drawing that showcases the elegance and craftsmanship of high-end architectural metalwork. This type of drawing is crucial for architects and designers as it depicts the intricate details and patterns that make the gate both a functional and decorative element for upscale villas.

Elevation drawings are essential in architecture as they provide a comprehensive view of the facade of a structure. In this case, the elevation focuses on the ornate features of the gate, highlighting its symmetrical design and intricate, swirling motifs. These components are not just aesthetic; they also emphasize the structural integrity and functionality of the gate, ensuring it serves its purpose both decoratively and as part of the villa’s security system.

Key elements visible in this CAD drawing include:

Vertical and horizontal bars that form the main structure of the gate
Elaborate decorative motifs that enhance its luxury appearance
Supporting columns on either side for additional stability and architectural interest
Level markers and dimensions ensuring precise construction and installation

These drawings are indispensable tools for professionals in both the design and construction phases. For architects, they provide a detailed reference for refining design concepts and ensuring all aesthetic and functional requirements are met. Interior designers may also consult these elevations to ensure cohesive style integration with other elements of the villa.

For construction teams, these CAD files offer a blueprint that ensures the gate’s features are accurately realized during fabrication and installation. Moreover, the high degree of technical accuracy inherent in CAD designs allows for modifications and adaptation as required, reducing potential errors and optimizing costs.

The availability of these CAD DWG files for free download significantly enhances their practical value. They serve as excellent resources for design reference, academic study, and further development of technical drawings. By providing these detailed, high-quality designs that are easy to modify and apply in AutoCAD, professionals can ensure seamless coordination between design intentions and on-site execution.

I also recommend downloading other Houses CAD drawings for your project reference.

• File format: .DWG
• Size: 290 KB
• Source: DWGshare
• AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
