140. Detailed Tufted Ottoman Seat AutoCAD Drawing with Plan and Elevation Views
The detailed tufted ottoman seat AutoCAD drawing represents a precise and comprehensive depiction of a functional furniture piece, essential for both architectural and interior design professionals. This set of CAD drawings includes both plan and elevation views, offering a well-rounded understanding of the ottoman’s design and construction.

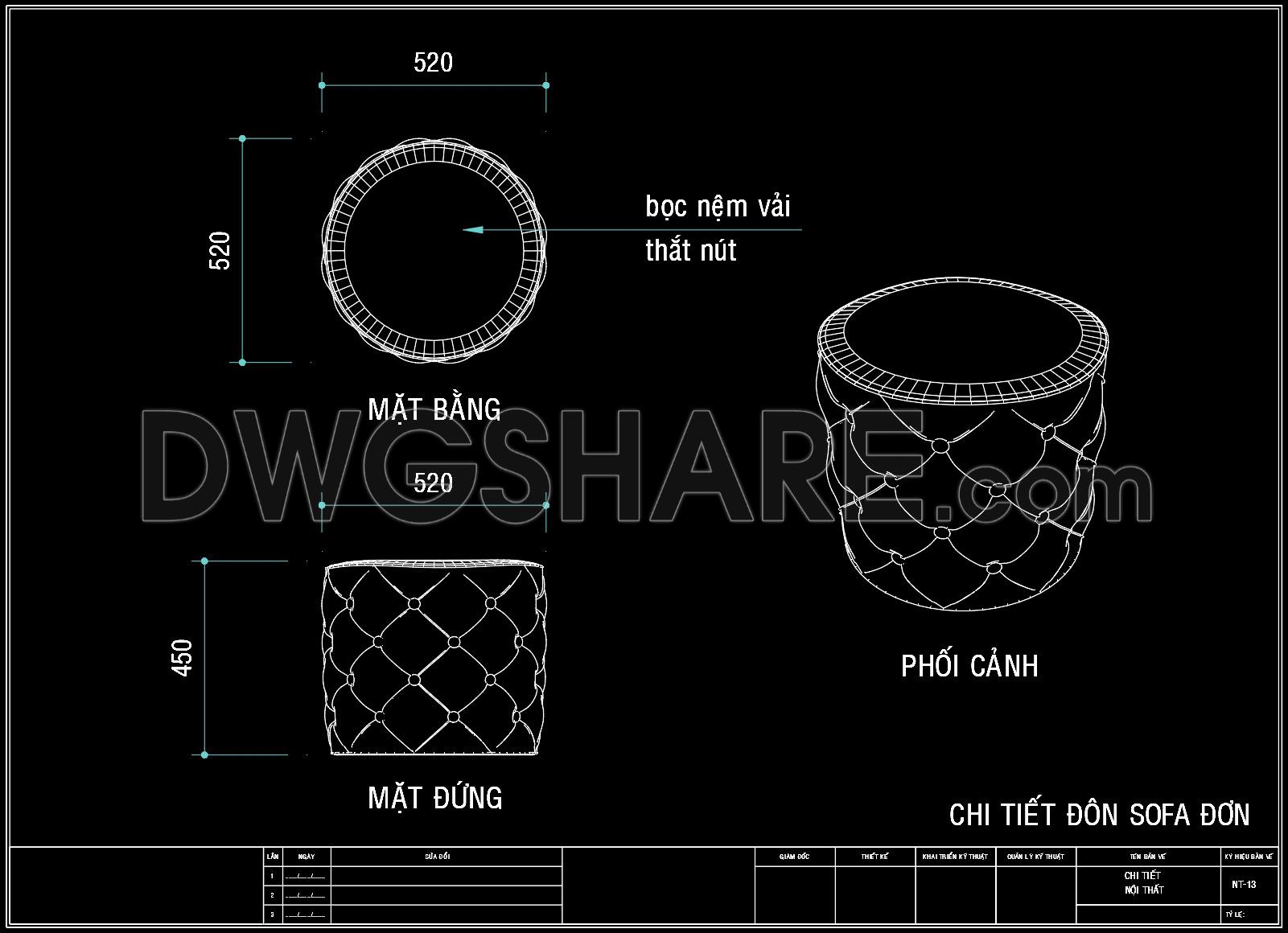

At the forefront, the furniture drawing showcases three key views: the top plan view, an elevation, and a perspective. Each of these views is meticulously detailed to aid in the visualization and fabrication process.
The plan view illustrates the circular top of the ottoman, providing essential dimensions of 520 mm in diameter. This aspect ensures that designers and architects can appreciate the scale of the piece in relation to other elements within a room.
The elevation view presents the height of the ottoman at 450 mm, capturing the plush tufted detailing that is a prominent feature of this design. This view is particularly beneficial for understanding the vertical proportions and the tufting pattern, which adds a layer of sophistication and complexity to the overall design.
Additionally, the perspective drawing delivers a more three-dimensional insight, helping to convey the finished look and the tactile quality of the fabric-covered buttons detailed in the drawing.
These CAD drawings are not merely static images; they serve as a dynamic tool for a variety of professionals. For architects, they offer a crucial reference during the design development phase, enabling the coordination of space planning and ensuring the ottoman integrates seamlessly within a broader architectural context. Interior designers benefit from these drawings when specifying detailed furniture components and preparing technical details for fabrication. Construction teams can use them as a vital reference, ensuring that the built piece aligns with the designer’s vision, thus enhancing coordination and minimizing potential errors.
The technical advantage of these CAD drawings lies in their precision and adaptability. Being created in AutoCAD, they offer high technical accuracy and are easily modifiable, allowing for seamless adjustments during different stages of a project. This adaptability contributes to improved coordination between design and construction teams, promoting efficiency and reducing costs.
Moreover, the availability of these CAD DWG files as free resources makes them an invaluable reference for design research and study. They provide a reliable base for developing further technical drawings, aiding both seasoned professionals and students in the field.
I also recommend downloading other Cad Details Drawings for your project reference.
- File format: .DWG
- Size: 491 KB
- Source: DWGshare
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
