21. Free Download 5th Floor Layout CAD Drawing – Multi-Function Performance Hall Building

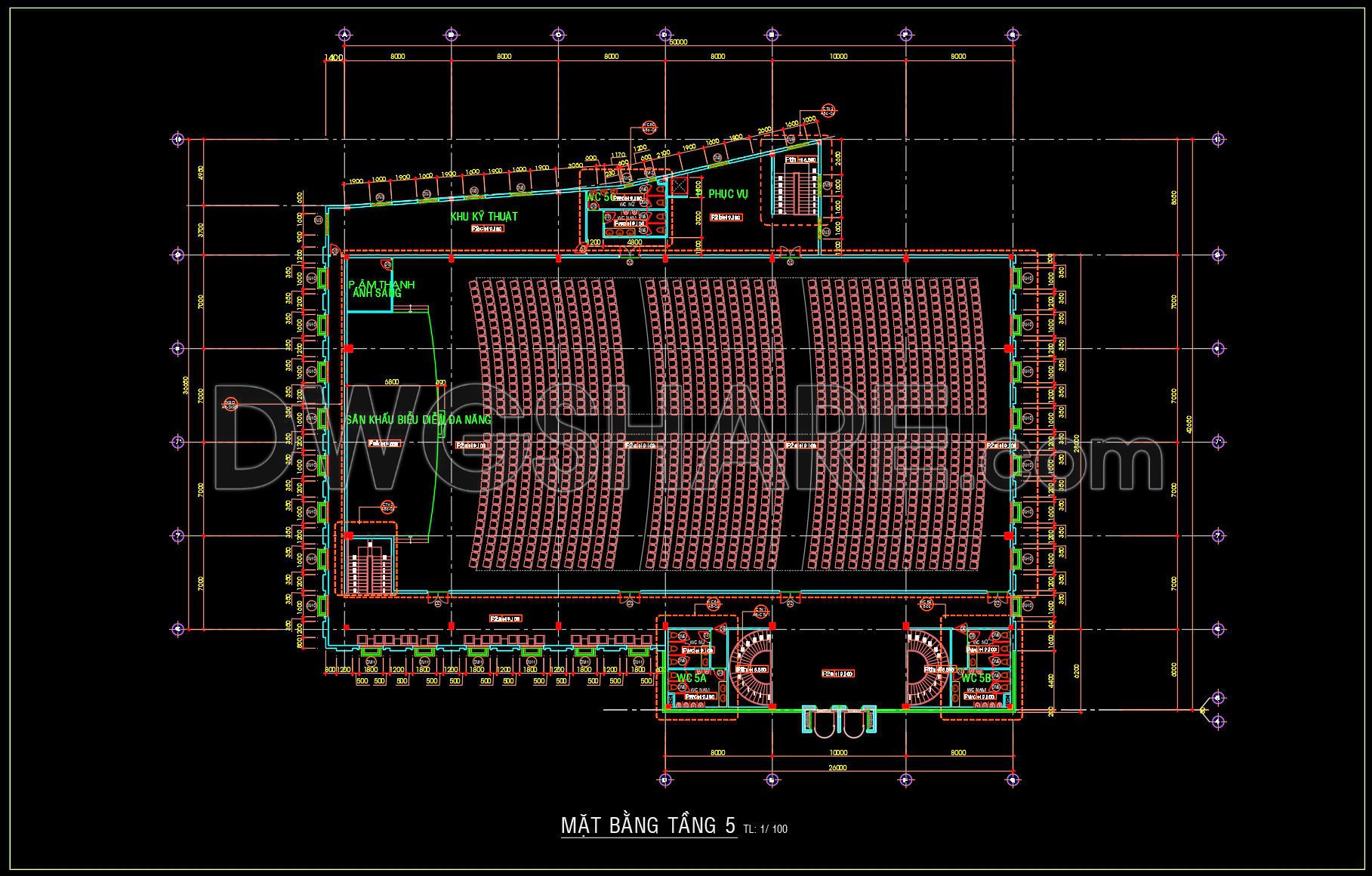

This CAD drawing shows the 5th-floor layout of a multifunctional auditorium building, designed with a clear and efficient organization. It includes a large seating hall, performance stage, lighting and sound control rooms, and service and restroom areas located at both ends of the structure. The seating arrangement follows a curved layout, ensuring optimal visibility and acoustics. Drawn at a 1/100 scale, the plan provides detailed dimensions, wall structures, and internal circulation systems throughout the floor.
I also recommend downloading other Cinema and Theater CAD drawings for your project reference.
- File format: .DWG
- Size: 280 KB
- Source: DWGshare
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
