296. CAD design drawings for a 3-story townhouse with dimensions of 5m x 15m
The functional layout of this 3-storey house design is as follows:
- First floor: 1 living room, 1 kitchen and dining area
- Second floor: 2 bedrooms, 1 reading room, and 1 shared bathroom
- Third floor: 2 bedrooms, 1 worship room, and 1 shared bathroom

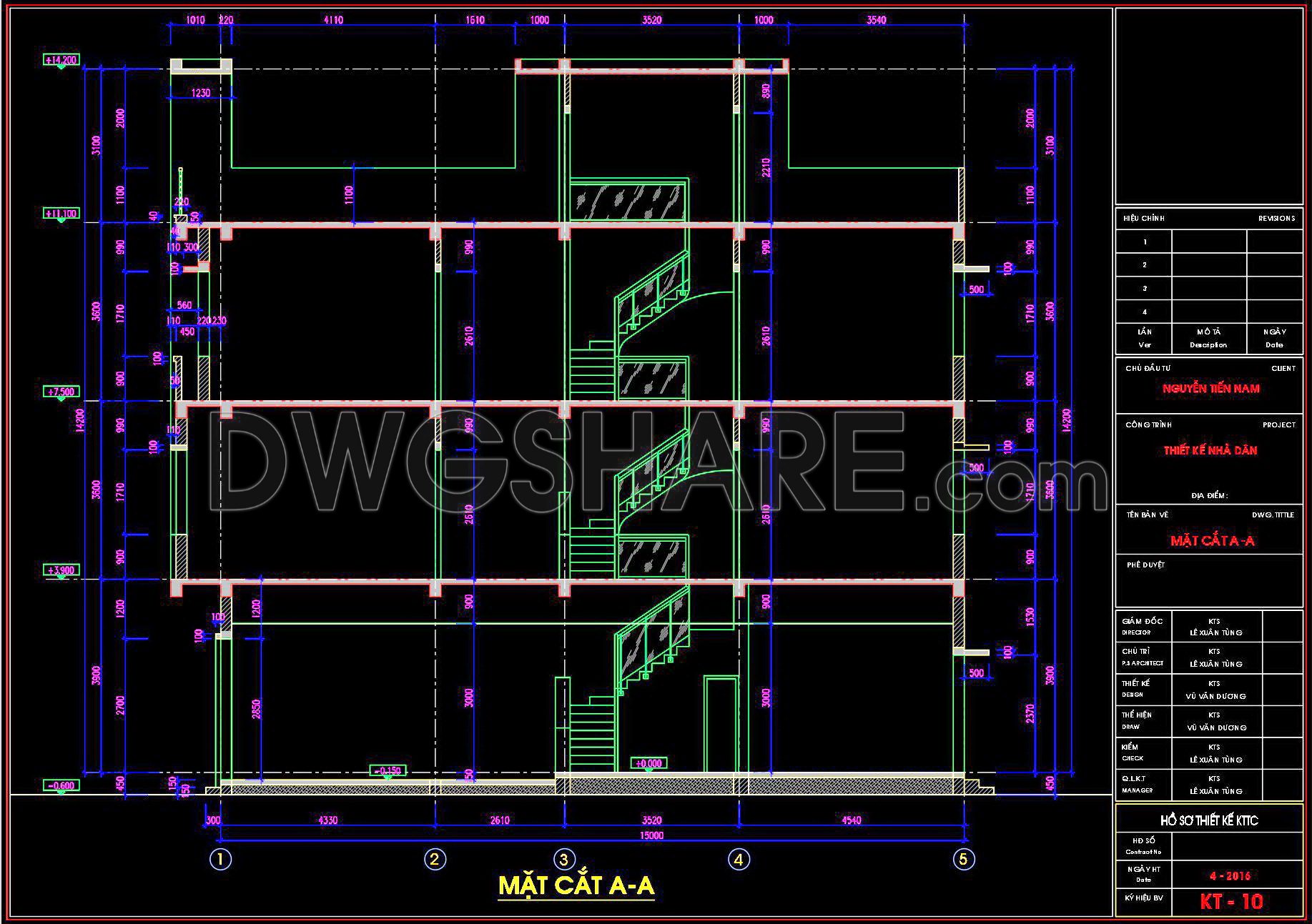

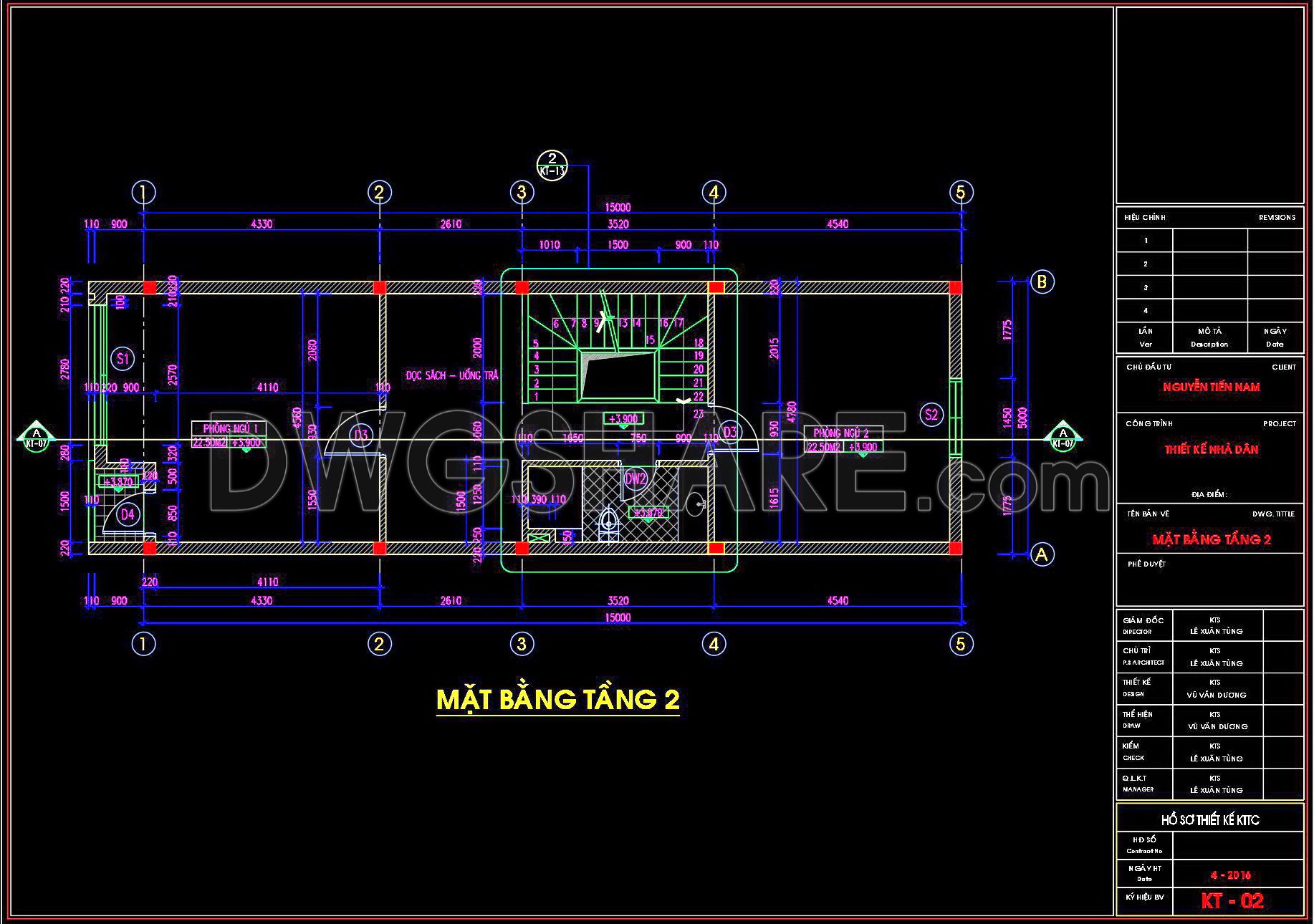

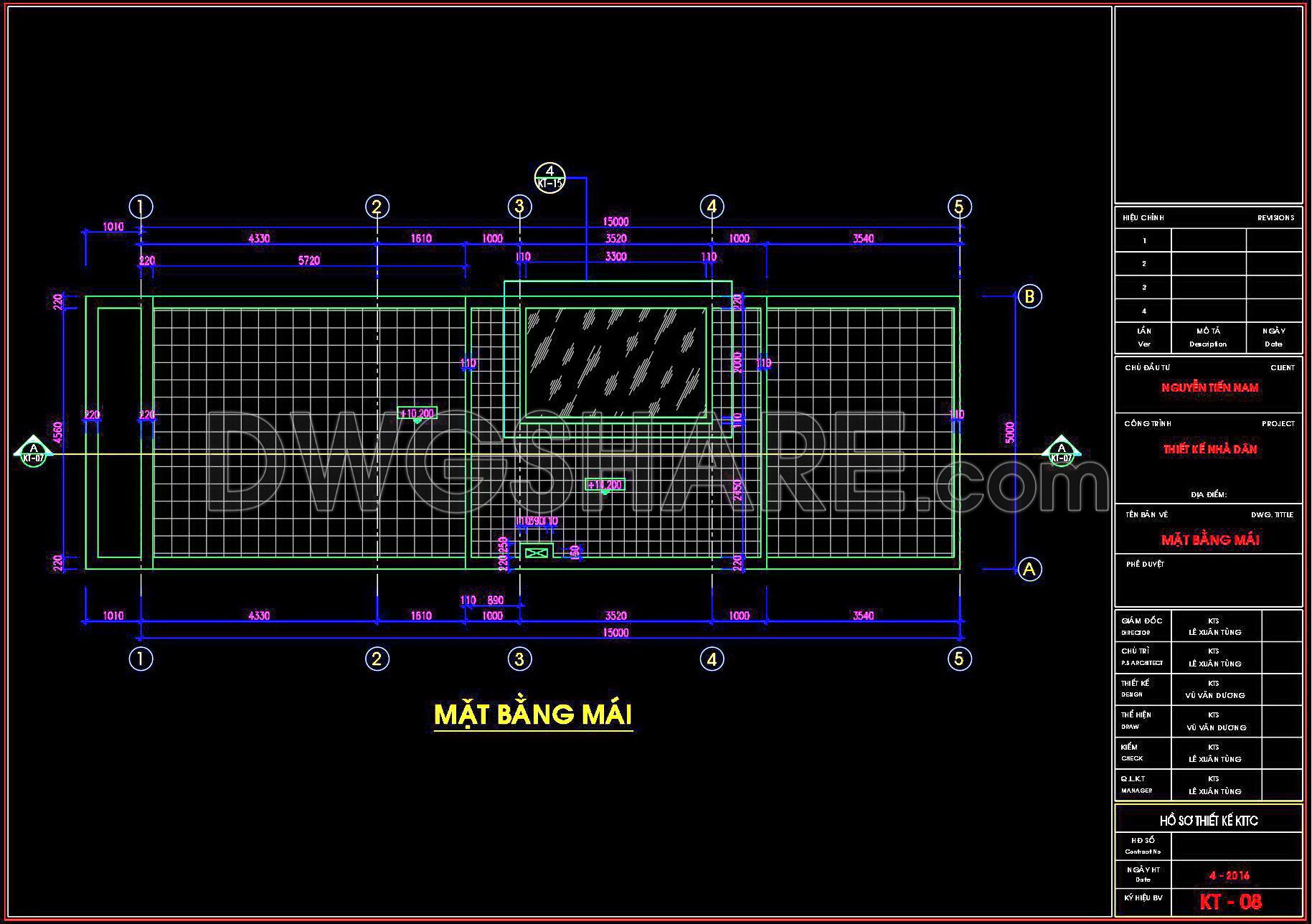

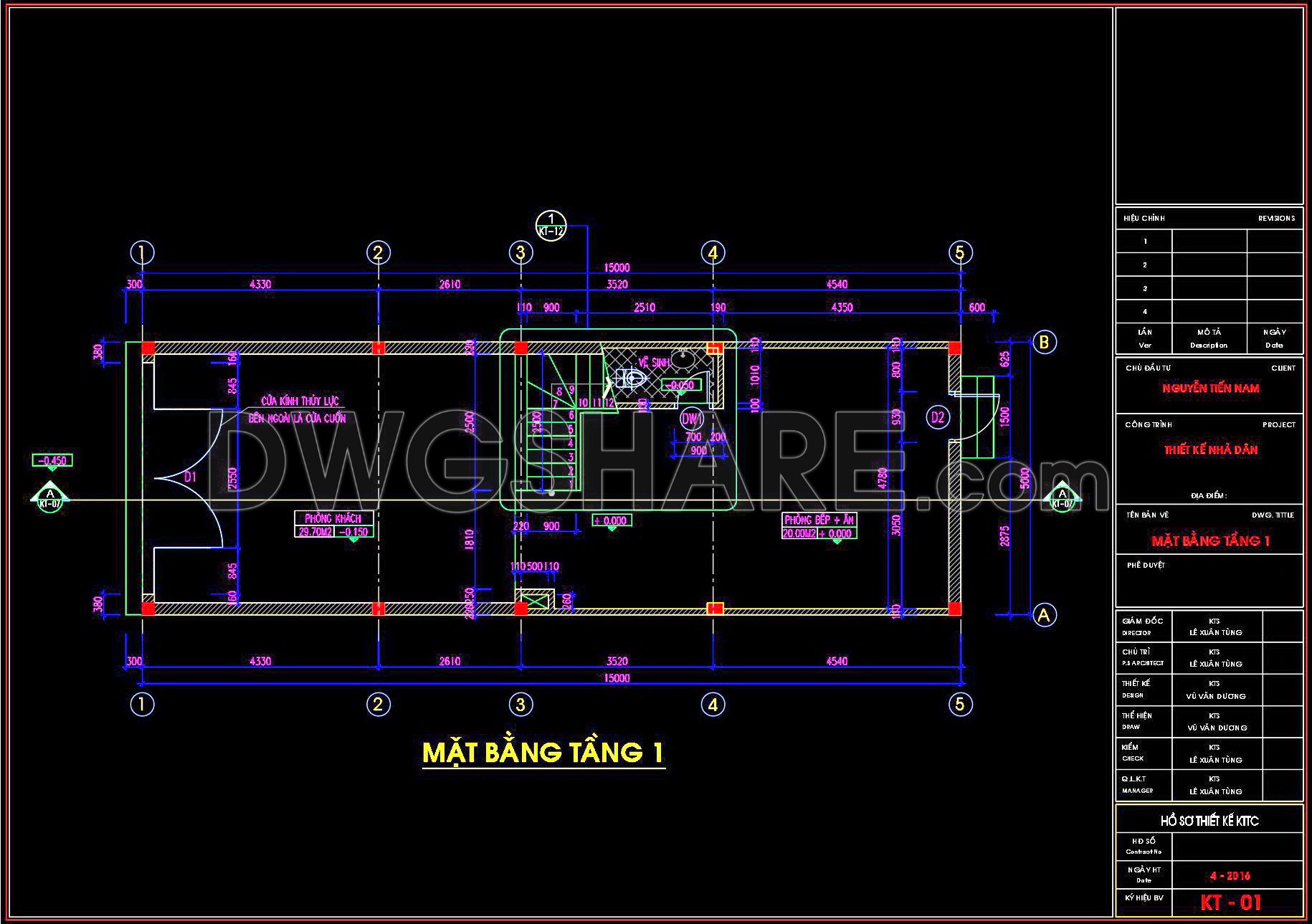

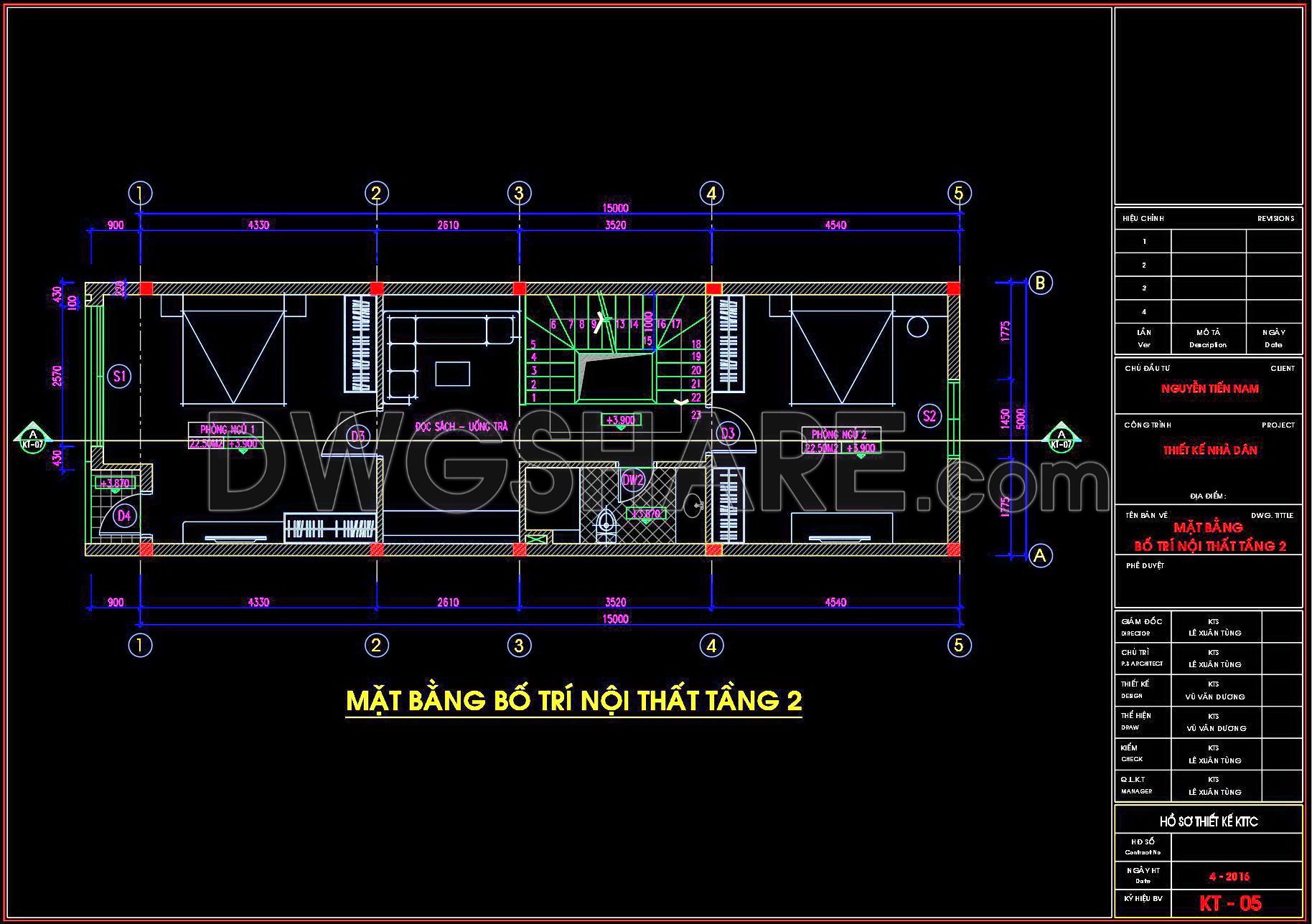

This drawing includes the following plans: floor plan, elevation, and section of the building.
Feel free to view and download the entire CAD file of this townhouse for reference.
Additionally, you can download more house design drawings here
- File format: .DWG
- Size: 455 KB
- Source: Collect
- AutoCAD platform 2018 and later versions. For downloading files there is no need to go through the registration process
