1. The way to call Matchprop command in AutoCAD

Enter from keyboard Select from Menu Icon
MATCH PROPERTIES (MA) Modify\ Match Properties

2. Meaning of Matchprop command in Autocad

MATCH PROPERTIES command is to assign the properties of the original selected object for the next selected objects.

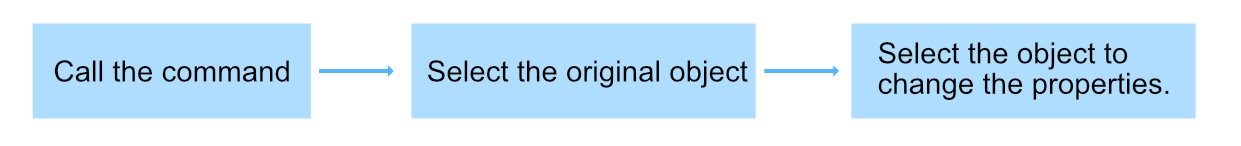

3. Diagram for carrying out the command.

4. Explain the command statement.

5. For example.

Assign the properties of rectangle objet for circle object.
Command: MATCHPROP (MA)¿.
Select source object: Click to select rectangle object.

Current active settings: Color Layer Ltype Ltscale Lineweight Thickness
PlotStyle Text Dim Hatch Polyline Viewport Table

Select destination object(s) or [Settings]: Select the circle object to change the properties (Picture XI – 11b).

Select destination object(s) or [Settings]: ¿. Complete the command.

Good luck!

Thanks for reading!!!
